Buy Berger & Schröter 48252 ISO11446 Trailertester ISO11446 Lighting tester 3.6 V

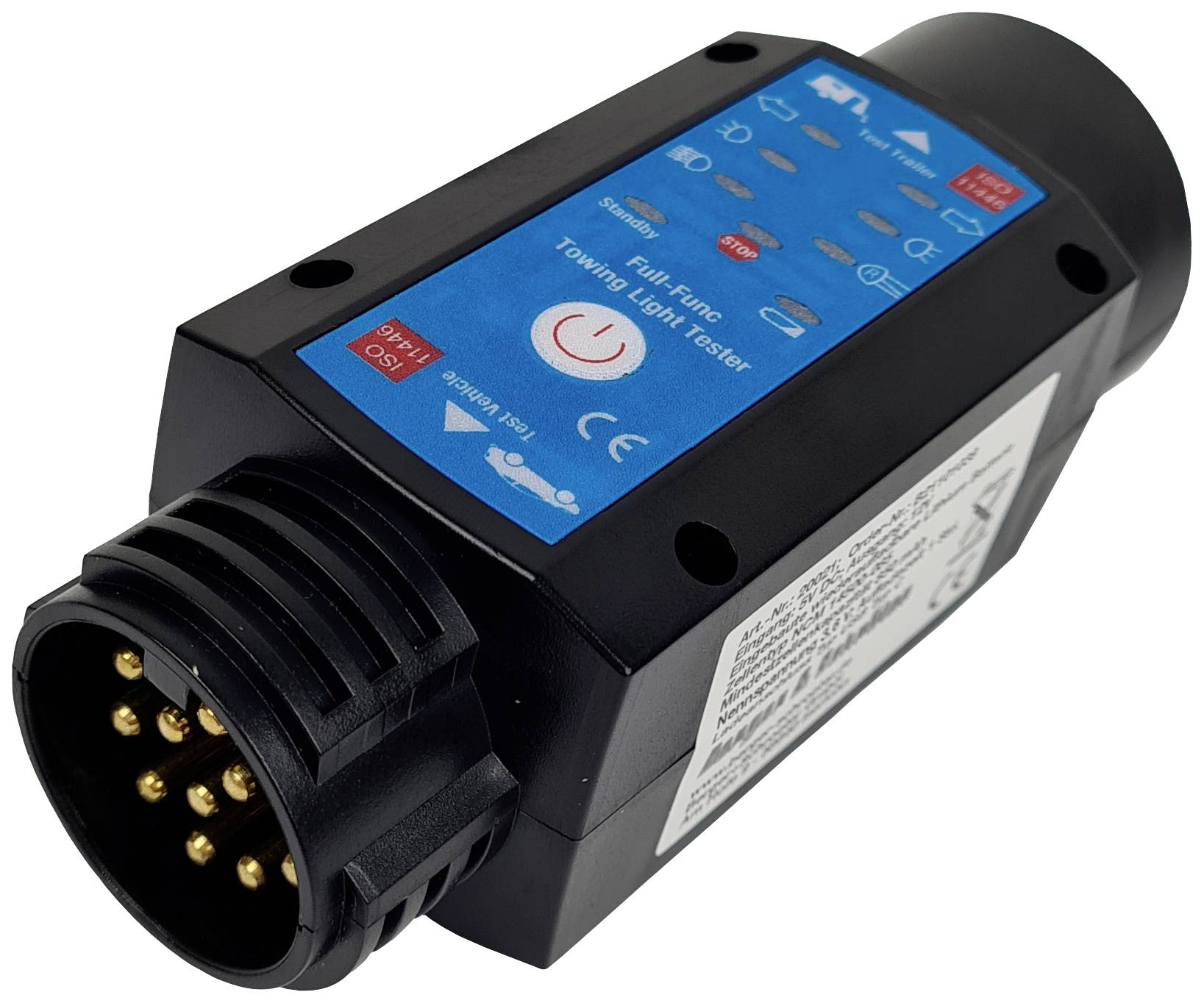

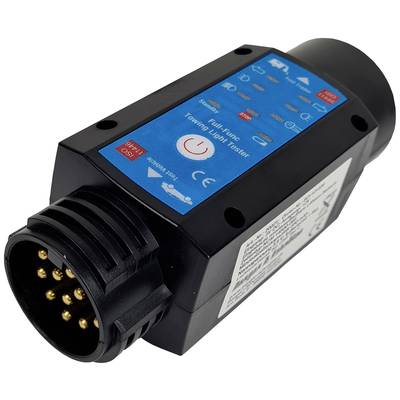

A black test device with a blue front panel and multiple connection pins is used for checking trailer lights.

A black electronic device with a blue control panel and multiple ports, possibly an electrical adapter.

A black adapter with multiple round connectors and blue labelling. Marked with 'Test Vehicle End'.

Black electronic device with blue control panel and open cover. Contains a USB-C port, suitable for technical applications.

An electrical charging plug with illuminated indicator lights is mounted on a metallic surface.

Vehicle number plate from Germany with a blue EU strip and white background. An electronic device is mounted at the bottom of the number plate.

Blue test device for trailer lighting with multiple buttons and an on/off switch. Display for various lights on the left.

A blue vehicle display panel with symbols for car lamp, indicator, lights, fog, and brakes. Below it reads 'Test Vehicle End'.

1/8

Fast track dispatch on Wed, 30 Sep

46 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 30.24 / piece)

€ 30.24

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

LED trailer tester

Tests important lightsWide compatibilityBattery (850 mAh)Charge via USB-C.

Technical specifications

Product type: Lighting tester

Connector (trailer): 13-pin plug

Trailer: Car
HGV
Truck

Features: Truck engine and trailer
Fault simulation

Connector (vehicle): 13-pin socket

Vehicle voltage: 3.6 V

Width: 130 mm

Height: 47 mm

Length: 55 mm

Power supply (LOV): via USB

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2620152 Berger & Schröter 48252 ISO11446 Trailertester ISO11446 Lighting tester 3.6 V

Description

This LED testing device tests all the lighting functions important in traffic on the vehicle trailer sockets and trailer plugs with ISO11446. Two test displays - one on the top and one on the bottom are well visible. The tester can be connected directly to the trailer. You can also check the functionality of the electrical outlet on the vehicle (brake, of course, only when the vehicle is operated). Simple and fast- one side can be connected with the 13-pin trailer plug and the other end with the 13-pin socket of the vehicle. This tester is easy to use and an error in the cabling of tow vehicles and trailers is indicated immediately. Broad compatibility--For all types of trailers and vehicles in Europe. No batteries are required and the internal 3.6 V rechargeable battery (850mAh) can be charged via USB-C. Test functions- indicator left / right, brake light, rear/ tail light left / right, fog light

This text is machine translated.

Features

Tests all the lighting functions important from the traffic on the vehicle trailer sockets and trailer plugs with ISO11446The tester can be connected directly to the trailerThe electrical outlet on the vehicle can be checked for functionalityOne end can be connected with the 13-pin trailer plug and the other end with the 13-pin socket of the vehicle.Errors in the wiring of towing vehicles and trailers are indicated immediatelyBroad compatibility--For all types of trailers and vehicles in EuropeNo batteries are requiredThe internal 3.6 V battery (850mAh) can be charged via USB-C.
