Berger & Schröter Hoist 31593 Traction (rolling)=1 kg Powered by petrol enine
EAN:
Part number:
Item no:
Highlights & Details
Motor Spill Winds Kawasaki TJ35E
- Original Kawasaki Motor TJ-35E
- Theoretically endless rope possible
Technical specifications
- Product type
Hoist
- Fastening method
Strop
- Weight
9 kg
- Width
38 cm
- Height
30 cm
- Depth
30 cm
- Cable speed (with load)
6.7 m/min
- Cable speed (without load)
9,5 m/min
- Features
Powered by petrol enine
- Transmission ratio
220:1
- Traction (rolling)
1 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1429645 Berger & Schröter Hoist 31593 Traction (rolling)=1 kg Powered by petrol enine
Description

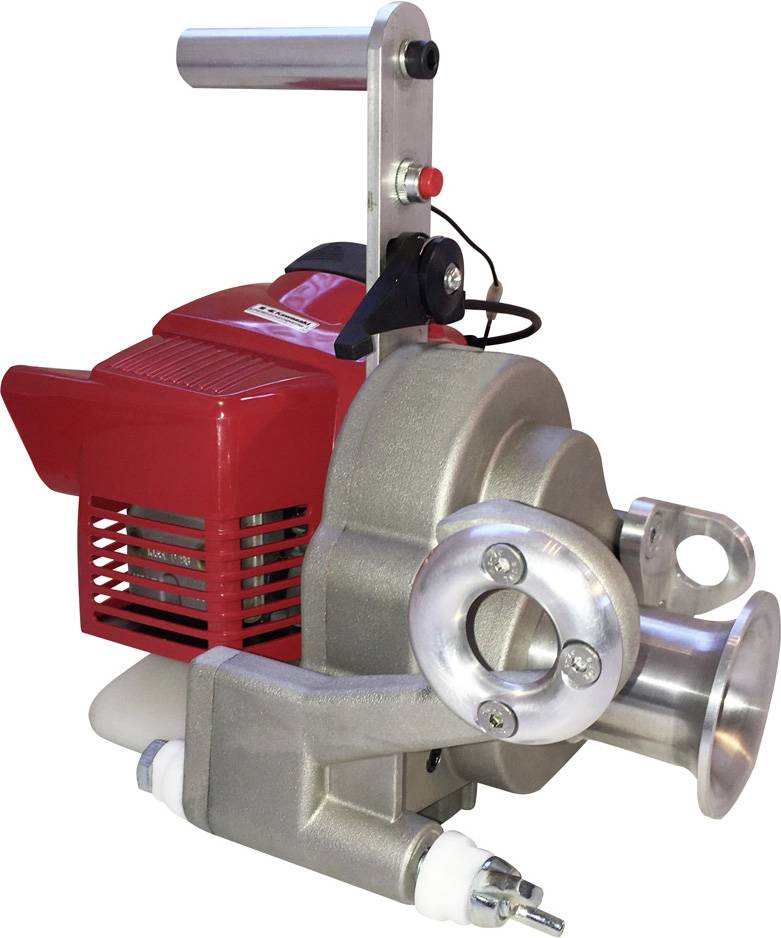

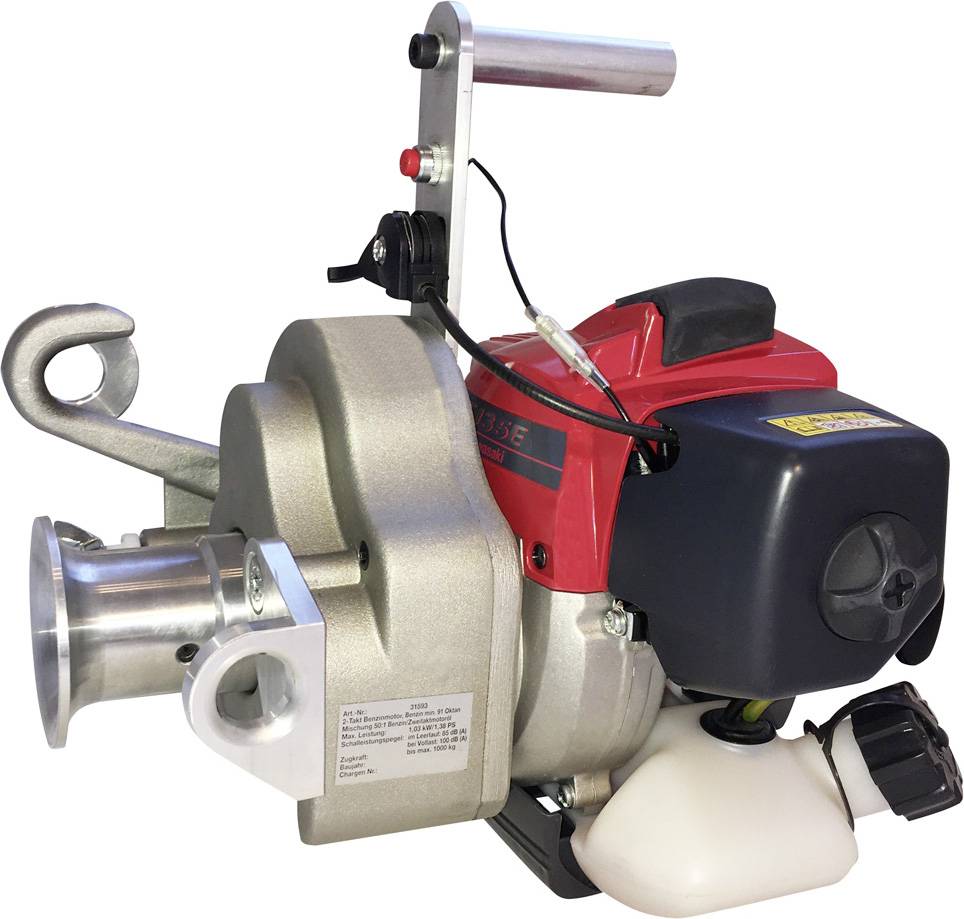

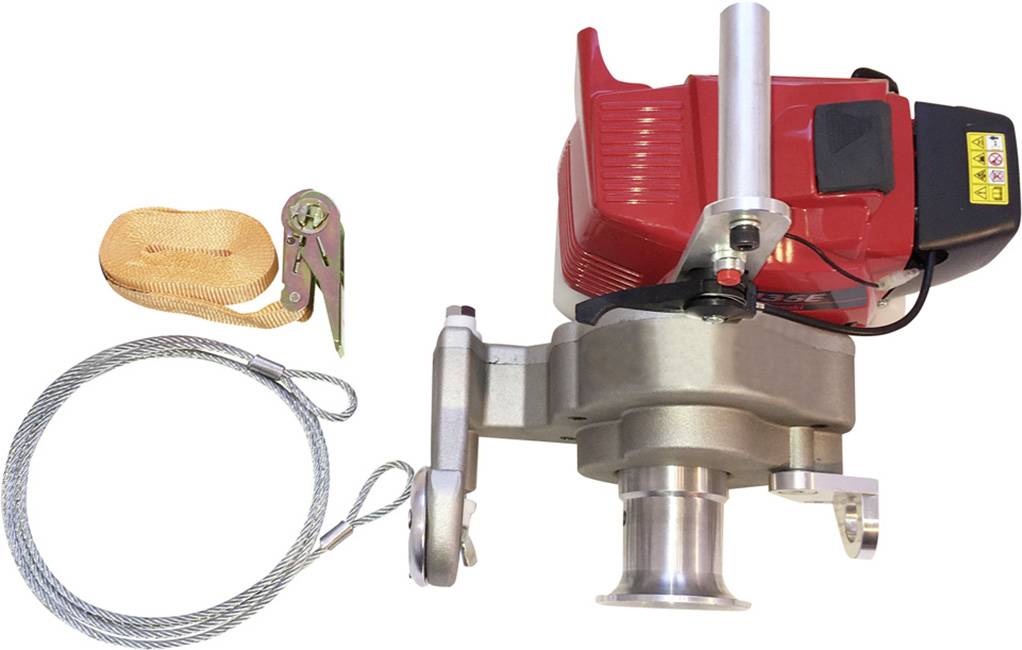

Lightweight and portable motor spill winch with original Kawasaki Motor TJ-35E. The spill winch is universally applicable and moves with a constant pulling force of up to 1000 kg everything such as, for example, boats, wood, vehicles and much more. With a pulley (not included) you can double the tensile force. A static Polyester rope with a rope thickness from 8 up to 10 mm and a breaking load of 2500 kg is required. The spill winds was developed to a rope to pull the rotating spill creates tension. With your hand control and perform the rope.
This text is machine translated.
This text is machine translated.
Features

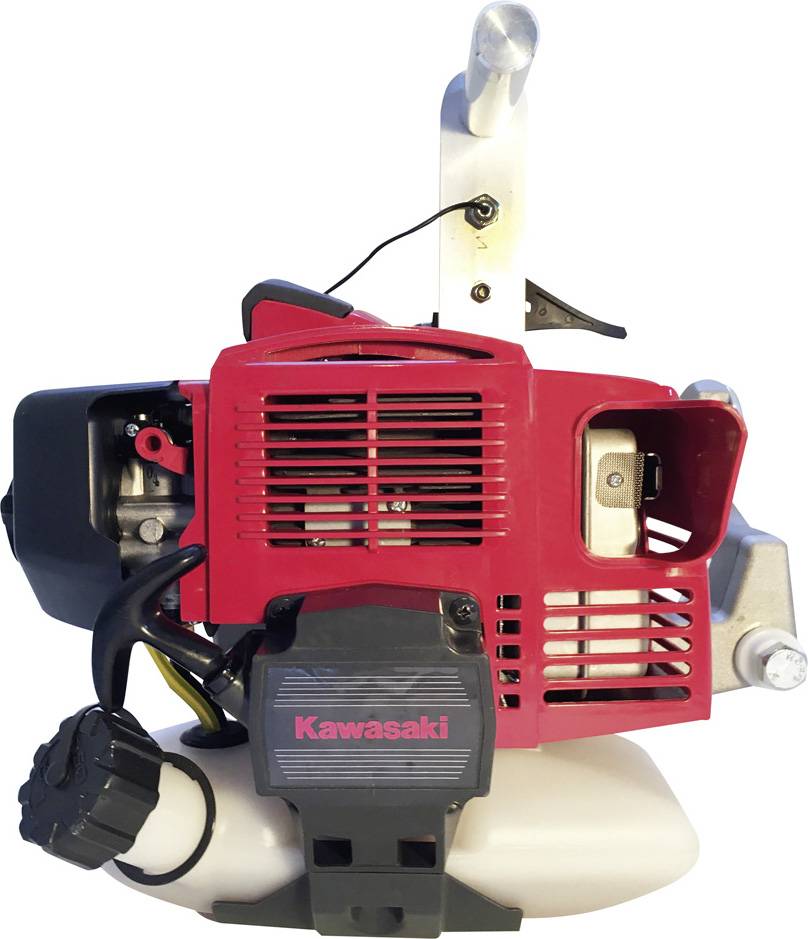

- Air-cooled Kawasaki 1 cylinder 2-stroke petrol engine with 35 cc and 1 kw (1.38 HP)
- Translation jammed altis 220:1
- Approx. Tank contents 0.7 l
- Torque 1.55 Nm at 5000 rpm
- Dimensions approx. 30 x 38 x 30 cm
- Pulling force of up to 1,000 kg
- Train speed 9.5 to 6.7 m/min.
System requirements
- Static Polyester rope with at least 8 mm, max. 10 mm rope strength and 2500 DaN breaking load!
