Buy Berger & Schröter Wildlife camera 20 MP Black LEDs Olive

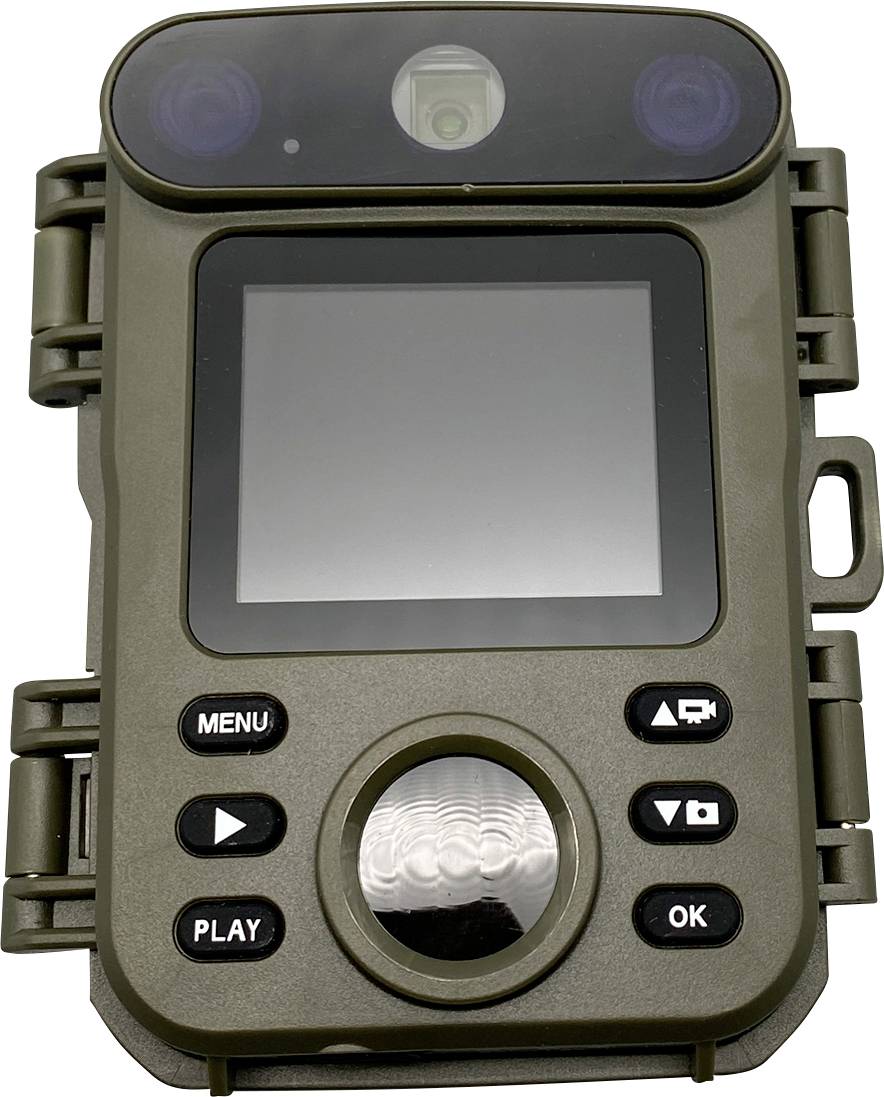

A handheld device with a screen, buttons labeled 'Menu', 'Play', 'OK', and camera lenses. Used for capturing and reviewing images.

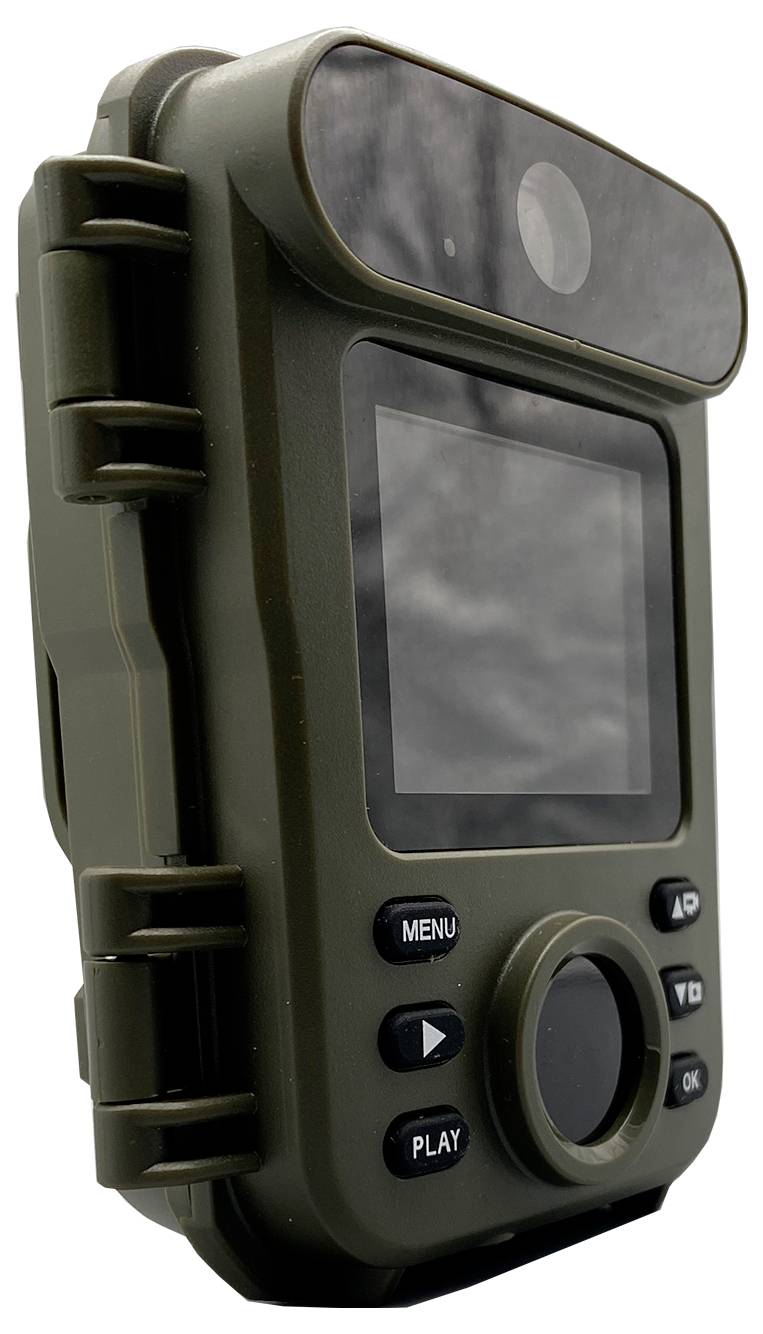

A compact, rugged wildlife trail camera with an LCD screen and control buttons for menu navigation and playback viewing.

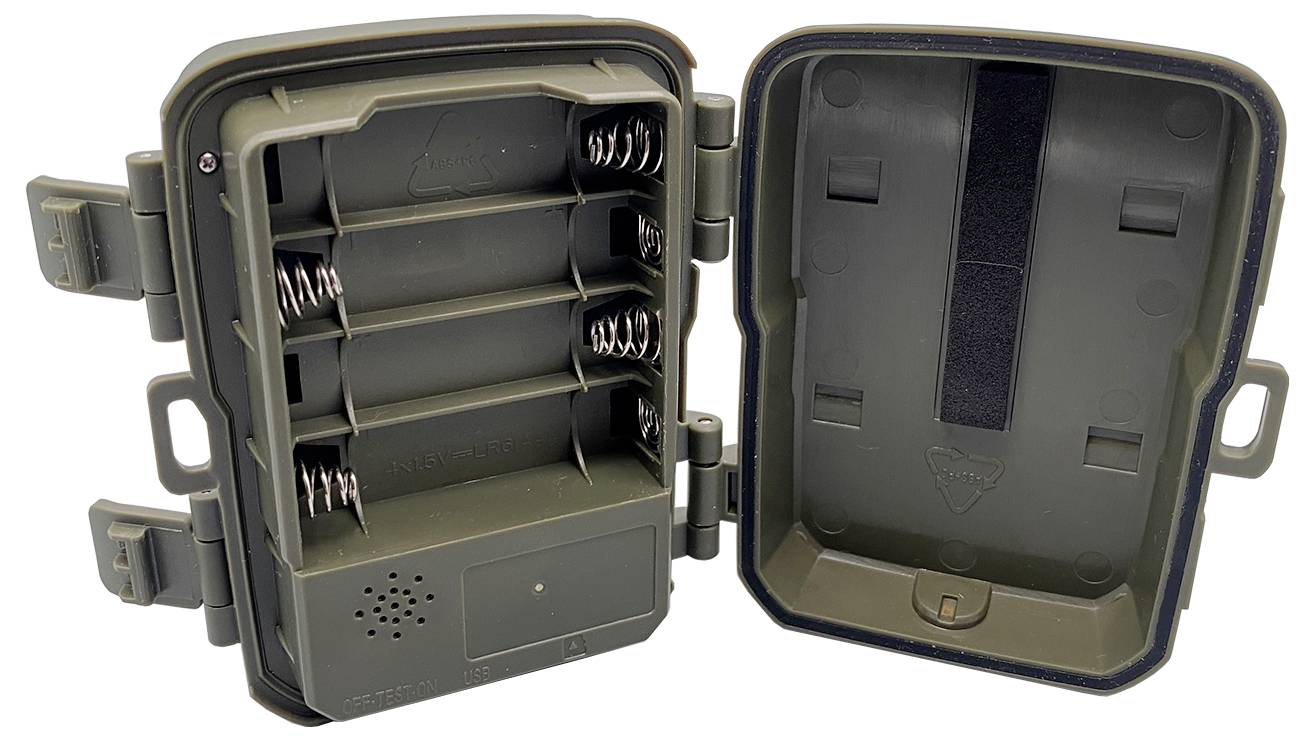

An open, olive-green plastic container with battery compartments and slots, likely for storing electronic components or batteries.

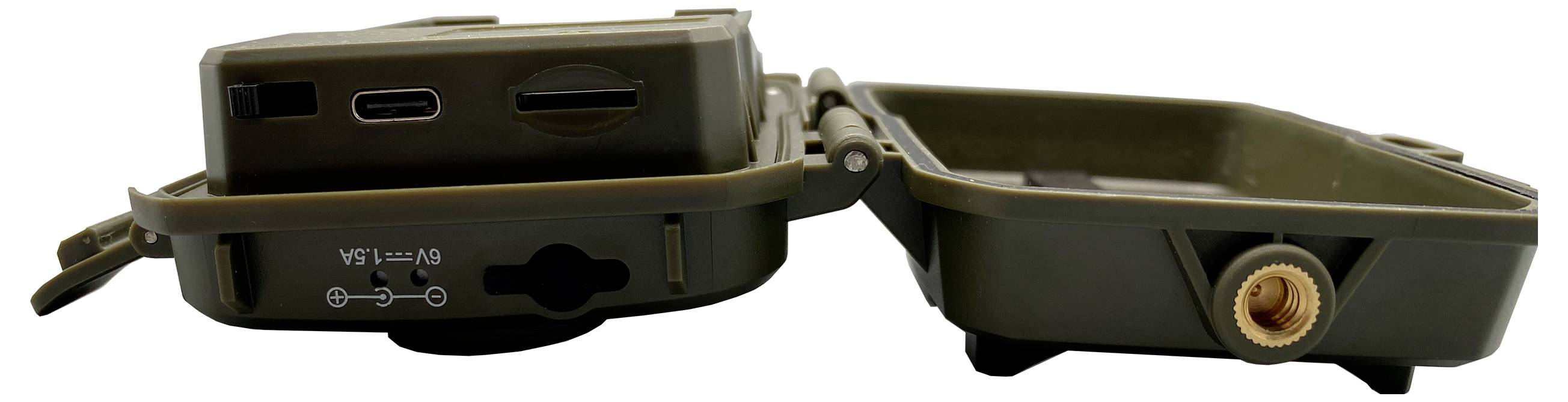

A military-green electronic device, open to show its USB port and battery compartment. The right section has a metallic threaded connector.

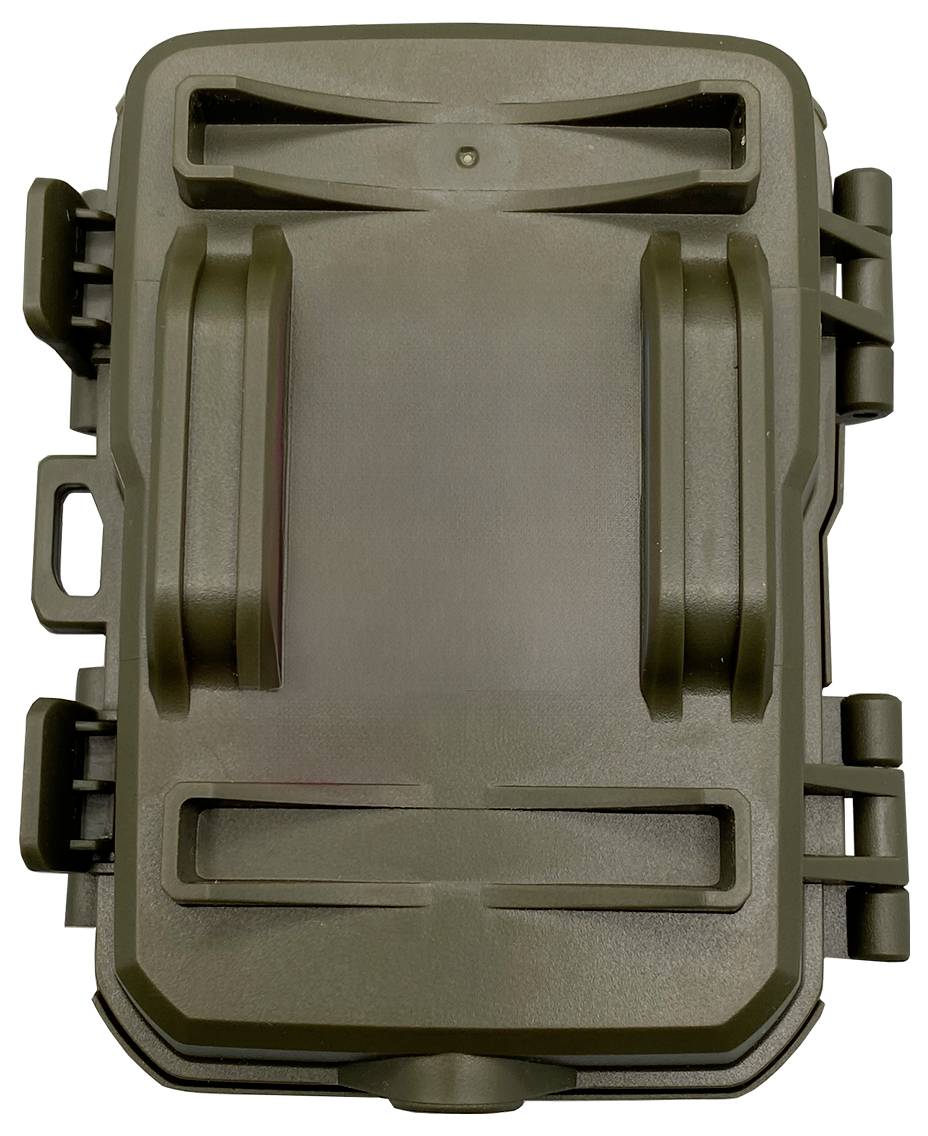

A dark green, rectangular plastic casing with a flat surface and multiple latch fasteners on the side, likely used for protective housing.

1/5

Unavailable

12 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Wildlife camera

Features: Black LEDs

Video resolution: 1280 x 960 Pixel
2048 x 1536 Pixel
2592 x 1944 Pixel
4000 x 3000 Pixel
4608 x 3456 Pixel

Resolution: 20 MP

Interfaces (input): Card reader
USB

Dim: (W x H) 746 mm x 43 mm

Flash range (max.): 15 m

Sensor resolution: 2 MP

Memory capacity: 512 GB

Supported memory cards: SD

Factory colour: Olive

Power supply: 6 V
AA rechargeable battery (4x), please order separately

Width: 746 mm

Height: 43 mm

: IP66

Weight: 156 g

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3451204 Berger & Schröter Wildlife camera 20 MP Black LEDs Olive

Description

1920x1080p/30fps video
Up to 15 m range of the IR flash
Trigger time approx. 0.2 seconds
Approx. 20 m triggering distance
Splashproof (IP protection class 66)

This text is machine translated.

Features

Specifications
Image sensor 2 megapixel
Still image size 20MP: 5200x 3900, Interpolated/ 16MP: 4608x3456 Interpolated/ 12MP(4000x 3000P) Interpolated/ 8MP (3264x2448P) Interpolated/ 5MP(2592x1944P) Interpolated/ 3MP(2048x1536P)/ 1MP(1280x960P)
Video clip 1920x1080/30ps;1280x720/30fps;848x480/30fps; 720x480/30fps; 640x480/30fps; 320x240/30fps
File format JPG/AVI
Lens angle f=3.62mm; F/NO2.2 FOV=60°, automatic IR filter
LCD-display 2.0" TFT 240x320 px
External memory (Class 6 and higher TF card, up to 512 GB, not included)
Operating keypad 6 keys
Number of IR lamps 2 (high power / 940 nm)
Range of IR-flash 15 m
Trip distance 20 m (below 25 °C at normal level)
40° PIR movement detector
0.2 second activation time (if using 4G TF card)
Trigger interval 5 sec - 60 mins. programmable
Recording numbers 1/2/3/10
Video length 3 sec - 10 mins. programmable
Effectiveness: 1 m - infinity, night time: 1.5 m - 18 m.
Camera + Video First take a photo, then record a video
Time stamp on/off; including serial number, temperature and moon phase
Time lapse on/off; time lapse programmable
Compressed Video TL Video Time Lapse 3 seconds ~ 24 hours
Continuous Recording On/Off (When On, the oldest files are overwritten)
Periodic recording time lapse 1 second ~ 24 hours
Device serial number 4 digits or 26 letters, self adjustable
Built-in microphone/speaker Yes
Automatic distinction of images Colour images in day/black/white night images
Automatic screen saver in 2 minutes if no keyboard is controlled
PC INTERFACE TYPE C USB2.0
Power 4xAA, external 6V power supply, at least 1.5A
Password protection 4-digit numbers
Splash proof and water-proof (IP protection class 66)
Operating temperature 20 °C to + 60 °C.
Storage temperature: -30°C to +70°C.
Dimensions and weight 104 x 74.6 x 43 mm and 132g (without batteries)

Scope of delivery

1x 20 MP wildlife camera
1x user manual
