Buy Berger & Schröter Winch 31765 Traction (rolling)=10.8 kg Cordless remote control

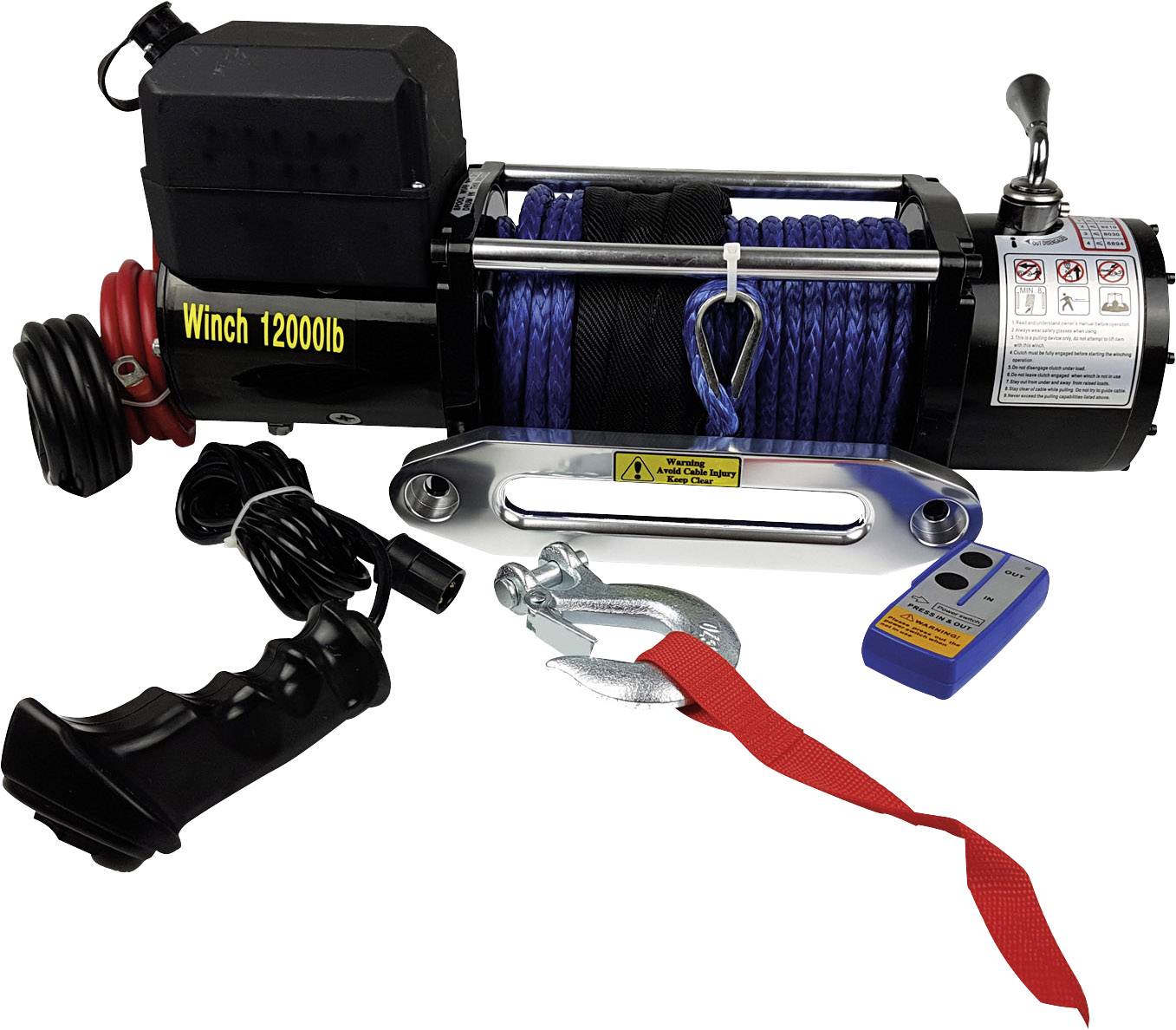

An electric winch with a blue rope, a hook, a remote control, and a warning notice. Capacity: 12,000 lb.

A steel wire rope forms a loop, which is overlaid with a diagonal, red brushstroke, making the rope appear crossed out.

A wire cable with a red X above it, potentially indicating a warning or prohibition.

1/4

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Winch 12V 10800 kg 26 m Synthetic rope

26 m Synthetic rope
Radio remote control
Cable remote control

Technical specifications

Power 4.8 KW, load consumption approx. 70A at start-up to 400 A at full load,

Product type: Winch

Fastening method: Fixed mount

Operating voltage: 12 V

Weight: 28 kg

Width: 57 cm

Height: 23 cm

Depth: 16 cm

Cable speed (with load): 1.7 m/min

Cable speed (without load): 4,7 m/min

Rope length: 26 m

Rope diameter: 10 mm

Features: Cordless remote control

Transmission ratio: 265:1

Traction (rolling): 10.8 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1665620 Berger & Schröter Winch 31765 Traction (rolling)=10.8 kg Cordless remote control

Description

12 V cable winch with Synthetic rope (HPPE), loads of up to 10.800 kg can be fitted with a pulley (not included) be easily transferred or drawn. Incl. 26 m long synthetic rope and hooks and 1 cable-window, operation via 3.5 m cable remote control or remote control, approx. 1,7m long battery connection cable, incl. Relay box, ratio of 265:1, Power 4.8 KW, load consumption approx. 70A at start-up to 400 A at full load, Dimensions approx: 57 x 23 x 16 cm, cable speed of 1.7 to 4.7 m/minute (without load 10 m/minute). Weight approx. 38 kg. Chrome / black color, with detailed assembly instructions. (High Performance Polyethylene, SK 75 fiber)

This text is machine translated.
