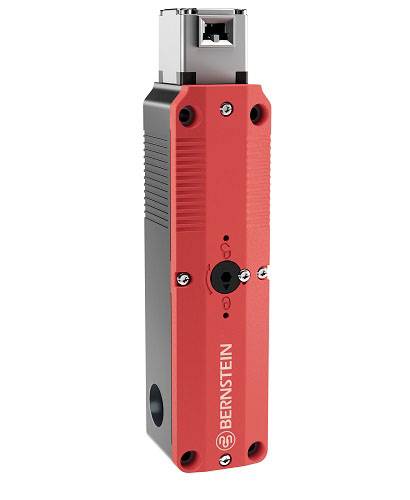

Buy BERNSTEIN 6018200008 SLC-F-024-11/20-R4 Safety button separate actuator Spring lock IP67 1 pc(s)

Datasheet (PDF)

Unavailable

Sales and shipping:

Technical specifications

Protection class II, insulated
Rated insulation voltage 250 V.
Rated surge voltage resistance 2.5 kV
RATED OPERATING VOLTAGE 240 V AC / 24 V AC/DC
Conv. thermal current 5 A.
Usage category according to IEC: AC-15, UE / IE 240 V / 1.5 A.
Usage category according to UL / CSA: 240V/1.5A
Usage category according to UL / CSA1: 24 V/1.5A
Forced opening: According to IEC/EN 60947-5-1, Appendix K.
Short-circuit protection 4 A GG
Limited rated short circuit current 400 A.
Duty cycle: 100% duty cycle (at E1; E2)
Temperature class F (155 °C)
Continuous output 6.7 VA (W)
Operating cycles permanent: 600 / h.
OPERATING VOLTAGE 24 V AC / DC (+10 % / -15 %)
Operation: Separate actuator
Starting speed 0.5 m/s
Extraction force: ≤10N
Locking principle: Spring force
Unlocking: A) Magnetic force
HOLDING FORCE 1500 N (EN ISO 14119)
Ambient temperature -25°C...+55°C.
Switching function locking: Locking (D); 1 NC, 1 NO
Switching function tumbler: Tumbler; 2 normally closed contacts
Switching principle: 4 creep contacts
Fixing 4 x M5
Connection type: screw terminals.
Conductor cross-sections: 0.34 ... 1.5 mm² flexible
Cable entry: 3 x M20 x 1.5
Weight: ≈ 0.484 kg
All mounting positions permitted
Protection class IP67 according to IEC/EN 60529; (UL 50 E / CSA C22.2) Type 6 indoor use
Usage category according to IEC1: DC-13, UE / IE 24 V / 1.5 A; 250 V / 0.11 A.
