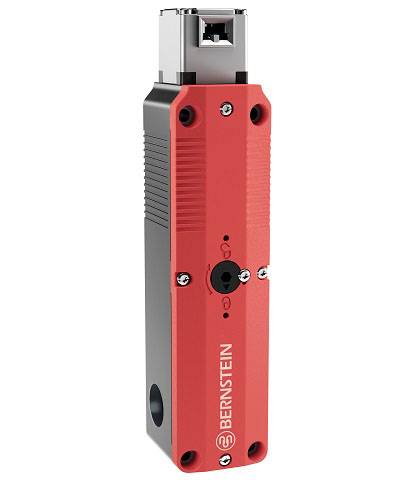

Buy BERNSTEIN 6018200018 SLC-F-024-10/20-R4-01 Safety button separate actuator Spring lock IP67 1 pc(s)

Datasheet (PDF)

Unavailable

Sales and shipping:

Technical specifications

Protection class II, insulated
Rated insulation voltage 30 V.
Rated surge voltage resistance 800 V.
Rated operating voltage: 24VAC/DC
Conv. Thermal current 2 A.
Usage category according to IEC: DC-13, UE / IE 24 V / 1.5 A.
Usage category according to UL / CSA: B300 R300
Usage category according to UL / CSA1: General use M12 connector 24 V / 1.5 A.
Forced opening: According to IEC/EN 60947-5-1, Appendix K.
Short-circuit protection 2 A GG
Limited rated short circuit current 400 A.
Duty cycle: 100% duty cycle (at E1; E2)
Temperature class F (155 °C)
Continuous output 6.7 VA (W)
Operating cycles permanent: 600 / h.
OPERATING VOLTAGE 24 V AC / DC (+10 % / -15 %)
Operation: Separate actuator
Starting speed 0.5 m/s
Extraction force: ≤10N
Locking principle: Spring force
Unlocking: A) Magnetic force
HOLDING FORCE 1500 N (EN ISO 14119)
Ambient temperature -25°C...+55°C.
Switching function locking: Locking; 1 NC contact
Switching function tumbler: Tumbler; 2 normally closed contacts
Switching principle: 4 creep contacts
Fixing 4 x M5
Connection type: Plug connector M12 plug, 8-pin, A coded, DIN EN 61076-2-101
Conductor cross-sections: 0.34 ... 1.5 mm² flexible
Cable entry 2 x M20 x 1.5
Weight: ≈ 0.50 kg
All mounting positions permitted
Protection class IP67 according to IEC/EN 60529; (UL 50 E / CSA C22.2) Type 6 indoor use
