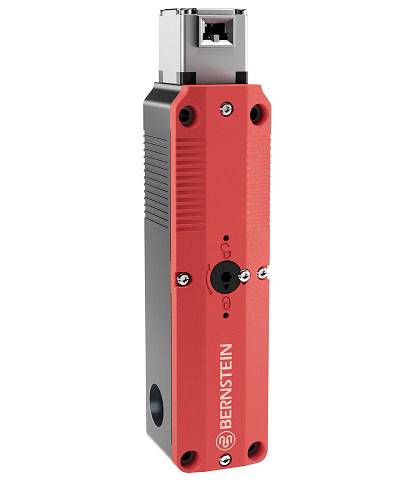

BERNSTEIN 6018200022 SLC-F-024-10/20-R4-11 Safety button separate actuator Spring lock IP67 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Protection class II, insulated
- Rated insulation voltage 30 V.
- Rated surge voltage resistance 800 V.
- Rated operating voltage: 24VAC/DC
- Conv. Thermal current 2 A.
- Usage category according to IEC: DC-13, UE / IE 24 V / 1.5 A.
- Usage category according to UL / CSA: B300 R300
- Usage category according to UL / CSA1: General use M12 connector 24 V / 1.5 A.
- Forced opening: According to IEC/EN 60947-5-1, Appendix K.
- Short-circuit protection 2 A GG
- Limited rated short circuit current 400 A.
- Duty cycle: 100% duty cycle (at E1; E2)
- Temperature class F (155 °C)
- Continuous output 6.7 VA (W)
- Operating cycles permanent: 600 / h.
- OPERATING VOLTAGE 24 V AC / DC (+10 % / -15 %)
- Operation: Separate actuator
- Starting speed 0.5 m/s
- Extraction force: ≤10N
- Locking principle: Spring force
- Unlocking: A) Magnetic force
- HOLDING FORCE 1500 N (EN ISO 14119)
- Ambient temperature -25°C...+55°C.
- Switching function locking: Locking; 1 NC contact
- Switching function tumbler: Tumbler; 2 normally closed contacts
- Switching principle: 4 creep contacts
- Fixing 4 x M5
- Connection type: Plug connector M12 plug, 8-pin, A coded, DIN EN 61076-2-101
- Conductor cross-sections: 0.34 ... 1.5 mm² flexible
- Cable entry 2 x M20 x 1.5
- Weight: ≈ 0.50 kg
- All mounting positions permitted
- Protection class IP67 according to IEC/EN 60529; (UL 50 E / CSA C22.2) Type 6 indoor use
- Packaging type
Piece
- Product type
Safety button
- Connection
M12 plug
- Operation type
separate actuator
- Contact type
3 breakers
- Functions
Spring lock
- Weight
0.50 kg
- Min. temperature
+55 °C
- Max. temperature
-25 °C
IP67
- Durability
1 x 10 6 operations
- Material
Thermoplastic
- Width
42 mm
- Type
SLC-F-024-10/20-R4-11
- Content
1 pc(s)
- Dim
(L x W x H) 207.8 x 42 x 44 mm
- Height
44 mm
- Length
207.8 mm
- UKCA
not relevant
