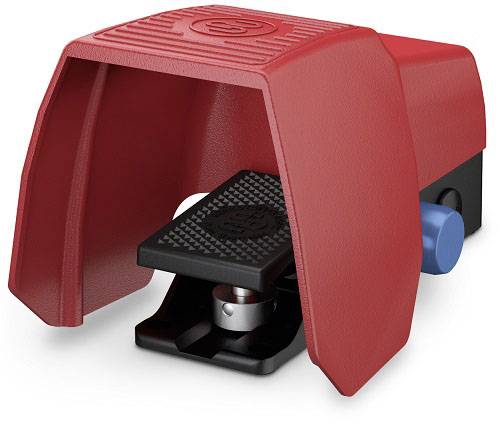

BERNSTEIN F1-ZSP1D UN Foot switch 5 A 1-pedal 1 breaker, 2 makers IP67 1 pc(s)
EAN:
Part number:
Item no:
Product type
Foot switch
Operation type
1-pedal
Switching current (max.)
5 A
Contact type
1 breaker
2 makers
Material
Aluminium (die-cast)
Datasheet (PDF)
Technical specifications
- Protection class: I
- Rated surge voltage strength: 2.5 KV
- Rated operating voltage: 240 V AC and 24 V DC
- Forced opening: According to IEC/EN 60947-5-1, Appendix K (pedal stop)
- Mounting: 2 screws M8
- Connection type: 6 screw connections (M3.5) with square. Terminal plates
- conductor cross-sections 1: Single-wire 0.5 – 1.5 mm2
- conductor cross-sections 2: Wire with wire-end sleeve 0.5 – 1.5 mm2
- cable entry: 1 x M20 x 1.5
- rated operating voltage range: 10-39 V/DC
- reverse polarity protection: Yes
- switching element function: PNP, voltage
- drop:< 3 V
- operating elements: Foot lever (PA)
- switching force (pedal center) 1.Position: 10 N
- switching force (pedal center) 2.Position: Position: 25 N
- Pressure point (per pedal): ≈200N
- Switching frequency: Max. 30/min
- Contact type (per pedal): 1 opener, 2 closer (e.g.)
- Weight with accident protection hood: ≈ 1.6 kg
- Rated insulation voltage: 250 V
- Gebrauchskategorie1: 24 V DC/ 1.0 A
- Short-circuit protection device: D-fuse 4 A GG
- Protective conductor connections: 2 x M4
- Switching current: 400 mA
- Operating current<: 20 mA
- Product type
Foot switch
- Operation type
1-pedal
- Contact type
1 breaker
2 makers
- Material
Aluminium (die-cast)
- Connection
Screws
- Switching current (max.)
5 A
- Min. temperature
+50 °C
- Max. temperature
-10 °C
IP67
- Actuating force
25 N
- Content
1 pc(s)
- Type
F1-ZSP1D UN
- UKCA
not relevant
