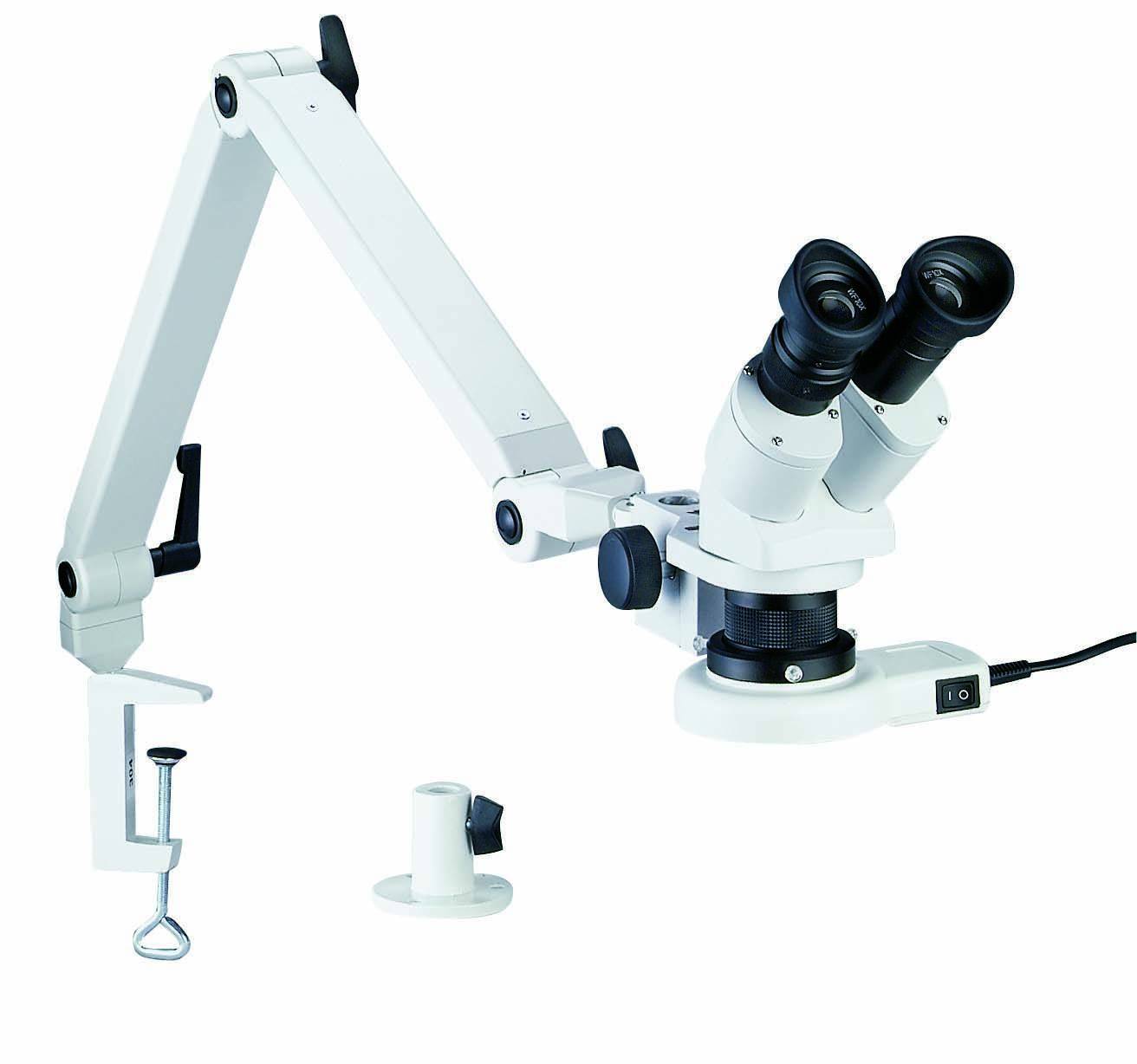

BERNSTEIN Tools for Electronics 9-158 9-158 Stereo microscope Binocular 20 x Reflected light
EAN:
Part number:
Item no:
Technical specifications
- Lighting: LED epi-Ring Illumination
- Brightness: 0 to 15000 Lux continuously adjustable
- Service life of 20,000 hours.
- Product type
Stereo microscope
- Type
Binocular
- Type
Upright
- Optical magnification (min.)
10 x
- Optical magnification (max.)
20 x
- Clearance (max.)
83 mm
- Lighting type
Reflected light
- Bulb type
LED (monochrome)
- Operating voltage
100 - 240 V
- Length
85 cm
- Weight
5.1 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 407362 BERNSTEIN Tools for Electronics 9-158 9-158 Stereo microscope Binocular 20 x Reflected light
Description
The microscopes are particularly suitable for the reliable inspection of material and installation details as well as the finest work in SMD technology.
This text is machine translated.
This text is machine translated.
Features
- Stereo head angled 45 °
- 360° rotatable
- Adjustable interpupillary distance of 54 - 74 mm
- Magnification: 10x/20x by additional lenses can be expanded up to 40 x
- Eyepieces: 10x
- Eyepiece tube with diopter adjustment on left of +- 5 dpt
- Eyepiece cup
- Installation on the envelope revolver
- White flicker-free LED-lighting (light color 5800K)
- Output voltage 18 V/3.6 W
- Working Distance: 83 mm with Magnification 10 x/20 x
- Field of vision: Ø 19 mm with 10x, Ø 9.5 mm at 20 x.
