BERNSTEIN Tools for Electronics 4-569 Torque wrench adapter 1/4" (6.3 mm) 2.0 - 6.0 Nm
EAN:
Part number:
Item no:
Highlights & Details

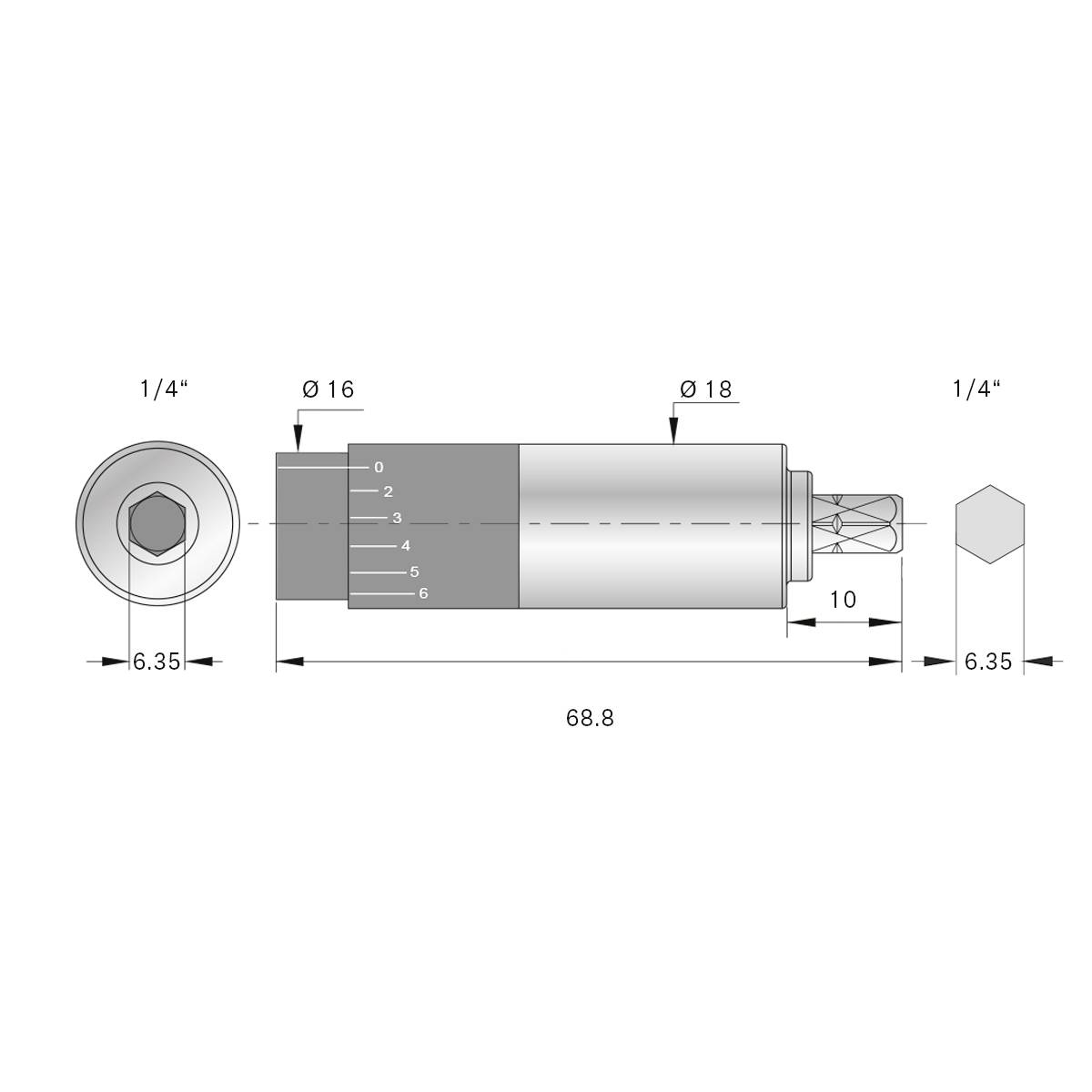

5in1 torque adapter 2.0-6.0 Nm, on both sides 6kt 1/4 inch
- Visual display of the torque values
- Rotate until the value on the scale is reached
- Tightening torque: 2.0-6.0 Nm / 20.4-61.1 Kgfcm / 17.7-53.1 in-lb
- Bit/magnet holder 1/4" hexagon 6.35 mm (DIN 3126)
- Output: 1/4 inches 6-kt. Shaft 6.35 mm (DIN 3126)
- Adapter Ø 18 mm
- Adapter length: 10 mm (without shaft)
- Material: Alloyed steel
Technical specifications
- Product type
Torque wrench adapter
- Downforce
1/4" (6.3 mm)
- Torque (min.)
2.0 Nm
- Torque (max.)
6.0 Nm
- Length
10 mm
- DIN standard
DIN 3126
- Width
18 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3251043 BERNSTEIN Tools for Electronics 4-569 Torque wrench adapter 1/4" (6.3 mm) 2.0 - 6.0 Nm
Description
Make your ¼ inch bit and holder your perfect torque tool from 2.0 to 6.0 Nm. An adapter for five different tightening strengths. The adapter can be clamped between each commercially available holding tool and a bit. Turn the handle clockwise until the required torque on the scale is reached. The adapter is primarily suitable for manual operation and not for loosening screw connections.
This text is machine translated.
This text is machine translated.
Hints
Always set the adapter to zero scale after use. The adapters are tested according to DIN EN ISO 6789 (manually operated torque-screwing tools) and have a tolerance of ± 10% for at least 20,000 clicks. The torque value should be checked regularly by the user using a torque gauge.
