BERNSTEIN Tools for Electronics 4-970-KSB Torque wrench adapter set Pre-set Hex head 0.1 - 0.6 Nm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Torque wrench adapter set
- Features
Pre-set
- Downforce
Hex head
- Torque (min.)
0.1 Nm
- Torque (max.)
0.6 Nm
- Trigger accuracy
10 %
- Length
91 mm
- Weight
70 g
- Width
43 mm
- Height
15 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2595759 BERNSTEIN Tools for Electronics 4-970-KSB Torque wrench adapter set Pre-set Hex head 0.1 - 0.6 Nm
Description
Precise and accurate, for 20,000 clicks. Adapters are primarily suitable for manual operation. In conjunction with power tools, we recommend a maximum speed of 100 rpm, with minimum click repetition. Higher speed than custom-made possible, please contact us.
This text is machine translated.
This text is machine translated.
Features
- Preset torque, tolerance +/-10% (+/-6% on request), precise and accurate for 20,000 clicksAdapter Ø 8 mm, length 22 mm (without shaft)6-kt. Shaft 4.0 mmIn connection with power tool max. speed 100 rpmMagnet bit holder 4.0 mmMaterial alloy steel HRC 43-48Plus 2 piece bit adapter 1/4 inch to 4 mm in plastic Quadro box1 bit holder made of aluminum1 bit holder made of chrome-plated steelIn plastic Quadro box (91x43x15mm)
Scope of delivery

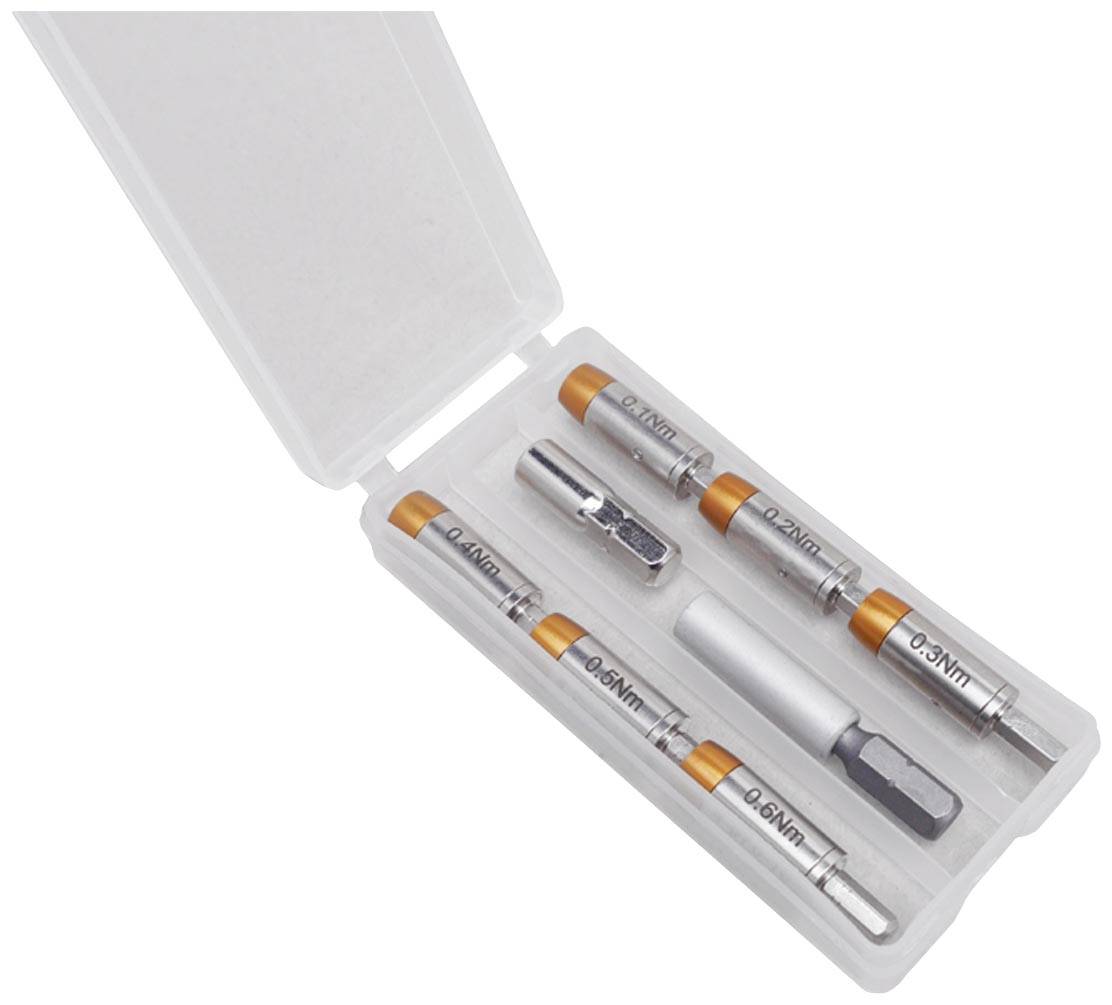

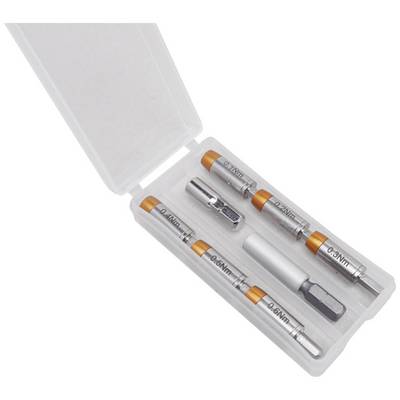

- 4-971 torque adapter 0.1Nm, for 4mm bits4-972 torque adapter 0.2 Nm, for 4mm bits4-973 torque adapter 0.3Nm, for 4mm bits4-974 torque adapter 0.4Nm, for 4mm bits4-975 torque adapter 0.5Nm, for 4mm bits4-976 torque adapter 0.6Nm, for 4mm bits4-564-bit adapter 1/4 inch, 4mm bits, length 42.5mm4-566-bit adapter 1/4 inch, 4mm bits, length 25mm
