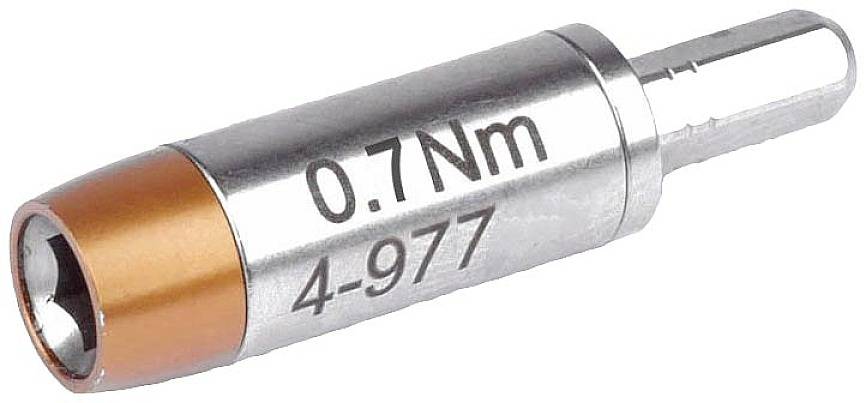

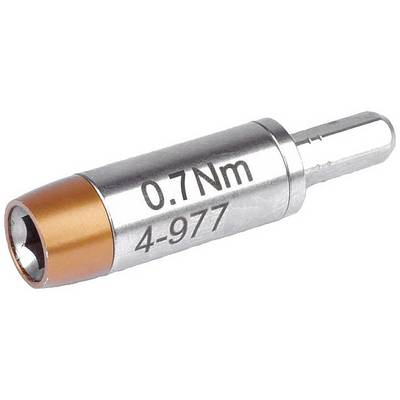

BERNSTEIN Tools for Electronics 4-977 Torque wrench adapter Allen 0.7 Nm (max)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Torque wrench adapter
- Downforce
Allen
- Torque (max.)
0.7 Nm
- Trigger accuracy
10 %
- Length
32 mm
- Weight
7.5 g
- Width
8 mm
- Height
32 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2595760 BERNSTEIN Tools for Electronics 4-977 Torque wrench adapter Allen 0.7 Nm (max)
Description
Precise and accurate, for 20,000 clicks. Adapters are primarily suitable for manual operation. In conjunction with power tools, we recommend a maximum speed of 100 rpm, with minimum click repetition. Higher speed than custom-made possible, please contact us.
This text is machine translated.
This text is machine translated.
Features
- Preset torque tolerance +/-10% (+/-6% on request) precise and accurate, for at least 20,000 clicksIn connection with power tool max. speed 100 rpm6-kt. Shaft 4.0 mm (5/32 in)Magnet bit holder 4.0 mm (5/32 inch)Tightening torque 0.7 Nm / 7.1 Kgfcm / 6.2 in-lbAdapter Ø 8 mmFactory standard material alloyed steelAdapter length 22 mm (without shaft)Total length 32 mm
