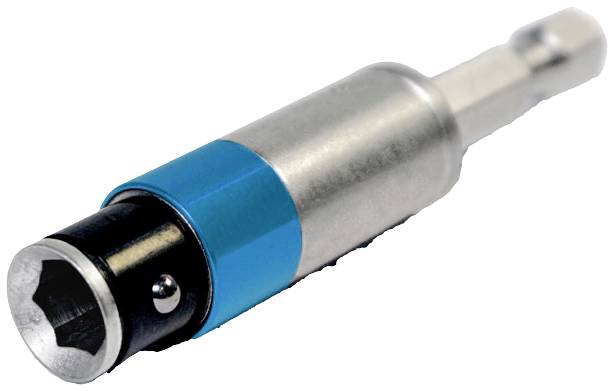

BERNSTEIN Tools for Electronics 4-986-RPM Electric torque wrench adapter Pre-set 1/4" (6.3 mm) 3.0 Nm (max)
EAN:
Part number:
Item no:
Highlights & Details
E-torque adaptor 3.0Nm for 1/4 in. Internal +/external mount (250rpm)
- Preset torque, precise for 20,000 clicks (max. Speed 250 rpm)
- Tolerance: +/-10% (factory certificate on request)

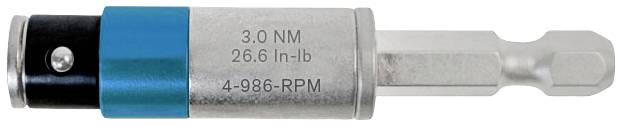

- Tightening torque: 3.0 Nm / 30.6 Kgfcm / 26.6 in-lb
- Bit/magnet holder 1/4" hexagon 6.35 mm (DIN 3126)
- Quick-change connection: E6.3 machine seating
- Material: Alloyed steel

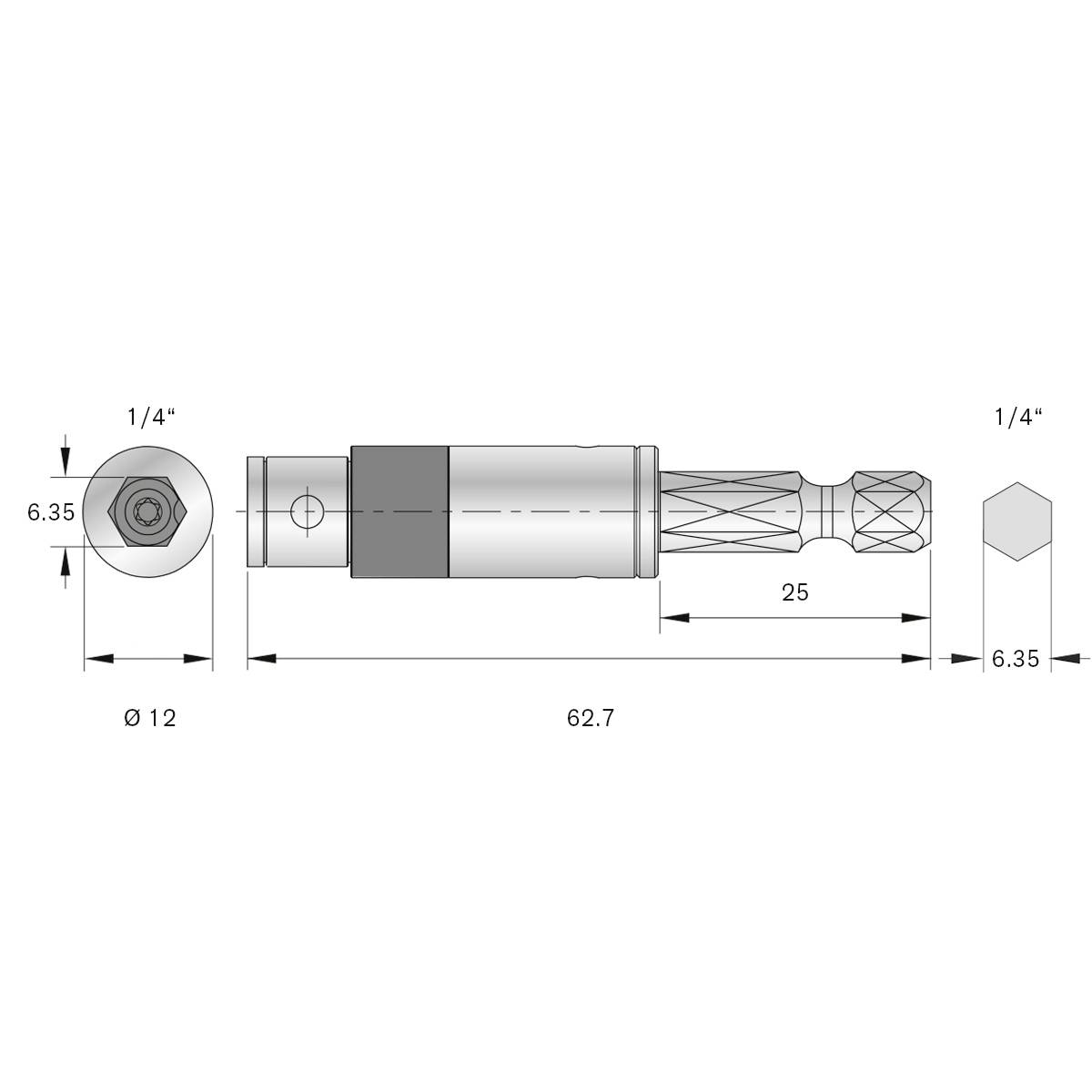

- Adapter Ø 12 mm
- Adapter length: 37.7 mm (without shaft)
Technical specifications
- Product type
Electric torque wrench adapter
- Features
Pre-set
- Downforce
1/4" (6.3 mm)
- Torque (max.)
3.0 Nm
- Trigger accuracy
10 %
- Length
37.7 mm
- DIN standard
DIN 3126
Manufacturer's standards (with certificate)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3251054 BERNSTEIN Tools for Electronics 4-986-RPM Electric torque wrench adapter Pre-set 1/4" (6.3 mm) 3.0 Nm (max)
Description
Turn your cordless screwdriver and a ¼-inch bit into your perfect torque tool. The torque value is preset in the adapter and can be clamped between each commercially available cordless screwdriver and a bit (quick-change system E6.3). The maximum speed is 250 rpm with minimum click repetition. If the max. Torque of the machine must be achieved by hand. The clicking sound indicates when the torque is reached. The adapter cannot be overtwisted. When the screw is loosened, the torque is not released (due to the locked core shaft). This means that an additional loosening tool is not required (30% higher torque when loosening).
This text is machine translated.
This text is machine translated.
Features
- These torque adapters are often used as a complete solution for working on electronic devices, in quick-change systems, robot stations, air and space travel, medical technology or simply at any workbench where the precise torque is needed.
Hints
The adapters are tested according to DIN EN ISO 6789 (manually operated torque-screwing tools) and have a tolerance of ± 10% for at least 20,000 clicks. The torque value should be checked regularly by the user using a torque gauge. The adapter works through the return protection of the ratchet, the torque in the socket sleeve. The patented system also comprises a hollow shaft and a damping cylinder. The core shaft is able to move the mobile ratchet. The damping cylinder has a slot to allow the spacer sleeve to slide on the core shaft. If the applied torque exceeds the preset torque, the core shaft becomes inactive. This means that when the torque requirement is reached, the continuous voltage is no longer increased, not even on the bolt to be tightened.
