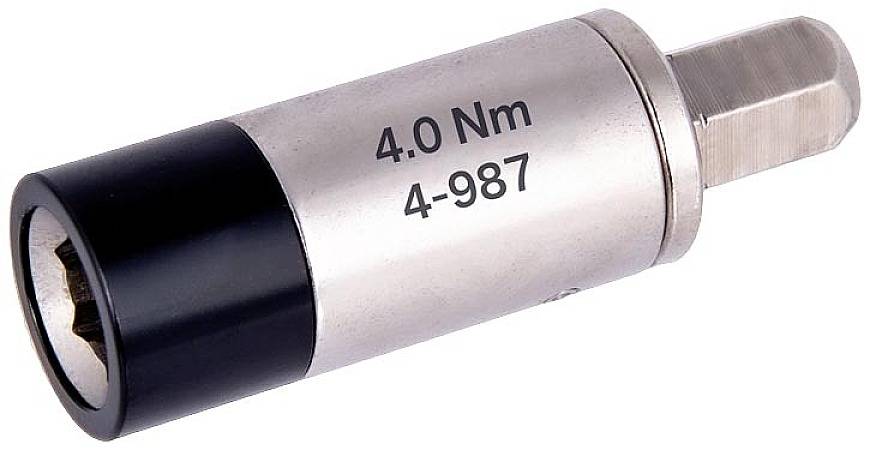

BERNSTEIN Tools for Electronics 4-987 Torque wrench adapter Pre-set 1/4" (6.3 mm) 4.0 Nm (max)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Torque wrench adapter
- Features
Pre-set
- Downforce
1/4" (6.3 mm)
- Torque (max.)
4.0 Nm
- Trigger accuracy
10 %
- Length
38.3 mm
- DIN standard
DIN 3126
- Weight
21 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2595766 BERNSTEIN Tools for Electronics 4-987 Torque wrench adapter Pre-set 1/4" (6.3 mm) 4.0 Nm (max)
Description
Precise and accurate, for 20,000 clicks. Adapters are primarily suitable for manual operation. In conjunction with power tools, we recommend a maximum speed of 100 rpm, with minimum click repetition. Higher speed than custom-made possible, please contact us.
This text is machine translated.
This text is machine translated.
Features
- Preset torque tolerance +/-10% (+/-6% on request)Precise and accurate, for at least 20,000 clicks in conjunction with power tool max. speed 100 rpm6-kt. Shaft 6.35 mm (1/4 inch)Magnet bit holder 6.35 mm (1/4 inch)Tightening torque 4.0 Nm / 40.8 Kgfcm / 35.4 in-lbAdapter Ø 12 mmManufactured according to DIN 3126 Material of alloy steelAdapter length 28.3 mm (without shaft)Total length 38.3 mm
