BERNSTEIN Tools for Electronics 4-989-KSB Torque wrench adapter set Pre-set 1/4" (6.3 mm) 3.0 - 5.5 Nm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Torque wrench adapter set
- Features
Pre-set
- Downforce
1/4" (6.3 mm)
- Torque (min.)
3.0 Nm
- Torque (max.)
5.5 Nm
- Trigger accuracy
10 %
- Length
91 mm
- Weight
141 g
- Width
43 mm
- Height
15 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2595771 BERNSTEIN Tools for Electronics 4-989-KSB Torque wrench adapter set Pre-set 1/4" (6.3 mm) 3.0 - 5.5 Nm
Description
Precise and accurate, for 20,000 clicks. Adapters are primarily suitable for manual operation. In conjunction with power tools, we recommend a maximum speed of 100 rpm, with minimum click repetition. Higher speed than custom-made possible, please contact us.
This text is machine translated.
This text is machine translated.
Features
- Preset torque, tolerance +/-10% (+/-6% on request), precise and accurate for 20,000 clicksAdapter Ø 12 mm, length 28 mm (without shaft)6-kt. Shaft 1/4 inchIn connection with power tool max. speed 100 rpm.Magnet bit holder 1/4 inchMaterial alloy steel HRC 43-48Packed individually in plastic Quadro boxPlastic Quadro Box (91x43x15mm)
Scope of delivery

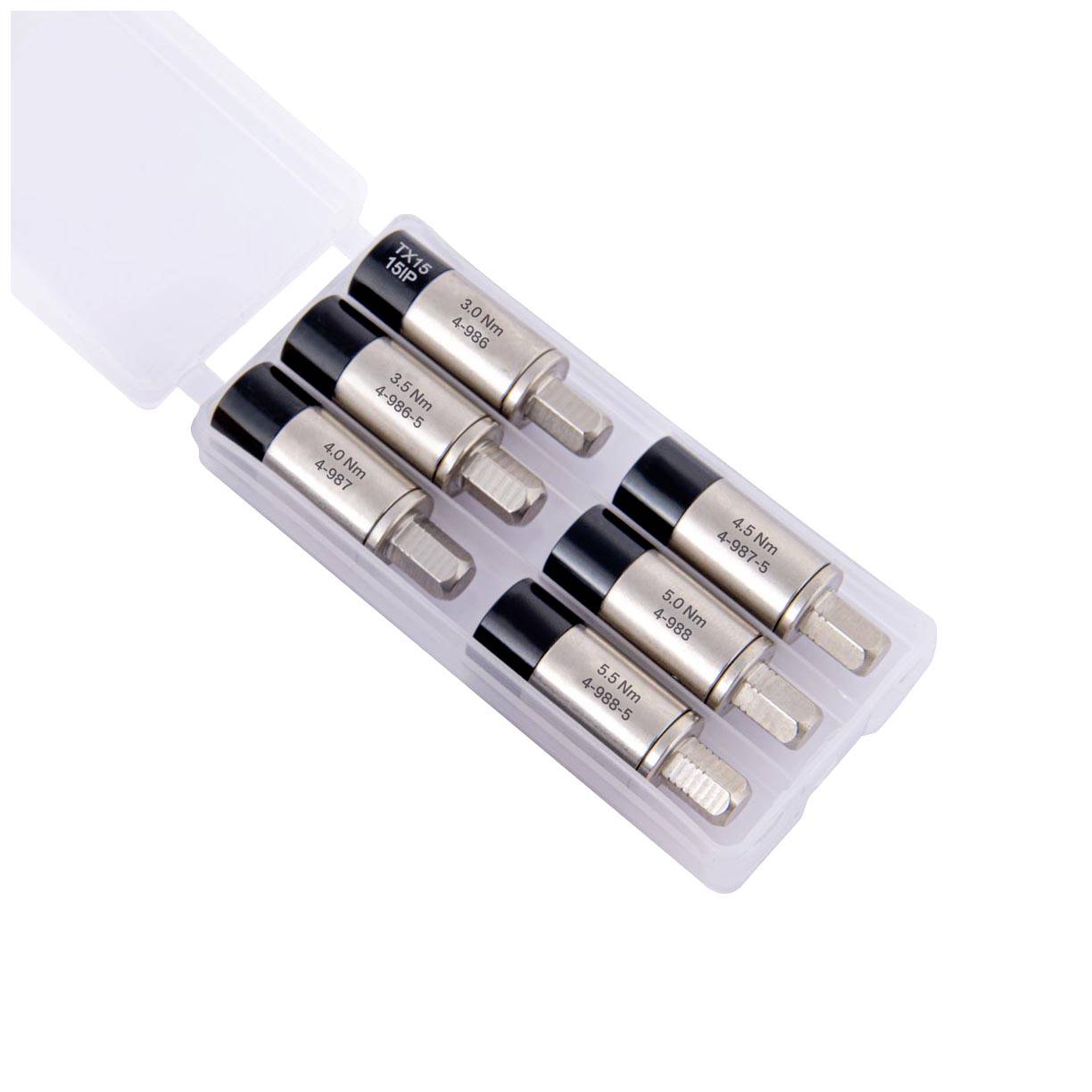

- 4-986 Torque adapter 3.0Nm4-986-5 Torque adapter 3.5Nm4-987 Torque adapter 4.0Nm4-987-5 Torque adapter 4.5Nm4-988 torque adapter 5.0Nm4-988-5 Torque adapter 5.5Nm
