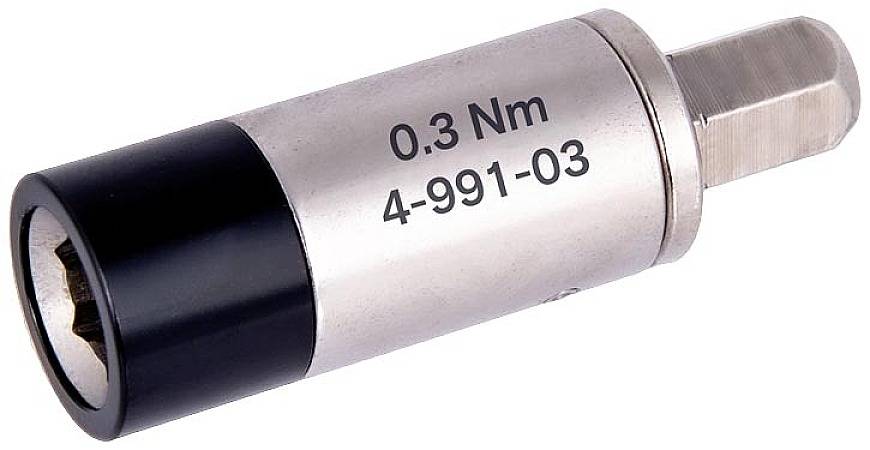

BERNSTEIN Tools for Electronics 4-991-03 Torque wrench adapter Pre-set 1/4" (6.3 mm) 0.3 Nm (max)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Torque wrench adapter
- Features
Pre-set
- Downforce
1/4" (6.3 mm)
- Torque (max.)
0.3 Nm
- Trigger accuracy
10 %
- Length
34.5 mm
- DIN standard
DIN 3126
- Weight
15 g
- Width
10 mm
- Height
34.5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2595773 BERNSTEIN Tools for Electronics 4-991-03 Torque wrench adapter Pre-set 1/4" (6.3 mm) 0.3 Nm (max)
Description
Precise and accurate, for 20,000 clicks. Adapters are primarily suitable for manual operation. In conjunction with power tools, we recommend a maximum speed of 100 rpm, with minimum click repetition. Higher speed than custom-made possible, please contact us.
This text is machine translated.
This text is machine translated.
Features
- Preset torque tolerance +/-10% (+/-6% on request)Precise and accurate, for at least 20,000 clicksIn connection with power tool max. speed 100 rpm.6-kt. Shaft 6.35 mm (1/4 inch)Magnet bit holder 6.35 mm (1/4 inch)Tightening torque 0.3 Nm / 3.1 Kgfcm / 2.7 in-lbAdapter Ø 10 mmManufactured according to DIN 3126 Material of alloy steelAdapter length 24.5 mm (without shaft)Total length 34.5 mm
