BERNSTEIN Tools for Electronics 6-350 Bit box 45-piece Slot, Phillips, Star, Allen, Pentalobular, Sim-Eject-Bit, Tri-Poi
EAN:
Part number:
Item no:
Highlights & Details
ESD bit box 45 pcs
- 3 bit locking equipped with 36 special bits and 1 bit locking with 6 socket wrenches
- Precision repair set for smartphones (I-phone, Samsung, HTC) tablets and PCs
- 4 bit locking 4mm (5/32 inch) 6-KT
- 22 mm blade length
- Blades Ø 8 mm
- Includes ESD handle (conductive 10^6 to 10^9 Ohm)
- Including bit extension 115 mm + 1/4 inch adapter for 4 mm bits
- Quality steel sand-blasted and nickel-plated 52-54 HRC
Technical specifications
- Product type
Bit box
- Downforce
Slot
Phillips
Star
Allen
Pentalobular
Sim-Eject-Bit
Tri-Point
TA socket
- Size
22 mm
- Drive
5/32" (4 mm)
- Material
Steel
- Material properties
sandblasted
- Content
1 Set
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3251065 BERNSTEIN Tools for Electronics 6-350 Bit box 45-piece Slot, Phillips, Star, Allen, Pentalobular, Sim-Eject-Bit, Tri-Poi
Description

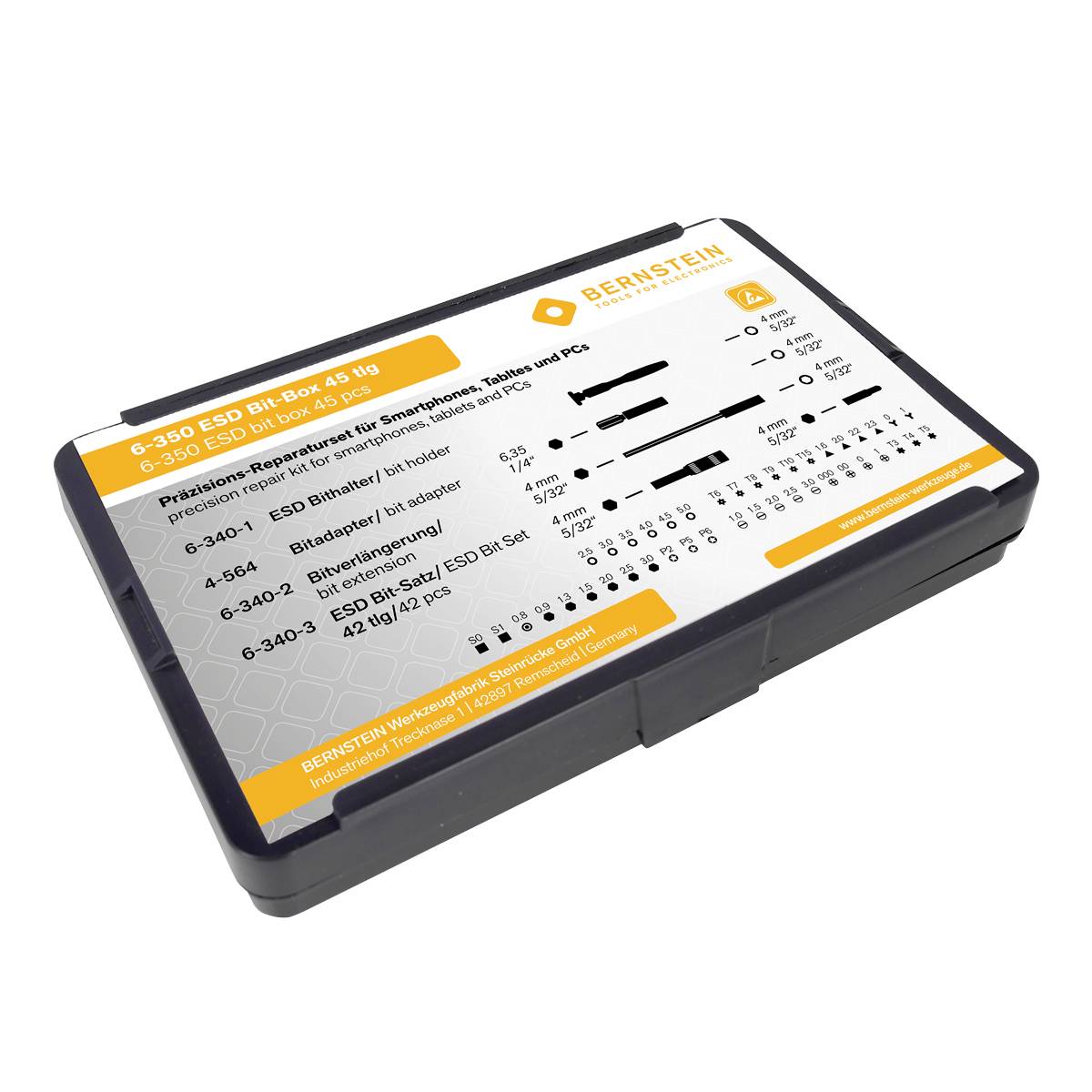

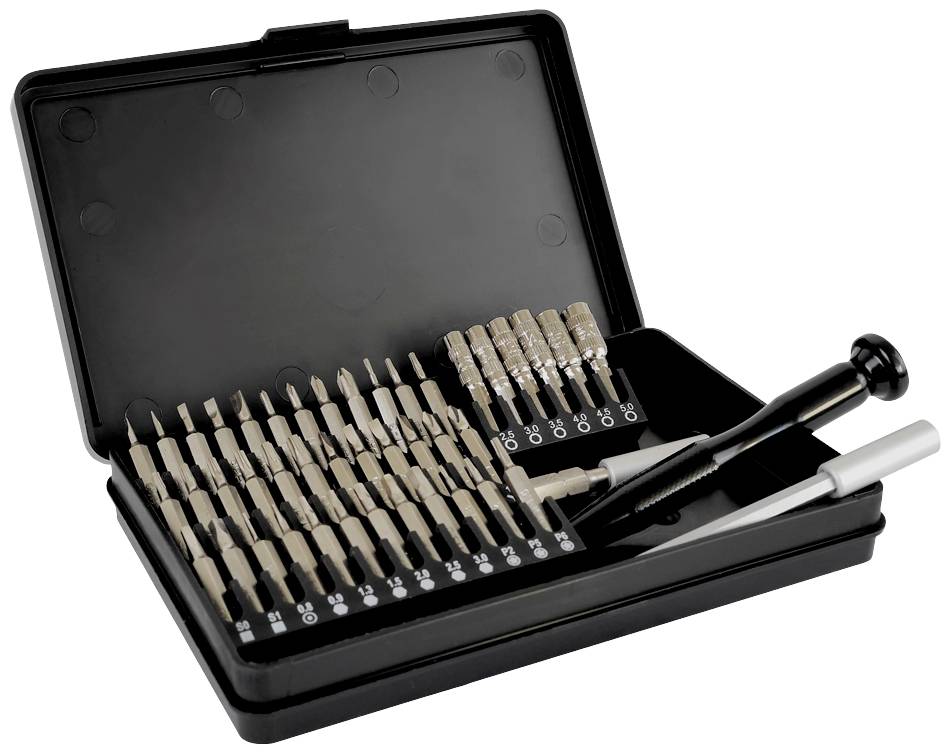

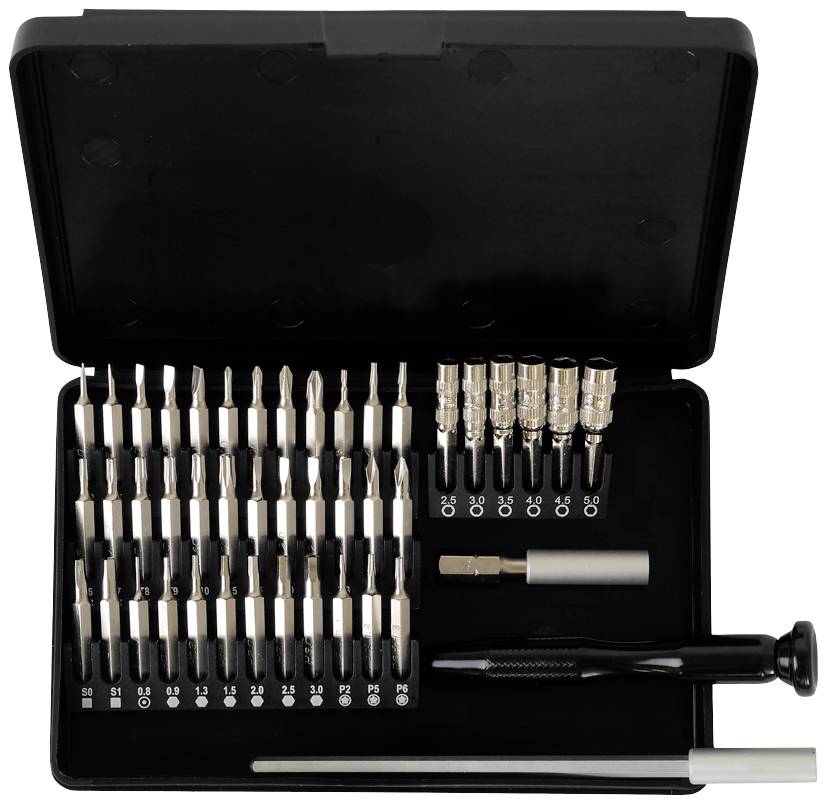

45-piece precision repair set consisting of a 115 mm bit extension, the 42-piece bit set with conductive ESD handle made of aluminum with rotating cap and the 1/4 inch on 4 mm bit adapter.
This text is machine translated.
This text is machine translated.
Features
- Bernstein ESD screwdrivers offer solutions for a wide range of screw heads, particularly for applications in electronics.

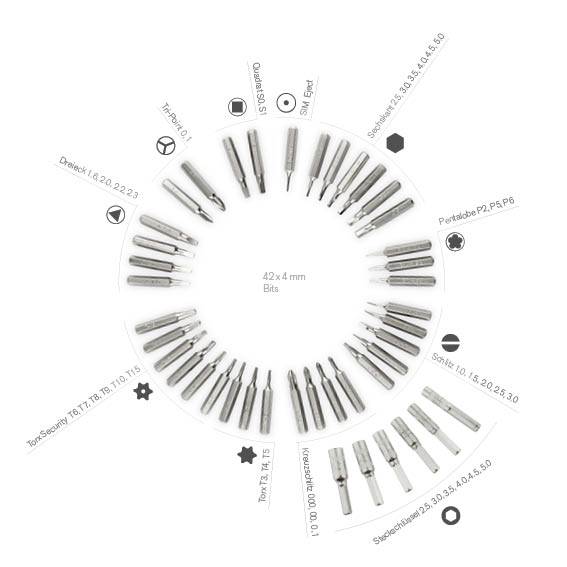

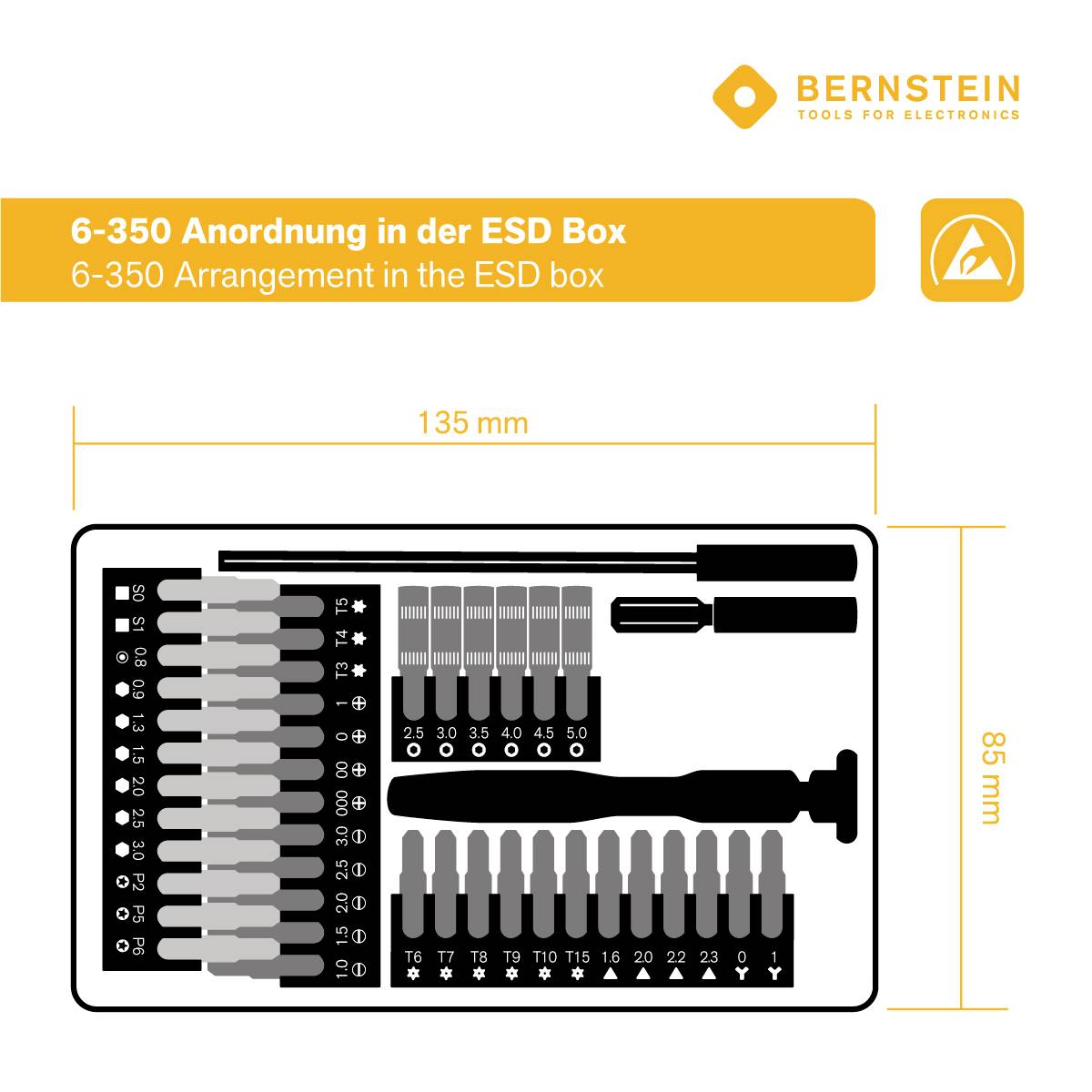

Scope of delivery
- Slotted 1.0-1.5-2.0-2.5-3.0
- PHILLIPS PH000-PH00-PH0-PH1
- TORX T3-T4-T5-T6-T7-T8-T9-T10-T15
- Hexagonal 0.9-1.3-1.5-2.0-2.5-3.0
- Wrench 2.5-3.0-3.5-4.0-4.5-5.0
- Triangular 1.6-2.0-2.2-2.3
- Square S0-S1
- PENTALOBE P2-P5-P6
- SIM eject
- Tri-Point 0-1
- 6-340-2 bit extension for 4 mm (5/32 inch) hexagonal bits
- 6-340-1 ESD bit holder derivable for 4 mm (5/32 inch) hexagonal bits
- 4-564 bit adapter, 1/4 inch to 4 mm bits, length 42.5 mm
- Plastic hinged lid box
Hints
Together with the ESD-grip suitable for all work at electro-static component. Precision repair set for e.g. Smartphones (I-Phone, Samsung, HTC). 3 bit latches equipped with a total of 36 safety special bits with C4 seating, 1 bit-latch fitted with 6 slot-nuts with C4 recording, quality steel sand-blasted and nickel-plated 52-54 HRC, material plastic locking PP. Slim and ergonomic handle, surface resistance 10^6 - 10^9 Ohm, standard: IEC 61340-5-1, the rotating centering head guarantees precision.
