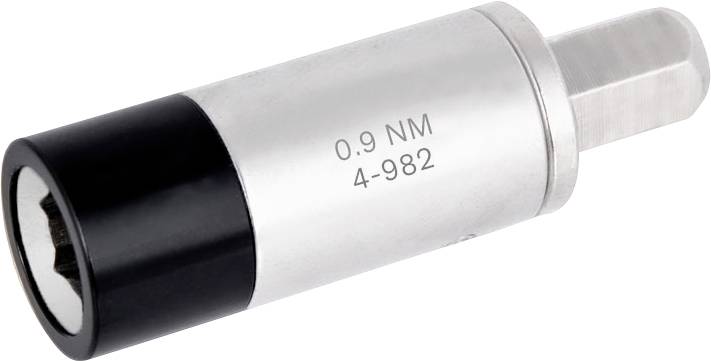

BERNSTEIN Tools for Electronics Bernstein Werkzeugfabrik Torque screwdriver 0.9 Nm (max)
EAN:
Part number:
Item no:
Highlights & Details

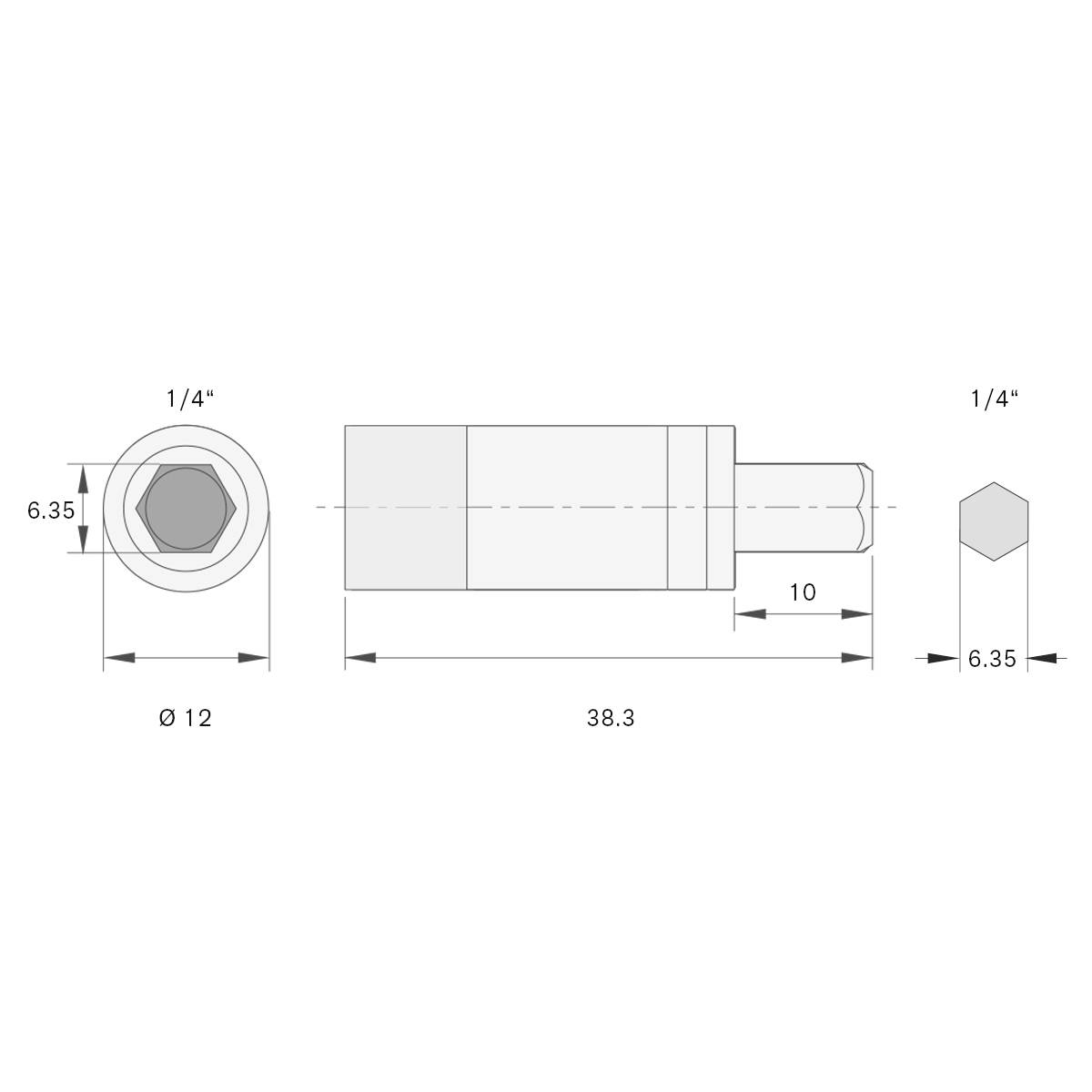

Torque adapter 0.9Nm for 1/4 inch bits
- Torque adapter length 28 mm (without shaft)
- Adapter Ø 12 mm
- 6-kt. Shaft 6.35 mm (1/4 inch)
- Magnet bit holder 6.35 mm (1/4 inch)
- Material alloy steel HRC 43-48
- individually packed
Technical specifications
- Product type
Torque screwdriver
- Torque (max.)
0.9 Nm
- Length
38.3 mm
- Material
Steel
- Weight
21 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2248351 BERNSTEIN Tools for Electronics Bernstein Werkzeugfabrik Torque screwdriver 0.9 Nm (max)
Description
Turn your ¼ inch bit and holder into your perfect torque tool. The torque value is preset in the adapter and can be clamped between each commercially available holding tool and a bit. The clicking sound indicates when the torque is reached. The adapter cannot be overtwisted. When the screw is loosened, the torque is not released (due to the locked core shaft). This means that an additional loosening tool is not required (30% higher torque when loosening). The adapter is mainly suitable for the manual operation. In connection with electric tools, we recommend a max. Speed of 100 rpm, with minimum click repetition.
This text is machine translated.
This text is machine translated.
Features
- Preset torque, precise for min. 20,000 clicks
- Tolerance +/-10% (factory certificate on request)
- Tightening torque 0.9 Nm / 9.2 Kgfcm / 8.0 in-lb
- Bit magnet holder 1/4 inch hexagonal 6.35 mm (DIN 3126)
- Output 1/4 inch 6-ct. Shaft 6.35 mm (DIN 3126)
- Adapter Ø 12 mm
- Adapter length 28.3 mm (without shaft).
