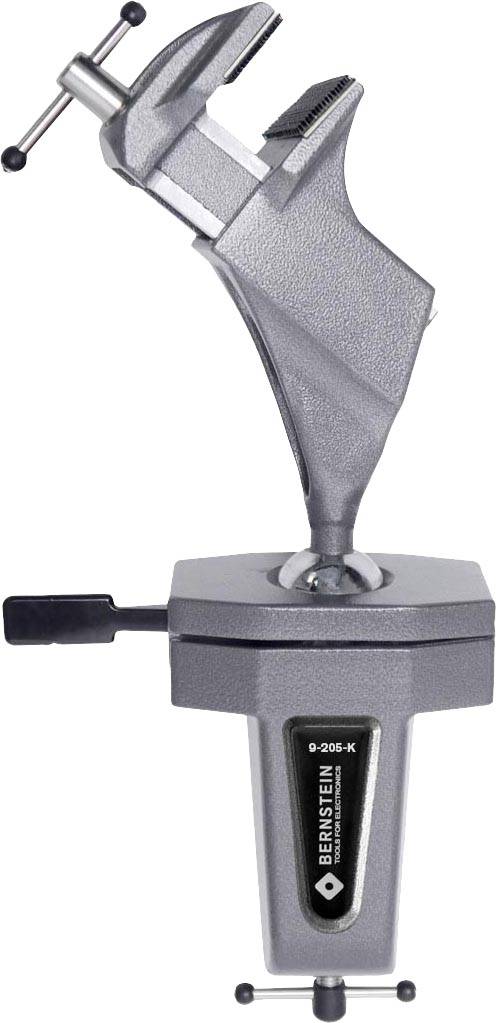

BERNSTEIN Tools for Electronics Bernstein Werkzeugfabrik Vice 9-205-K Jaw width: 50 mm Span width (max.): 70 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Vice
- Jaw width
50 mm
- Span width (max.)
70 mm
- Tension
1470 N
- Material
Aluminium (die-cast)
- Weight
1.45 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2595620 BERNSTEIN Tools for Electronics Bernstein Werkzeugfabrik Vice 9-205-K Jaw width: 50 mm Span width (max.): 70 mm
Description
Maximum torque: Ball-Ø 40 mm approx. 24 Nm, ball-Ø 60 mm approx. 100 Nm; Anklemm-base: Table plate thickness max. 80 mm; Aluminum-cast parts powder-coated; Steel parts chrome-plated, rust-free; by the adjustment screw at the lower seat of the ball the ball-free movement can be adjusted from loose to very firm.; For safety-related parts, please note that we cannot provide safety for the holding forces without knowing your specific application. The ball can behave differently under different physical conditions than in the test laboratory with optimal test environment.
This text is machine translated.
This text is machine translated.
Features
- Precision ball-joint 360° rotatable infinitely adjustable quick voltage Quality product 100% Made in Germany
- For clamping to the workbench (table thickness max. 80mm)

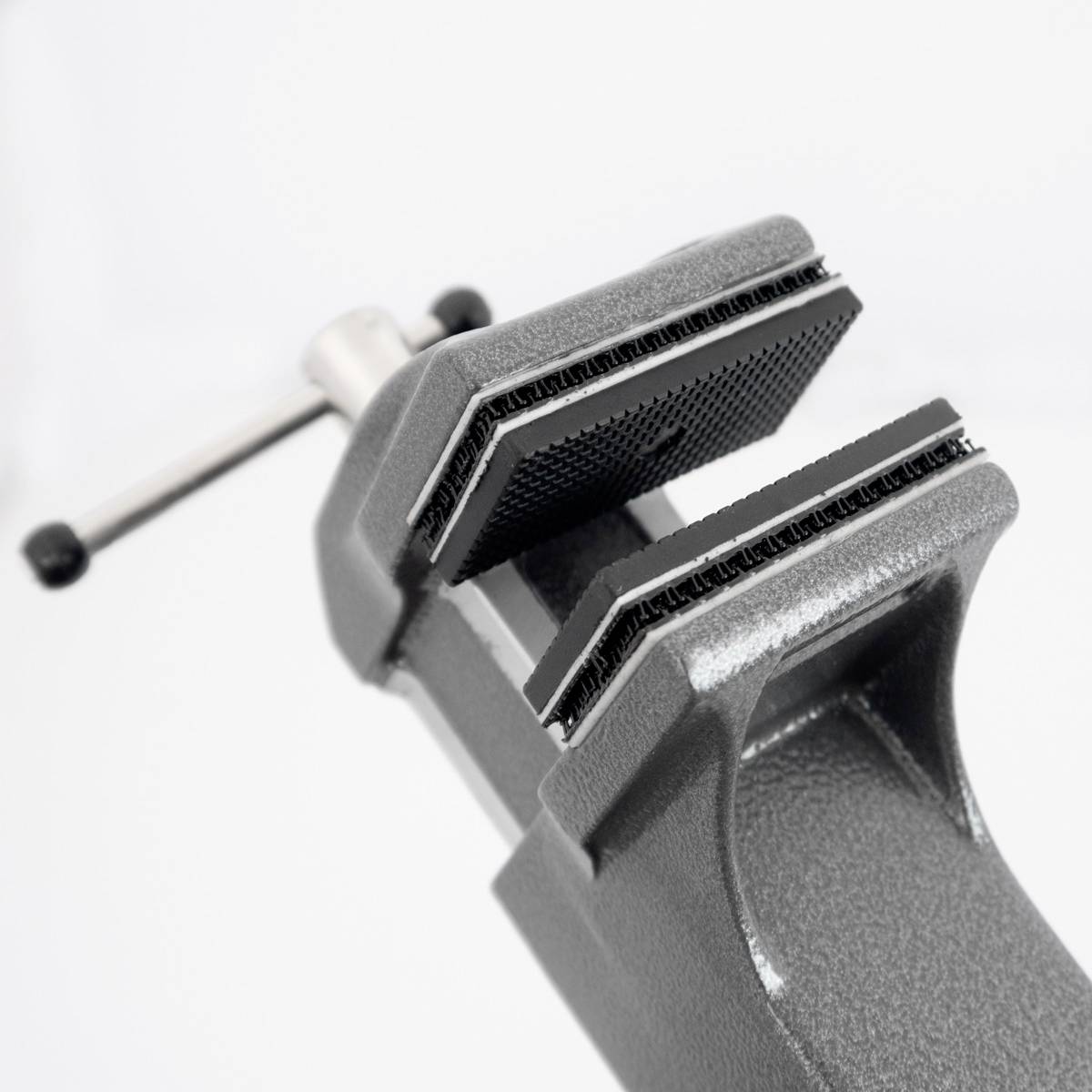

- 50 mm plastic jaws, flexible pressure lock (dual lock of 3M) connection for re-removing, firm, stable, precise and precise connection
- Span 70 mm Clamping depth 38 mm Clamping pressure 1470 N.
- Angle of inclination +/-45°
- Incl. smooth plastic jaws + fluted further jaws Search field input 9-900
Scope of delivery
- 9-205-K SPANNFIX ball joint vice for clamping (hook-and-loop)
- 9-900-K50-KST Replacement jaws for plastic corrugated/hook 50 mm (pair)
- 9-900-K50-KSTG replacement jaws for plastic smooth/50 mm hook-and-loop (pair)
