BERNSTEIN Tools for Electronics ESD component handling set Black
EAN:
Part number:
Item no:
Technical specifications
- Product type
ESD component handling set
- Factory colour
Black
- Length
610 mm
- Width
450 mm
- Height
1.5 mm
- Dim
(L x W x H) 610 x 450 x 1.5 mm
- Range of use
ESD
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2595704 BERNSTEIN Tools for Electronics ESD component handling set Black
Description
Products meet the requirements of DIN EN 61340-5-1. Technical data of the mat: Abrasion (load: 5N) 130 mm³, hardness 80 Shore A, pressure test 0.1 mm, temperature range of application up to + 60°C. Adjustable elastic wrist strap with woven silver-plated plastic fibers, allergy-free. Meets the safety requirements for wrist grounding according to BGFE. To ensure sufficient insulation, the bracelet may only be stored dry. Washing instructions for the bracelet: Standard machine wash up to 30° C with color and fine detergent, drying at low temperature (gentle), not bleaching. Avoid contact with acidic/alkaline solvents. ESD protection is retained for approx. 30 wash cycles.
This text is machine translated.
This text is machine translated.
Features
- ESD safe protective and workplace support, for SMD/THT mountingLeakage resistance 10^6 to 10^7 ohms (back conductive 10^3 to 10^4 ohms)Black top and back made of electrostatically conductive synthetic rubberWith 2 push buttons 10 mm for the earthing connectionSolder-proof workstation surface with professional accessories for earthing of personsHeat-resistant, abrasion-proof, halogen-freeWear-resistant and permanently elasticDimensions 610 x 450 x 1.5 mmWeighs 536 g.

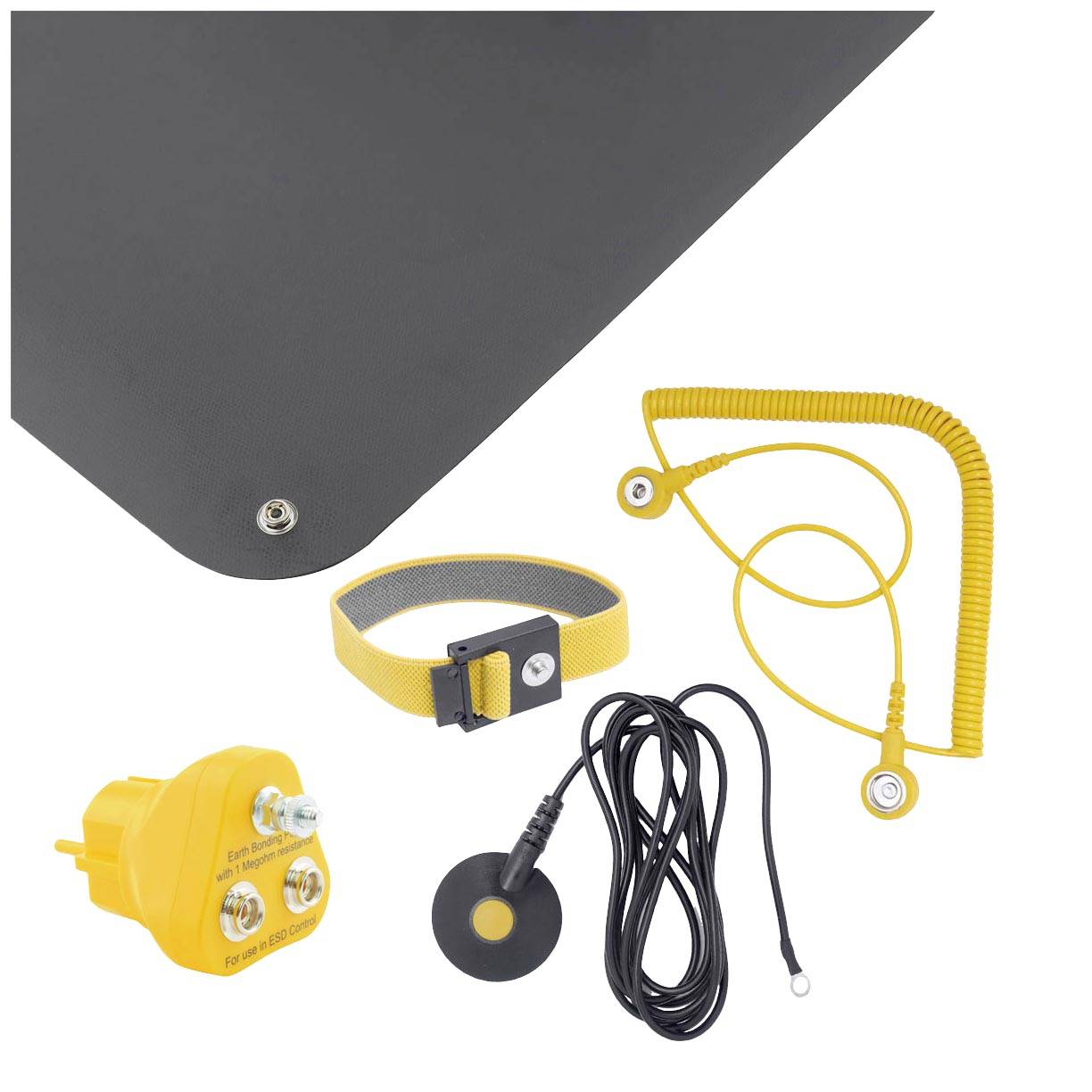

Scope of delivery
- 9-366-0 ESD earthing mat black 610 x 450 x 1.5 mm9-341-1 ESD Contact wristband yellow9-341-2 ESD spiral cable for wristband highly elastic 2400mm yellow9-344-1 ESD earthing cable 1 MOhm, 1800mm 1DK 10mm and eyelet 4mm9-359-2 ESD earthing plug 2x10mm and M5 connection
