Buy BERNSTEIN Tools for Electronics ESD component handling set Grey

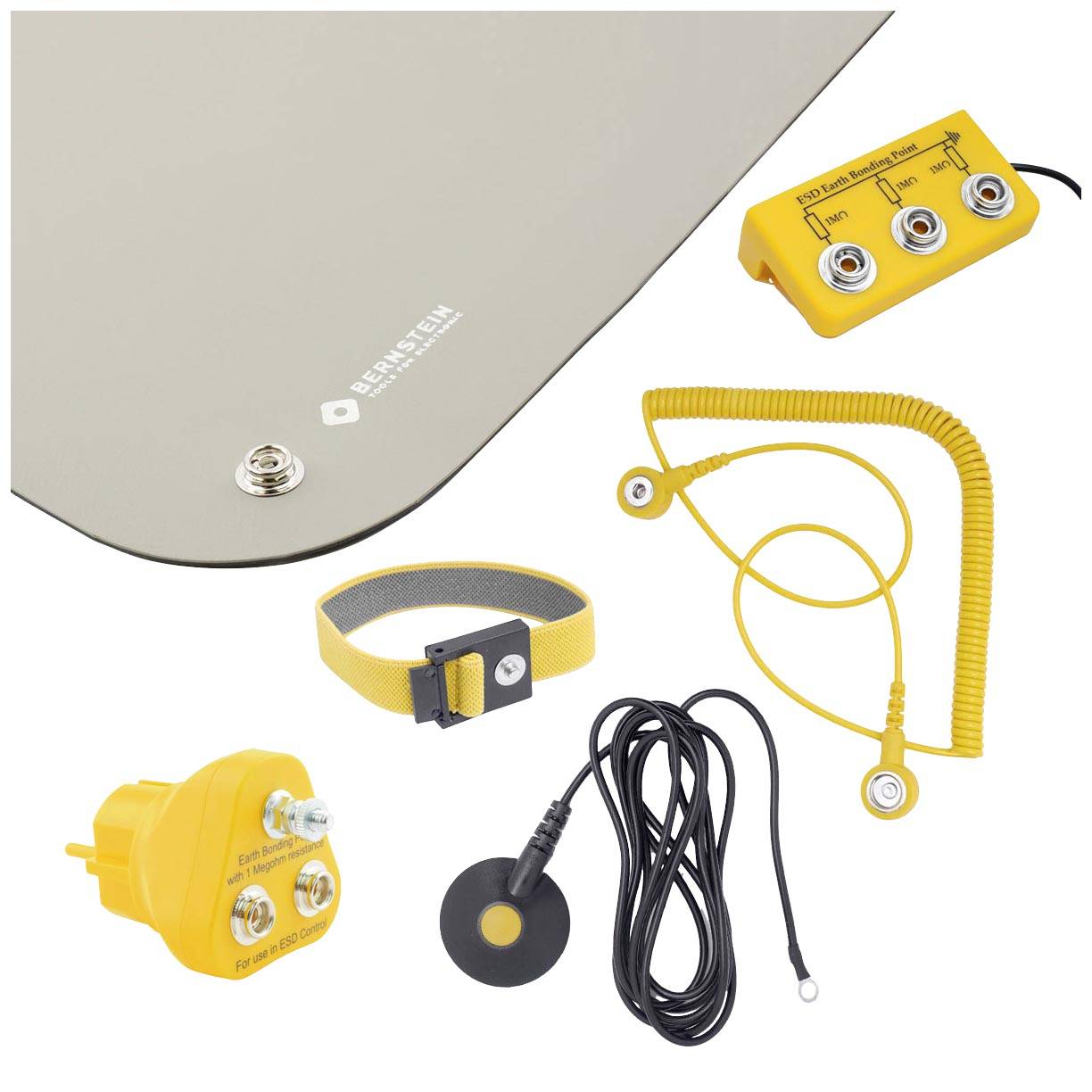

'Product image of an earthing system with mat, yellow cable with clip and accessories for preventing static electricity.'

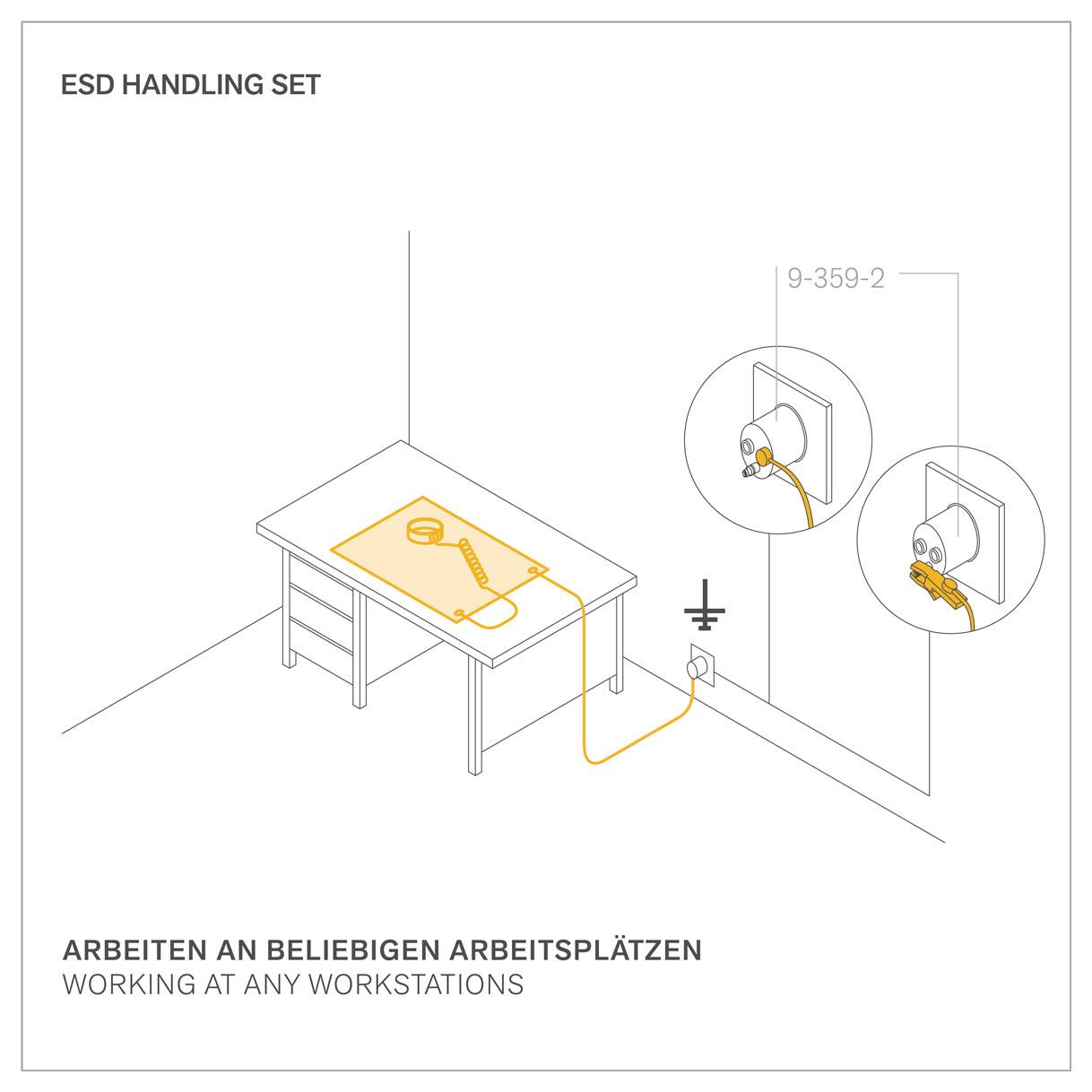

Illustration of ESD handling setup with a mat on a table connected to a power outlet via cables. Text: 'Working at any workstations'.

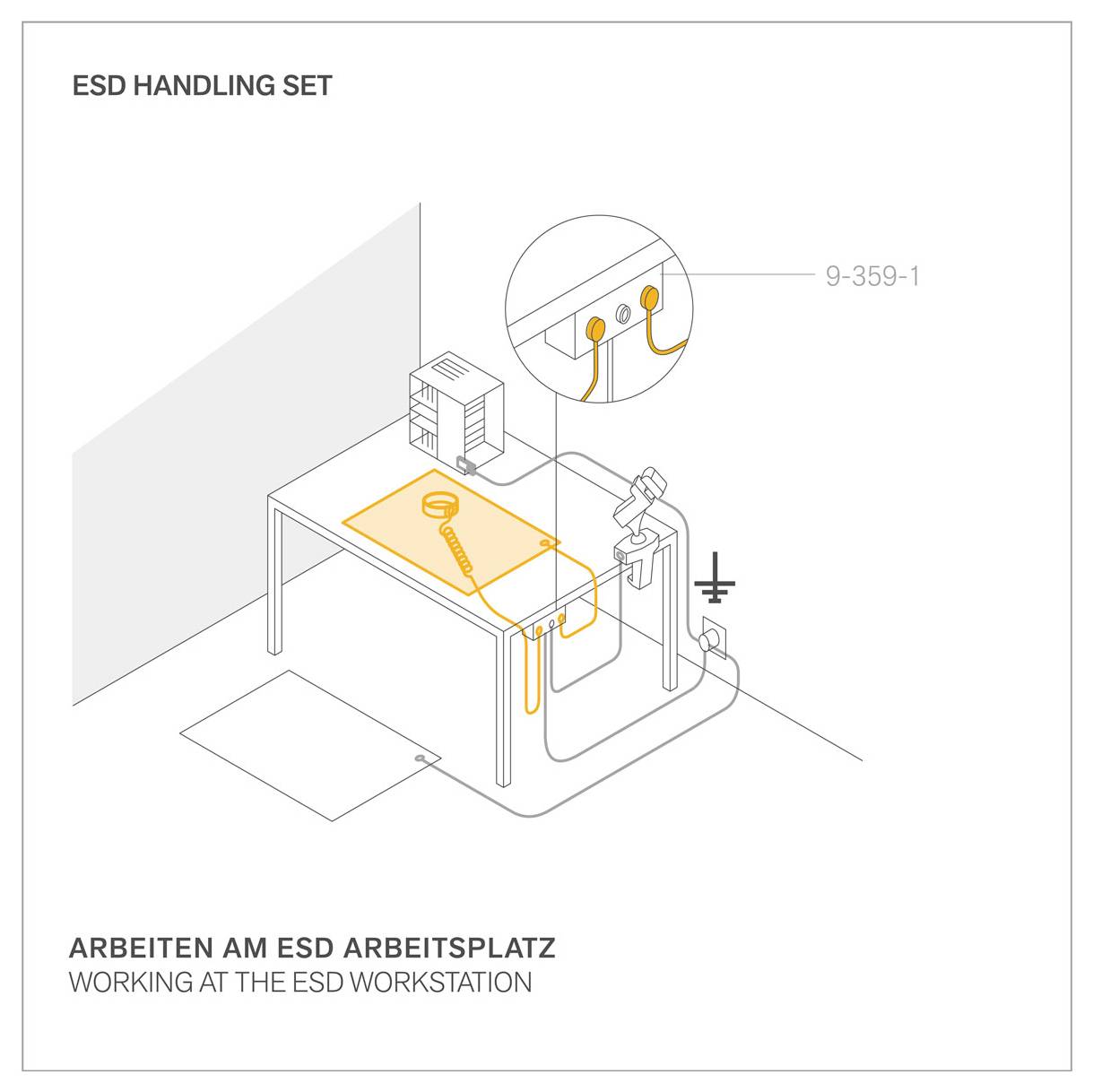

'ESD HANDLING SET - WORKING AT THE ESD WORKSTATION' shows a workstation with an ESD mat and grounding points for safe electrostatic discharge handling.

1/3

Datasheet (PDF)

Unavailable

18 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: ESD component handling set

Factory colour: Grey

Range of use: ESD

Documents & Downloads

Datasheet

Datasheet 2595701 BERNSTEIN Tools for Electronics ESD component handling set Grey

User & Safety Instructions

User & Safety Instructions 2595701 BERNSTEIN Tools for Electronics ESD component handling set Grey

Information

Information 2595701 BERNSTEIN Tools for Electronics ESD component handling set Grey

Description

Products meet the requirements of DIN EN 61340-5-1. Technical data of the mat: Abrasion (load: 5N) 130 mm³, hardness 78 Shore A, impression test 0.1 mm, light reflection degree 19% - 29%, temperature range of application up to + 60°C. Adjustable elastic wrist strap with woven silver-plated plastic fibers, allergy-free. Meets the safety requirements for wrist grounding according to BGFE. To ensure sufficient insulation, the bracelet may only be stored dry. Washing instructions for the bracelet: Standard machine wash up to 30° C with color and fine detergent, drying at low temperature (gentle), not bleaching. Avoid contact with acidic/alkaline solvents. ESD protection is retained for approx. 30 wash cycles.

This text is machine translated.

Features

ESD safe protective and workplace support for soldering and fittingLeakage resistance 10^6 to 10^7 ohms (back conductive 10^3 to 10^4 ohms)Upper surface platinum gray, back black made of electrostatically dissipative synthetic rubberWith 2 push buttons 10 mm for the earthing connectionSolder-proof workstation surface with professional accessories for personal earthingHeat-resistant, abrasion-proof, scratch-proofWear-resistant and permanently elastic, halogen freeDimensions 900 x 610 x 2 mmWeighs 1472 g.

Scope of delivery

9-361-0 ESD earthing mat gray 900x610x2mm9-341-1 ESD Contact wristband yellow9-341-2 ESD spiral cable for wristband highly elastic 2400mm yellow9-344-1 ESD earthing cable 1 MOhm, 1800mm 1DK 10mm and eyelet 4mm9-359-1 ESD grounding module, earthing box with cable and 3 x 1 MOhm connection9-359-2 ESD earthing plug 2x10mm and M5 connection
