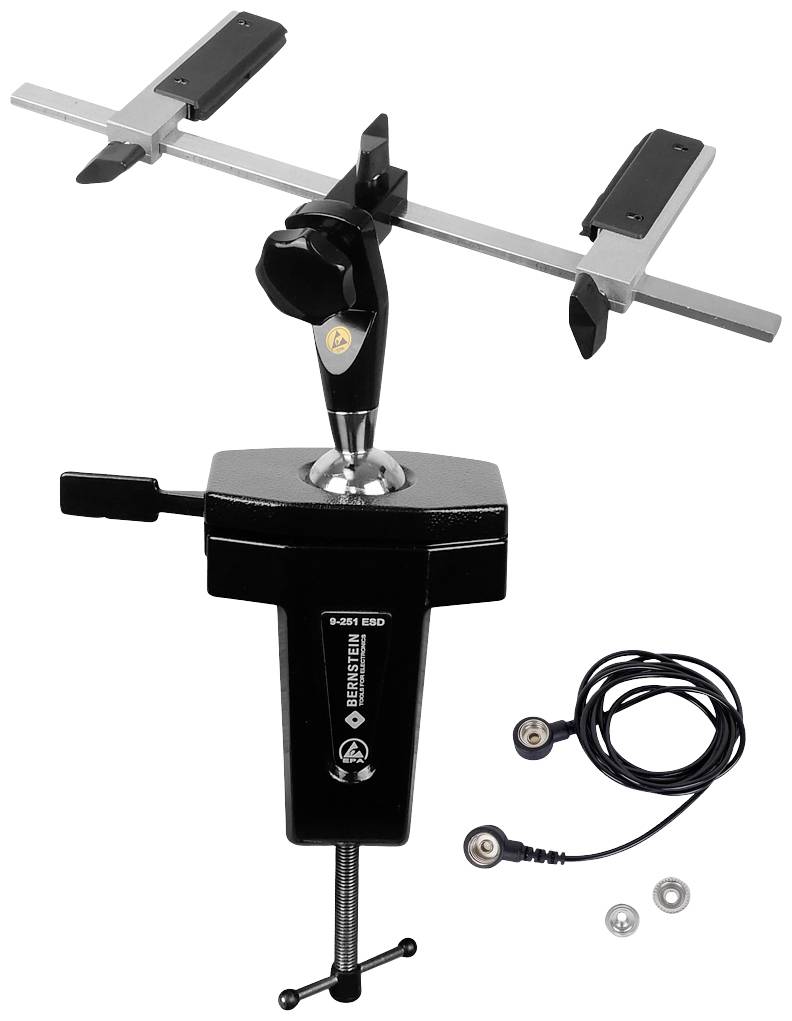

BERNSTEIN Tools for Electronics ESD Vice 9-240-ESD Span width (max.): 270 mm
EAN:
Part number:
Item no:
Highlights & Details
BERNSTEIN Tools for Electronics ESD Vice 9-240-ESD Span width (max.): 270 mm
- Precision ball joint rotates 360°, infinitely variable fast voltage, quality product made in Germany

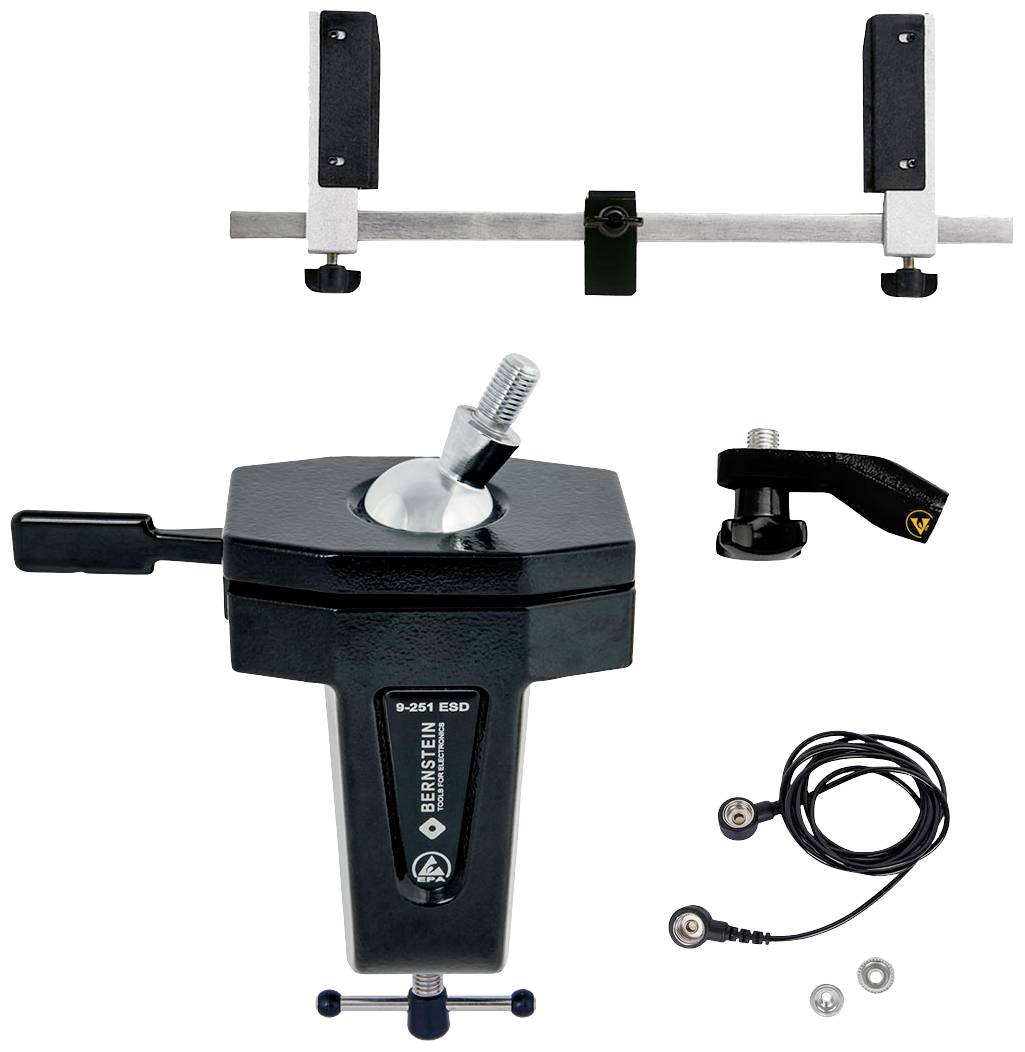

- Sturdy mounting frame with adjustable and swiveling holders
- With spring for sensitive circuit boards, angle adapter for greater tilt
- Board holder adjustable from 25 mm to 270 mm
- For connecting, for workbenches of max. Table cover thickness of 80 mm
- Angle of inclination +/- 45°

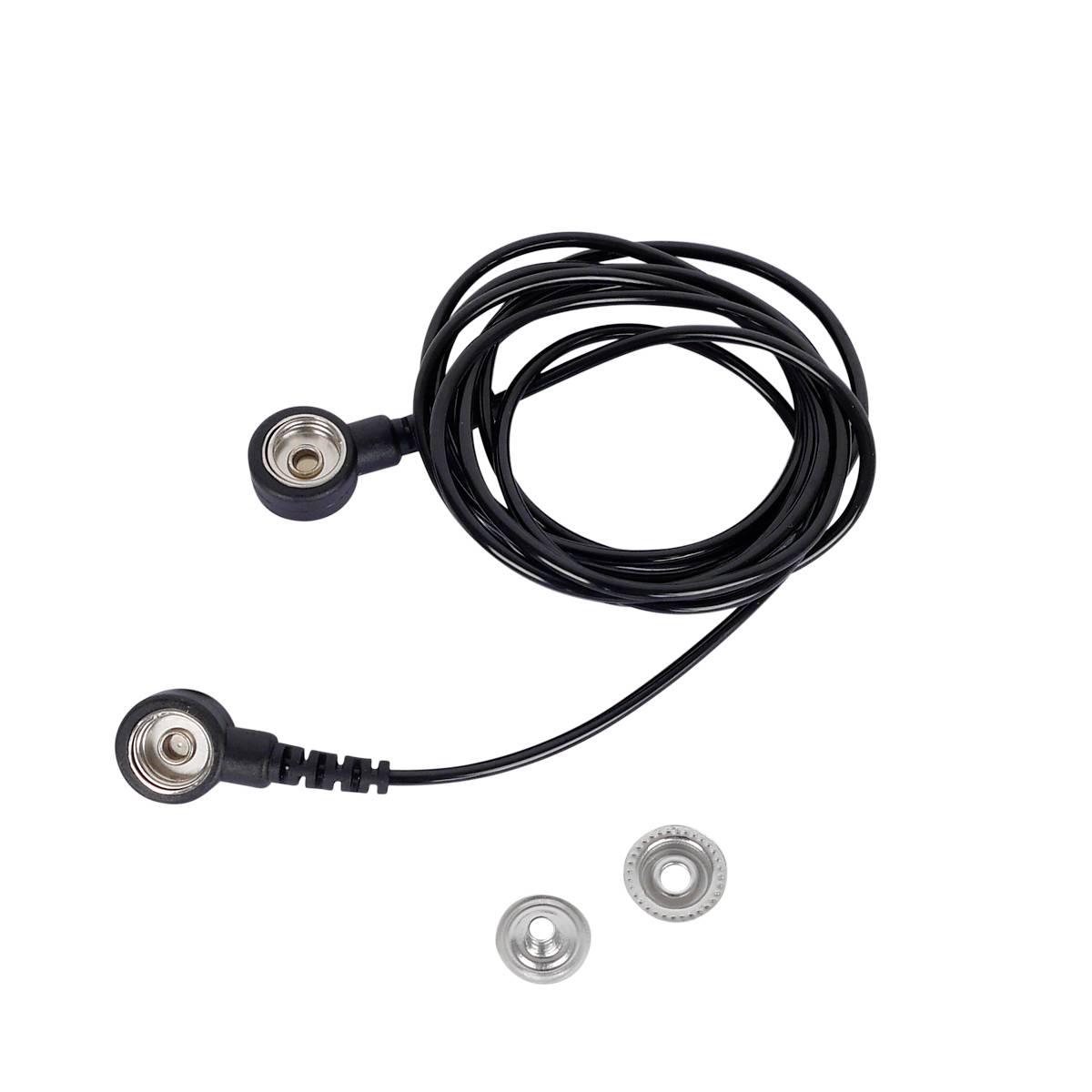

- With 6 bits. ESD earth lead 1 MOhm, length 1.8 m for connecting to an EBP / earth bonding Point
- Materials steel, plastic, aluminum casting with ESD powder coating black, conductive 10^7 to 10^8 Ohm
Technical specifications
- Product type
Vice
- Features
Ball joint
- Span width (max.)
270 mm
- Span width (table clamp)
80 mm
- Material
Steel
- Range of use
ESD
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3251121 BERNSTEIN Tools for Electronics ESD Vice 9-240-ESD Span width (max.): 270 mm
Description

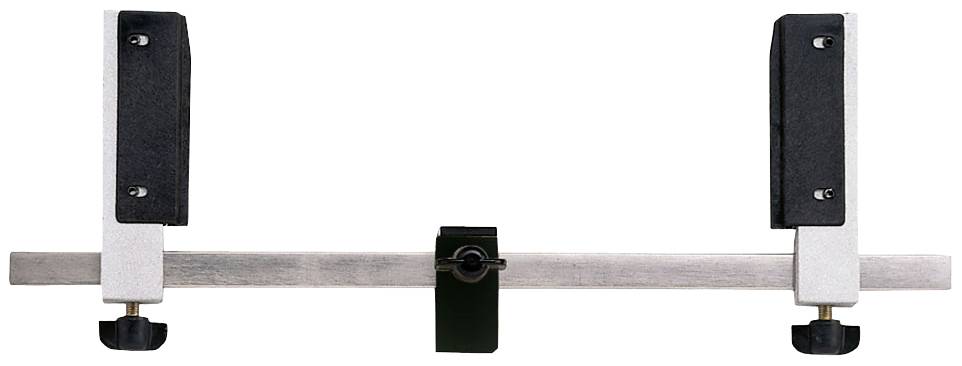

With the SPANNFIX VARIO, PCBs/boards of up to a length of 270 mm can be clamped. The board can be positioned and held securely in all directions by the continuously adjustable ball. A quick rotation of the PCBs/boards is possible thanks to the adapter. Very helpful as a third hand for soldering or populating, sensible clamping and holding device with quick release mechanism.
This text is machine translated.
This text is machine translated.
Features

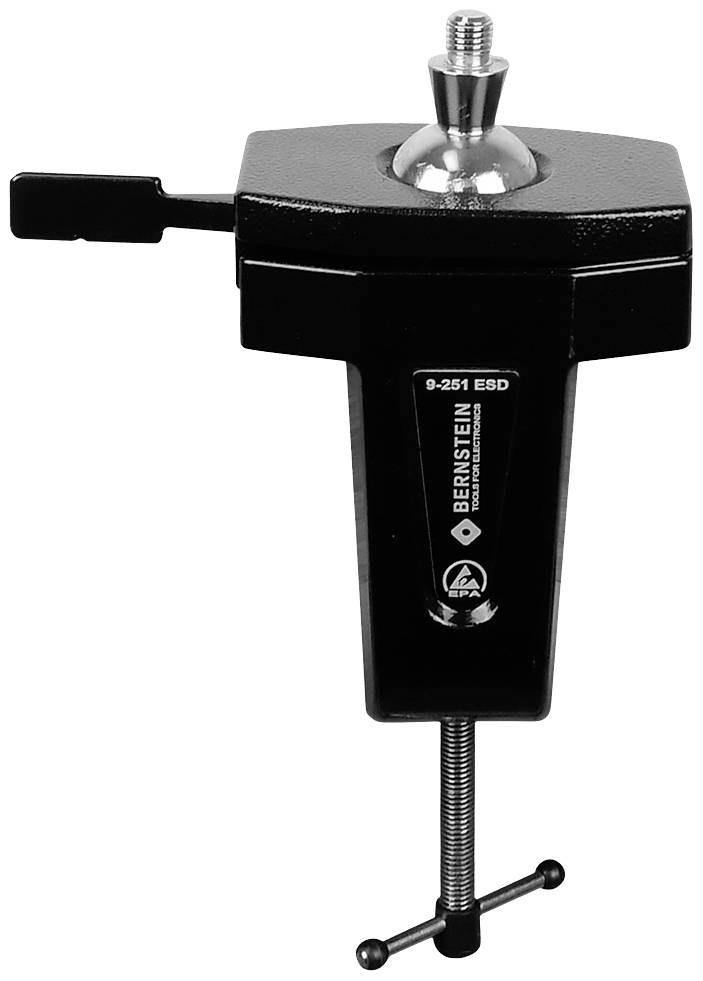

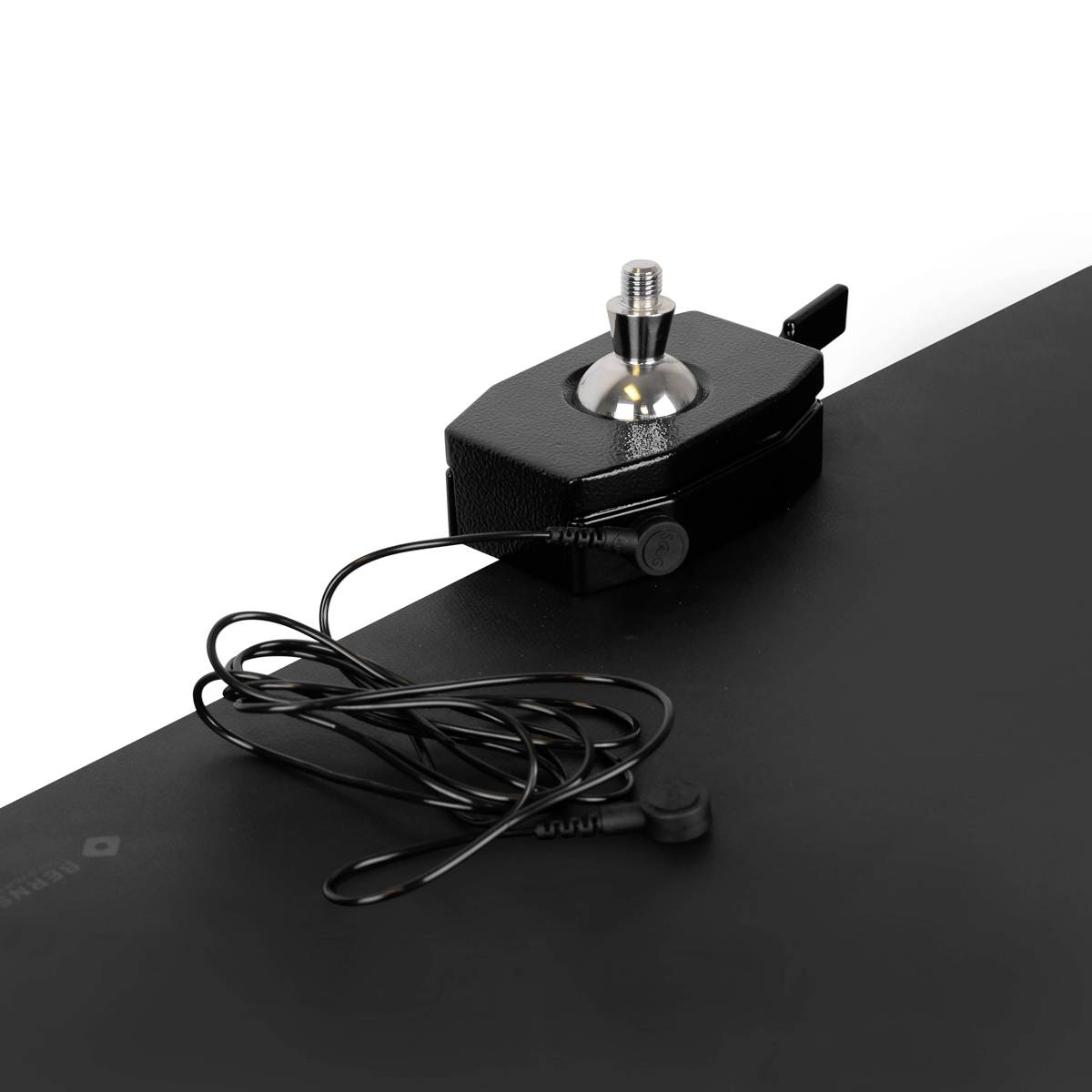

- The Bernstein ball-joint holder has a continuously adjustable - 360° rotating and +/- 45° inclinable - ball, with external thread for all possible devices and instruments. These can thus be tilted in any direction, allowing for fast, individual and mobile alignment in any position. With a simple lever movement, the ball head is released in the cone pan, individually aligned and tightened. Without any locking, the ball-clamping offers an extremely strong hold. By means of the adjusting screw at the lower seat of the ball, the ball course can be set from loose to very firm. Our product development is constantly working on the optimization and further development of our products. If you have any questions, improvements or suggestions, please do not hesitate to contact us.
Hints

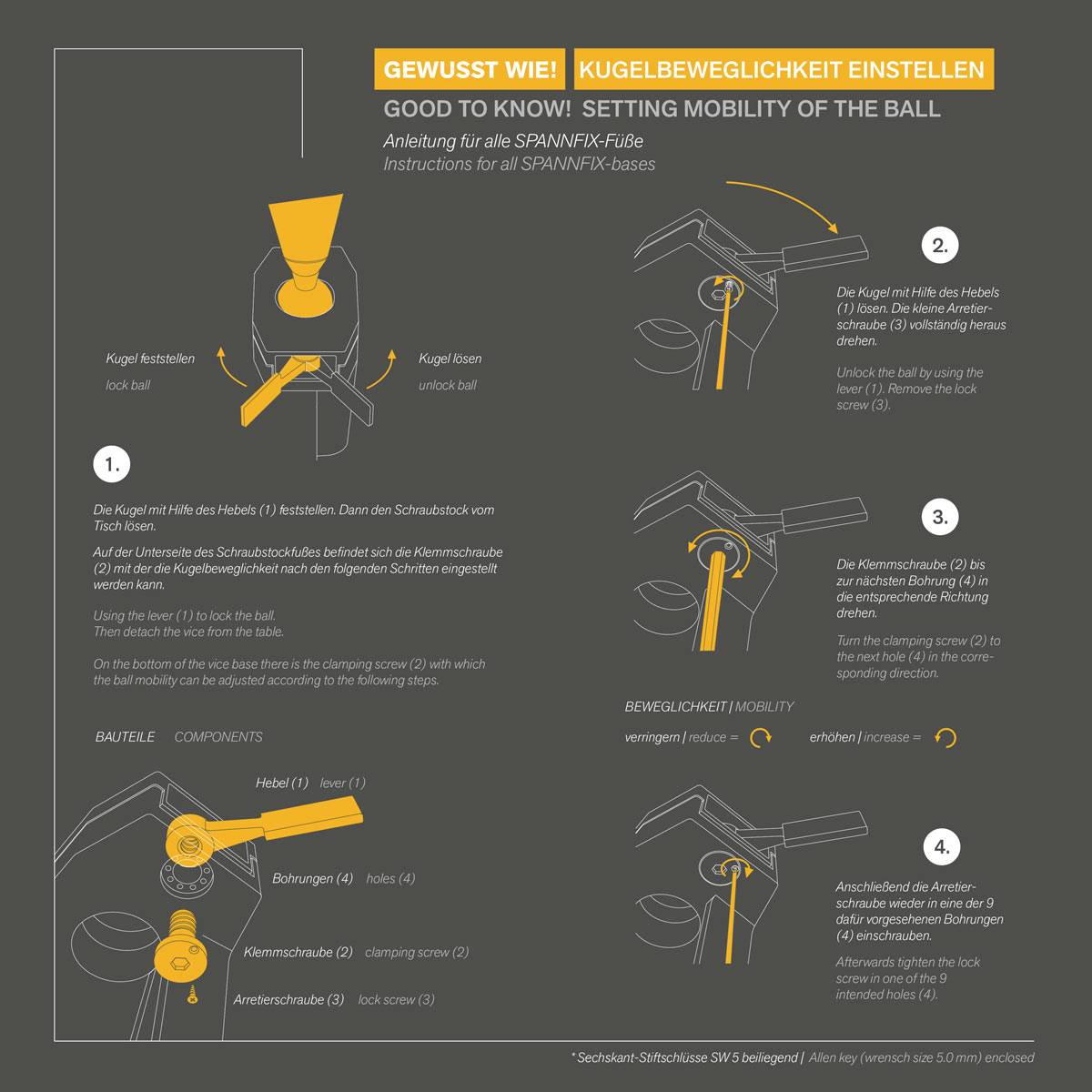

Connection thread M12 x 1.5 mm (special thread) suitable adapters are gladly requested directly Maximum torque: Ball-Ø 40 mm approx. 24 Nm, Ball-Ø 60 mm approx. 100 Nm Holding forces of the ball at the height of the threaded pin: Ball-Ø 40 mm approx. 45 kg (441N), Ball-Ø 60 mm ca140 kg (1.372N). Degreasing the ball increases the clamping force. Connection base: Table thickness max. 80 mm Screw base: 4 x 9 mm through holes Magnetic base: Holding force 32 kg horizontal, 15 kg vertical (magnet without cap) ESD models: Discharge value 10^7 and 10^8 Ohm EPA suitable. For working in electrostatically protected areas (ESD workstation/ESD protection zone). The foot parts can be attached at the earthing point with a 10 mm push button. Aluminium castings powder-coated steel parts chrome-plated, stainless Please note for safety-relevant parts that we cannot give up any security of the holding forces without knowing your specific application. The sphere can behave differently under different physical conditions than in our test laboratory with an optimal test environment.
