BERNSTEIN Tools for Electronics ESD wrist strap Dark blue
EAN:
Part number:
Item no:
Technical specifications
- Product type
ESD wrist strap
- Factory colour
Dark blue
- Cable length
2.4 m
- Range of use
ESD
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2595698 BERNSTEIN Tools for Electronics ESD wrist strap Dark blue
Description
Washing instructions for the bracelet: Standard machine wash up to 30° C with color and fine detergent, drying at low temperature (gentle), not bleaching. Avoid contact with acidic/alkaline solvents. ESD protection is retained for approx. 30 wash cycles.
This text is machine translated.
This text is machine translated.
Features
- EPA compatibleFor working in electrostatically protected areas (ESD workstation/ESD protection zone)Meets the safety requirements for wrist grounding according to BGI 818 (DIN EN 61340-5-1)Adjustable, anti-allergic, washable (woven silver-plated plastic fibers)Strap length 200 mmPush buttons 3-4 mm for wrist strap and 10 mm for earth contact connectionHighly elastic 2.4 m long spiral cable + 1.8 m earthing cable1 megohm safety resistor with 2 x10 mm pushbuttonsCable: 2 x 1 megohm safety resistor, wristband: Resistance inside 10^3-10^5Outside 10^7-10^9Additionally insulated alligator clips for earthing via terminal connectionColor dark blueWeight 60 g
Scope of delivery

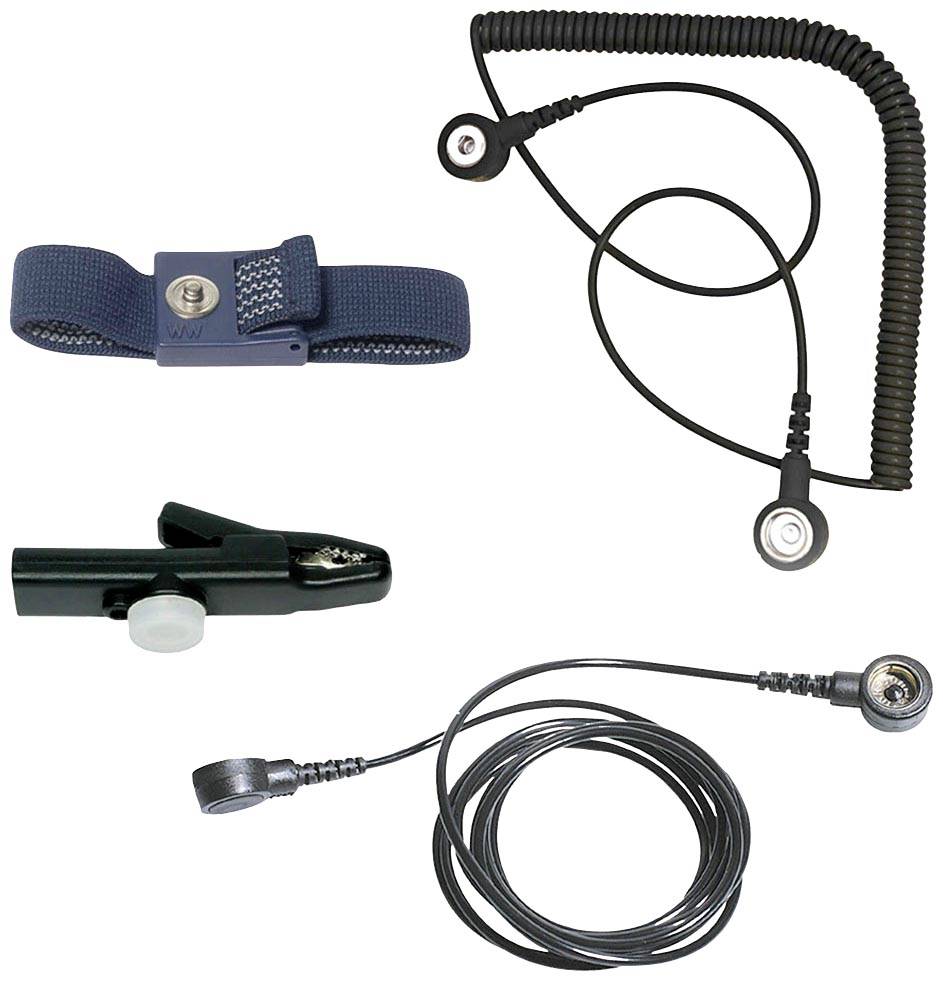

- 9-342-1 ESD Contact wristband blue9-342-2 ESD Spiral cable for wristband highly elastic, 2400mm9-353 ESD crocodile clip9-343-1 ESD Earthing cable 1800mm 2DK 10/10 + Alligator clip
