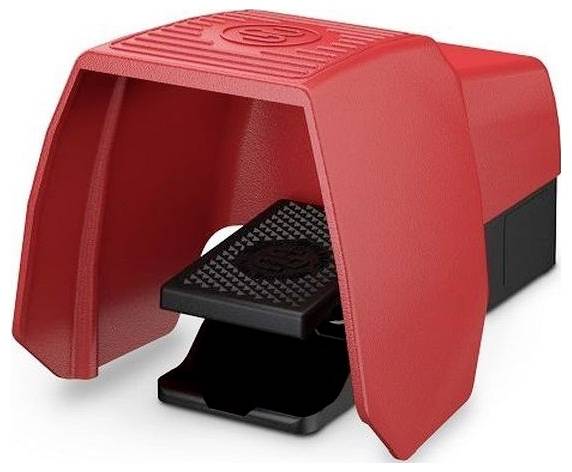

BERNSTEIN Tools for Electronics Foot switch + protective cover 1 maker, 1 breaker IP65 1 pc(s)
EAN:
Part number:
Item no:
Product type
Foot switch
Switch position
Off/On
Switch/button features
+ protective cover
Casing/button colour
Red
Contact type
1 maker
1 breaker
Datasheet (PDF)
Technical specifications
- Product type
Foot switch
- Switch/button features
+ protective cover
- Casing/button colour
Red
- Switch position
Off/On
- Contact type
1 maker
1 breaker
- Material
Metal
- Width
156 mm
- Height
145 mm
IP65
- Content
1 pc(s)
- Dim
(W x H) 156 mm x 145 mm
- Switching current (inductive)
3 A
- Type
6061600006
Documents & Downloads
Datasheet
Datasheet 3818996 BERNSTEIN Tools for Electronics Foot switch + protective cover 1 maker, 1 breaker IP65 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3818996 BERNSTEIN Tools for Electronics Foot switch + protective cover 1 maker, 1 breaker IP65 1 pc(s)
Description
Suitable for high requirements in industrial areas of application. Existing mounting holes offer the possibility of screwing the foot switch to the surface. Each foot switch is equipped with four rubber feet to prevent slipping. The foot lever is made of thermoplastic. An accident protection hood made of aluminum die-cast completely shields the pedal from the sides and with its wide design provides for a high stability. This prevents accidental operation from falling objects from the top or due to accidental inactivity from the side. Due to its stability, the hood can withstand a drop weight of 20kg from a height of 1m.
