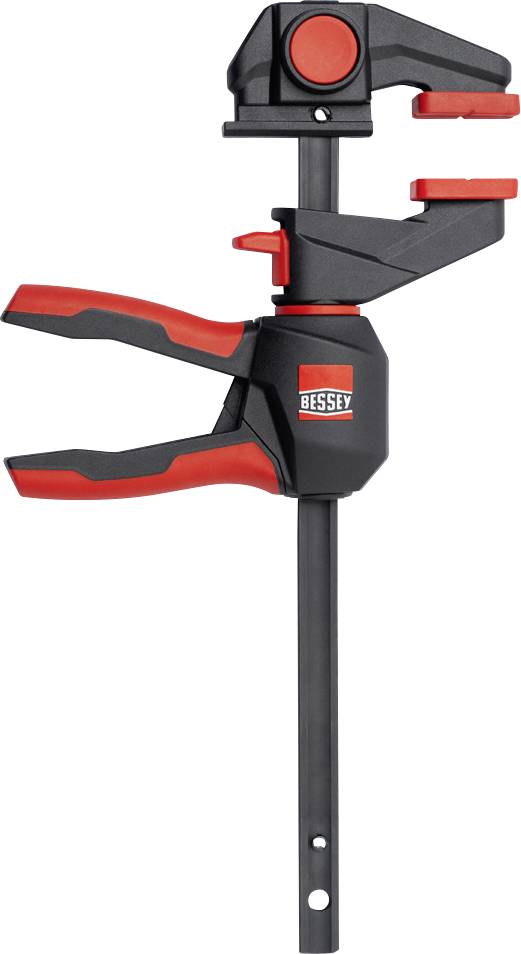

Black-and-red Bessey clamp tool with adjustable jaws and a long steel bar for gripping or holding materials securely

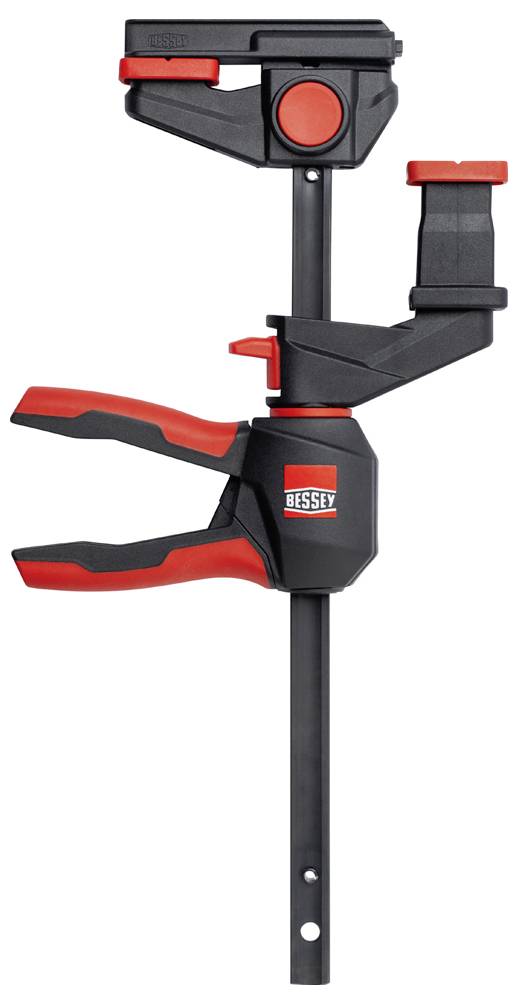

Black-and-red bar clamp tool with adjustable jaws and screw mechanism, shown upright on a white background.<br>

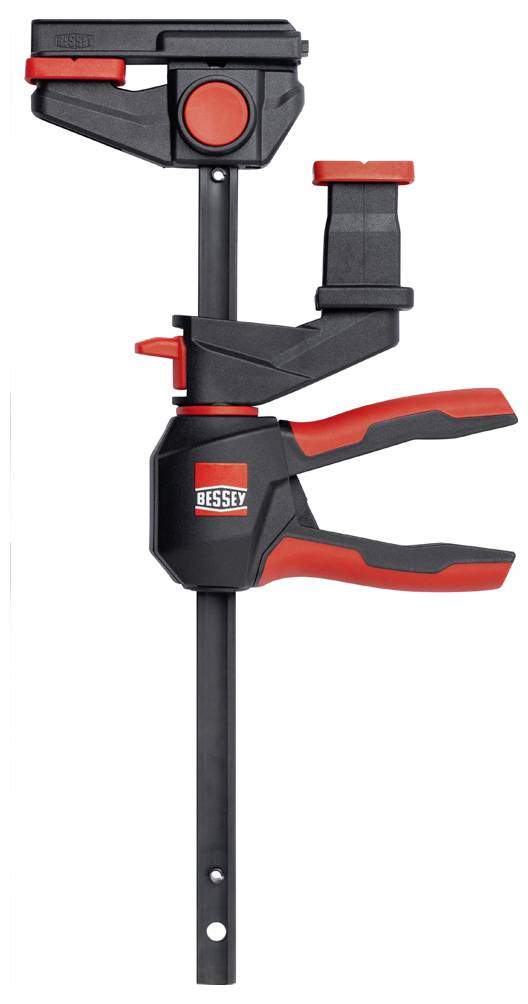

Black and red bar clamp with a vertical rail and adjustable jaws, shown isolated on a white background.

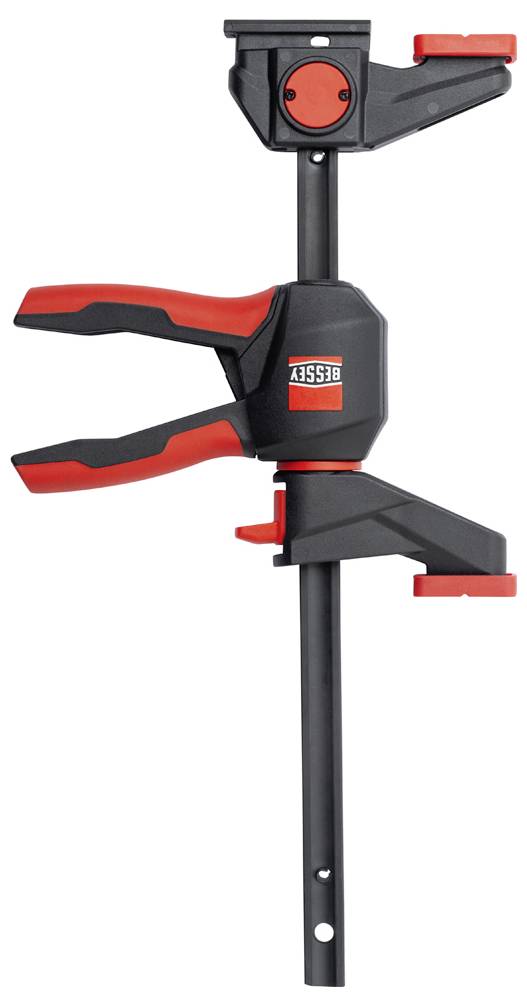

Black and red bar clamp with adjustable jaws on a vertical metal rail, isolated on a white background.

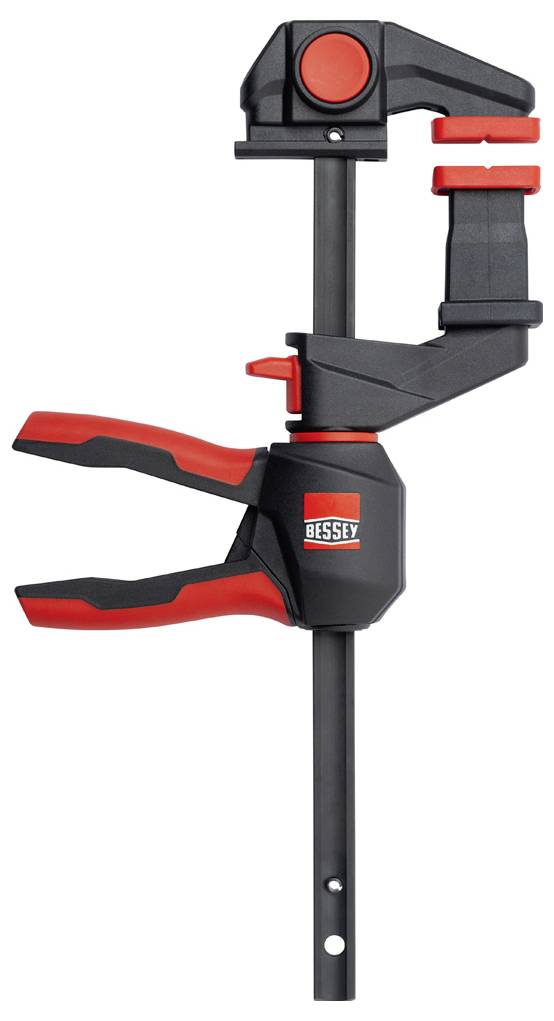

Black and red Bessey bar clamp with two jaws and a screw tightening handle on a vertical metal bar.

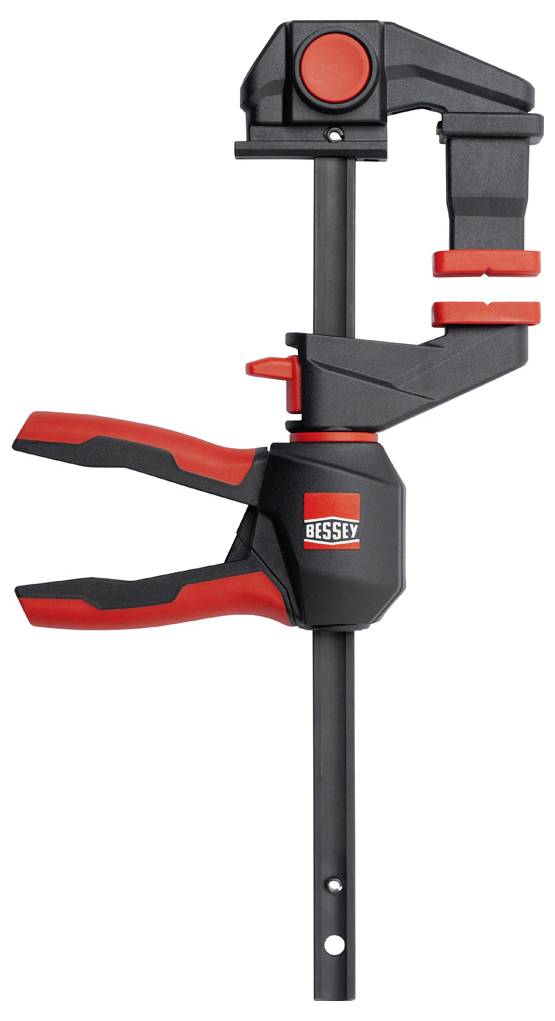

A black-and-red Bessey bar clamp with adjustable jaws and handle, shown isolated on a white background.

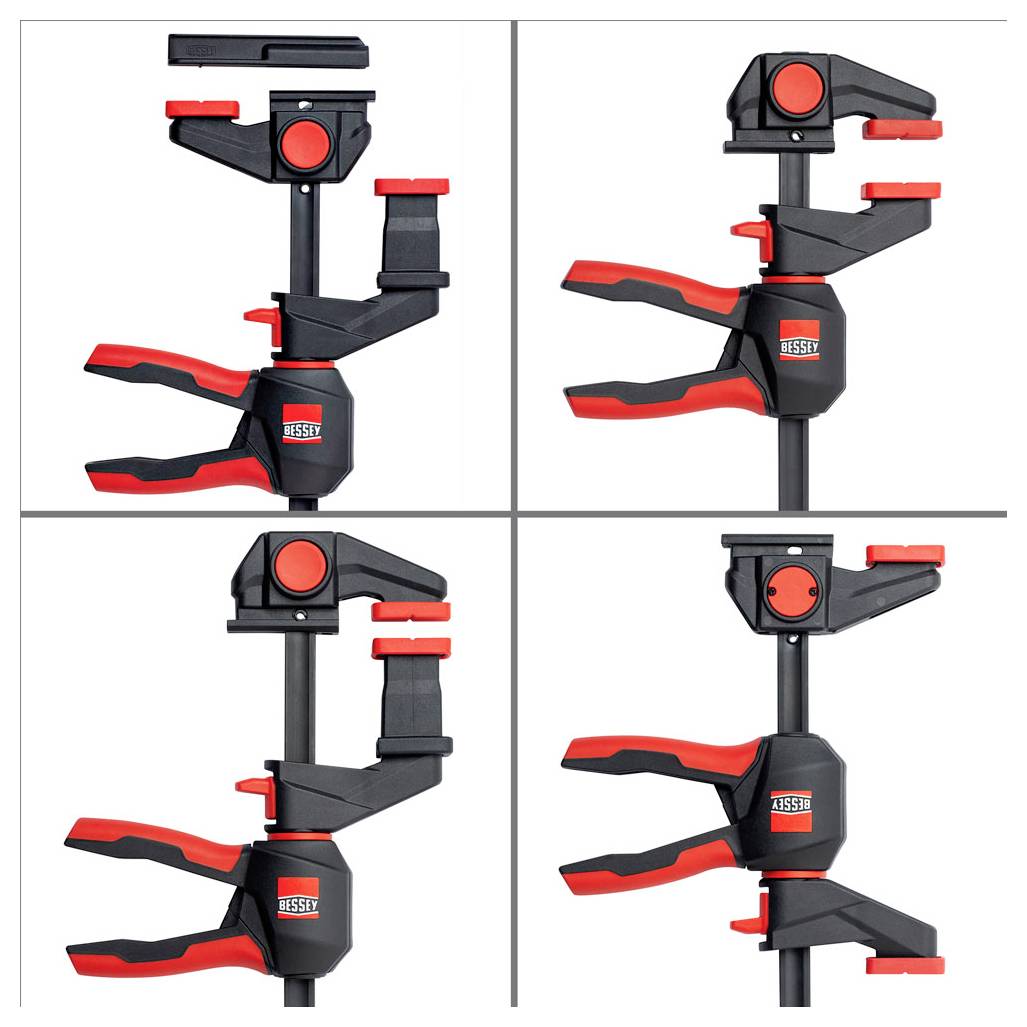

Four views of a black-and-red adjustable clamp mounted on a vertical rod, shown from different angles.

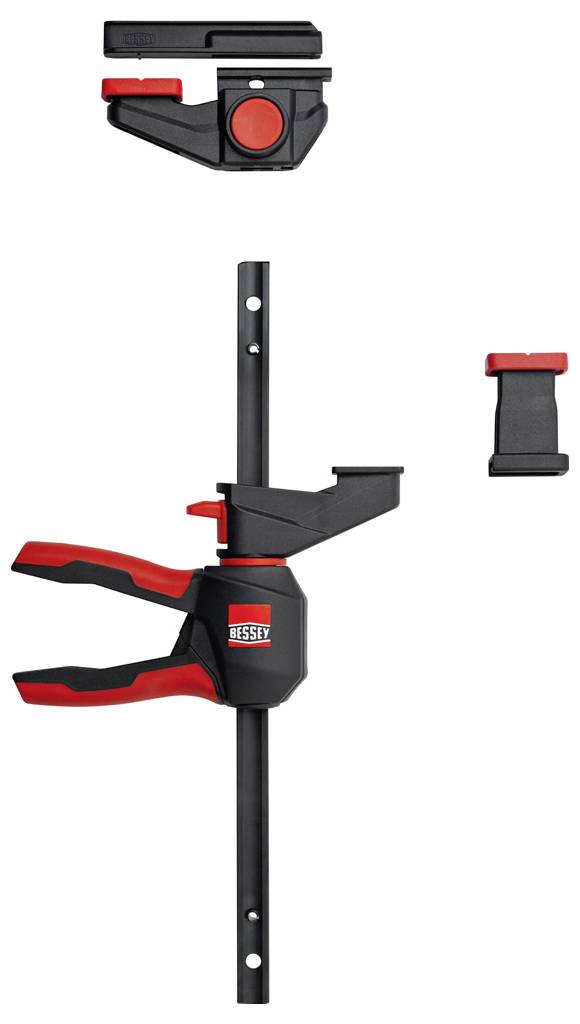

Black and red Bessey bar clamp with interchangeable jaw pieces shown in assembled and disassembled views.

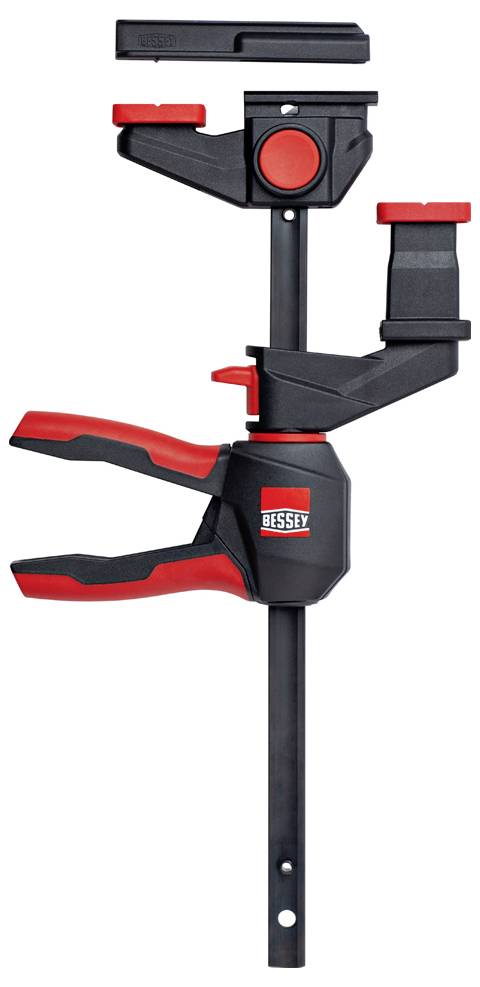

A black and red bar clamp tool with adjustable jaws and a long vertical steel bar, shown against a white background.

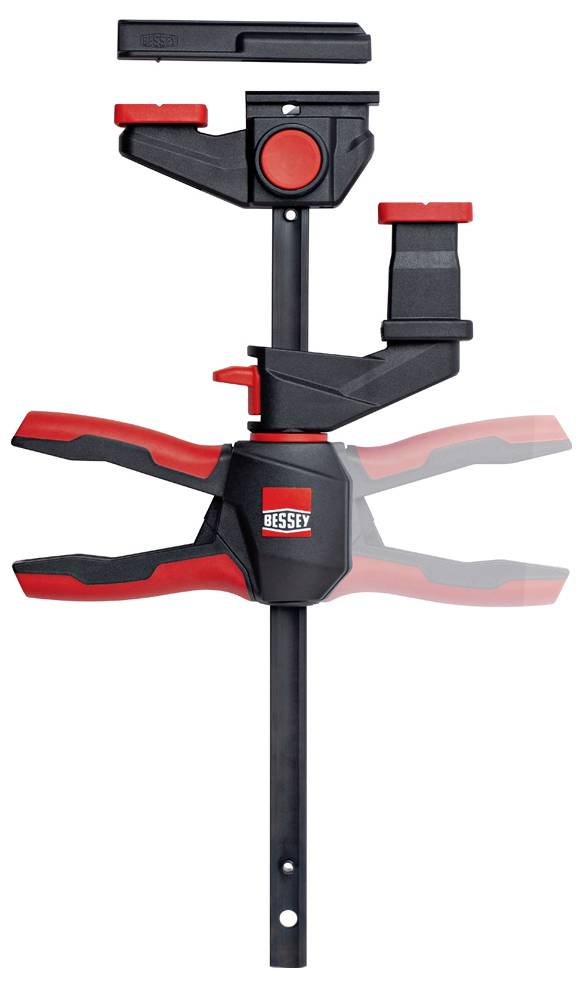

Black and red bar clamp tool with adjustable jaws and handle, shown isolated on a white background.

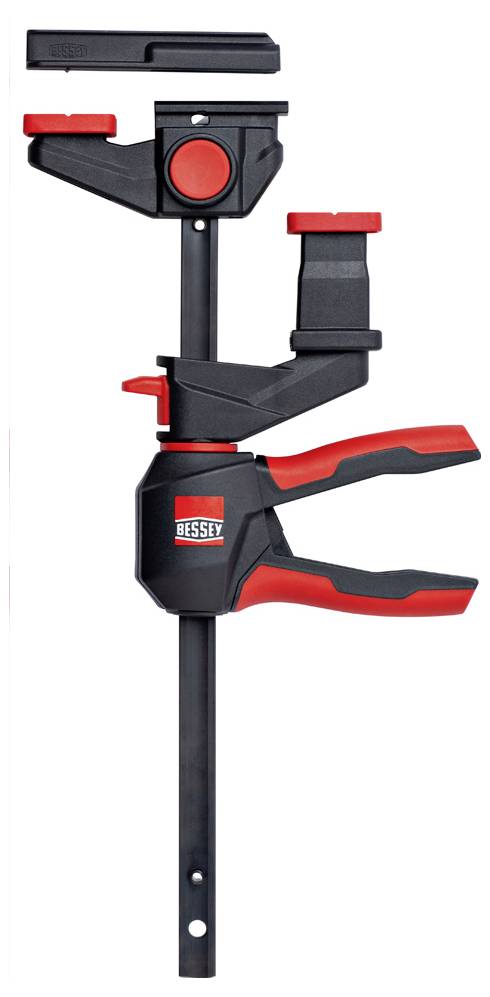

Black and red Bessey clamp tool with adjustable jaws and handle on a white background.

Adjustable red-and-black clamp with multiple ratcheting arms, shown from the front on a white background.

Red-and-black adjustable clamp shown in motion, with a rotating fan-like head and screw handle on a white background.

A red and black one-handed bar clamp with adjustable jaws, shown with motion blur as the clamp handle is rapidly tightened.

Black and red rotating clamp tool with multiple angled jaws shown in motion against a yellow circular arrow, suggesting adjustable rotation.

Three black-and-red bar clamps arranged diagonally on a white background, showing adjustable woodworking clamp tools.<br>

A man in safety glasses and ear protection clamps a wooden board on a workbench in a workshop, using a power tool for carpentry.

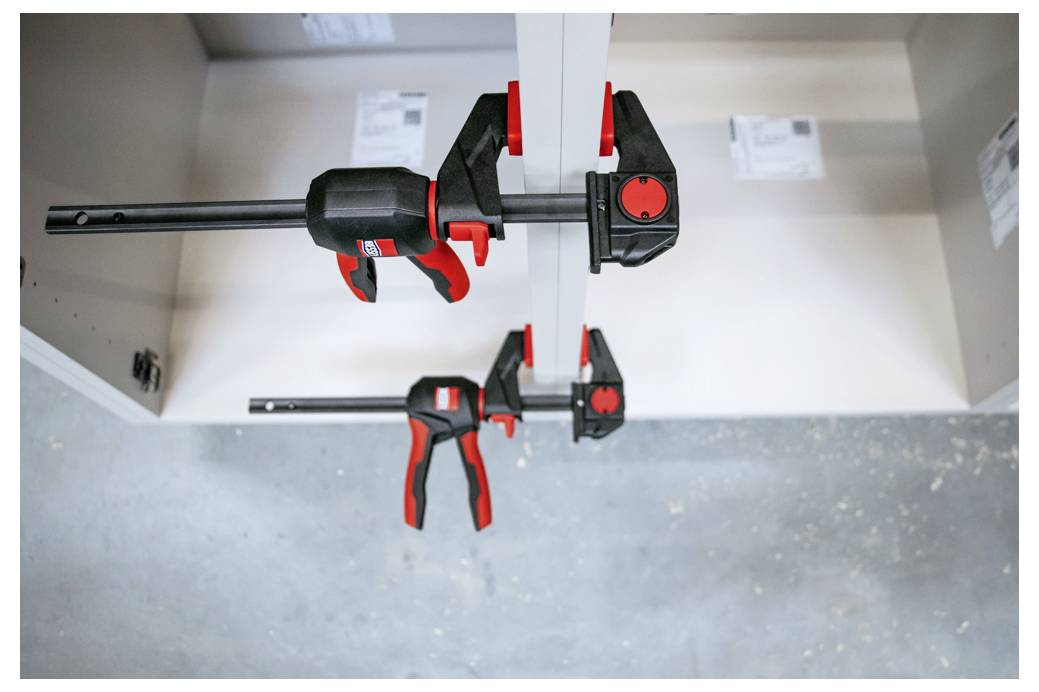

Close-up of two red-and-black bar clamps holding a vertical board together during woodworking or assembly.

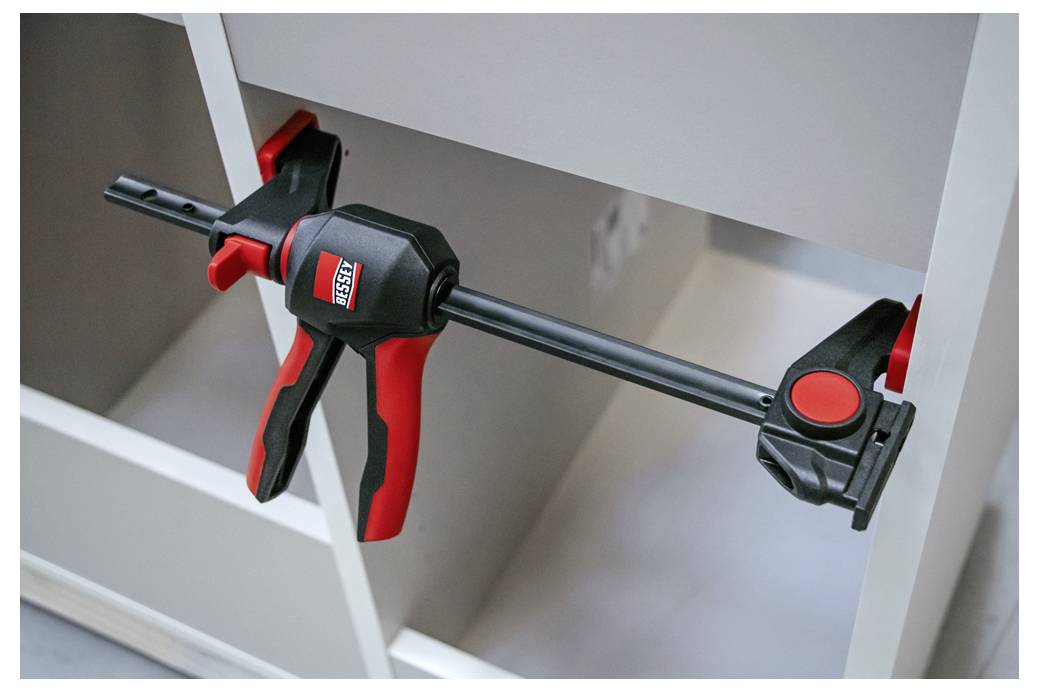

A black and red bar clamp secures a cabinet panel inside a partially assembled piece of furniture.<br>

1/19

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Single-handed desk clamp with rotating handle for EZR360 guide rails

For fixing guide rails of the brands Festool, Shaper, Hilti, Milwaukee, Makita, Metabo, hikoki, Einhell, Dewalt, etc. (slot dimensions 12 x 6.5 mm to 12 x 8 mm)
Thanks to the included and sliding adapter also suitable for Bosch, Flex, Mafelt (groove dimensions 12 × 1.8 mm)
For clamping in profiles as well as on working tables

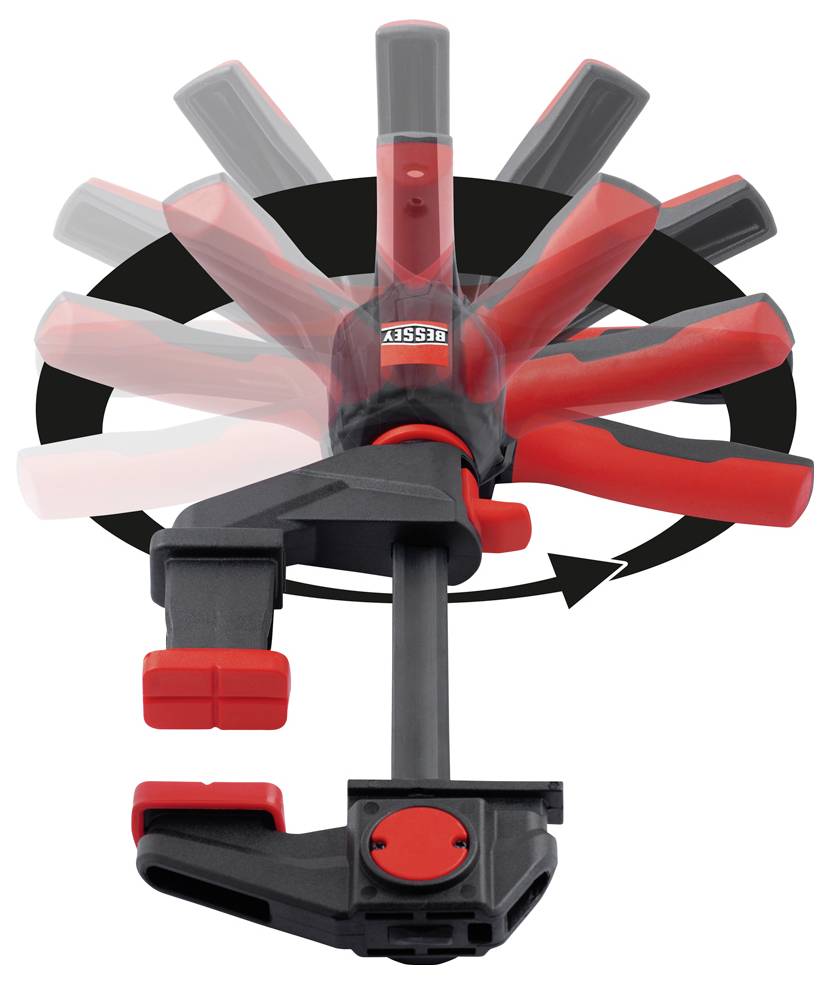

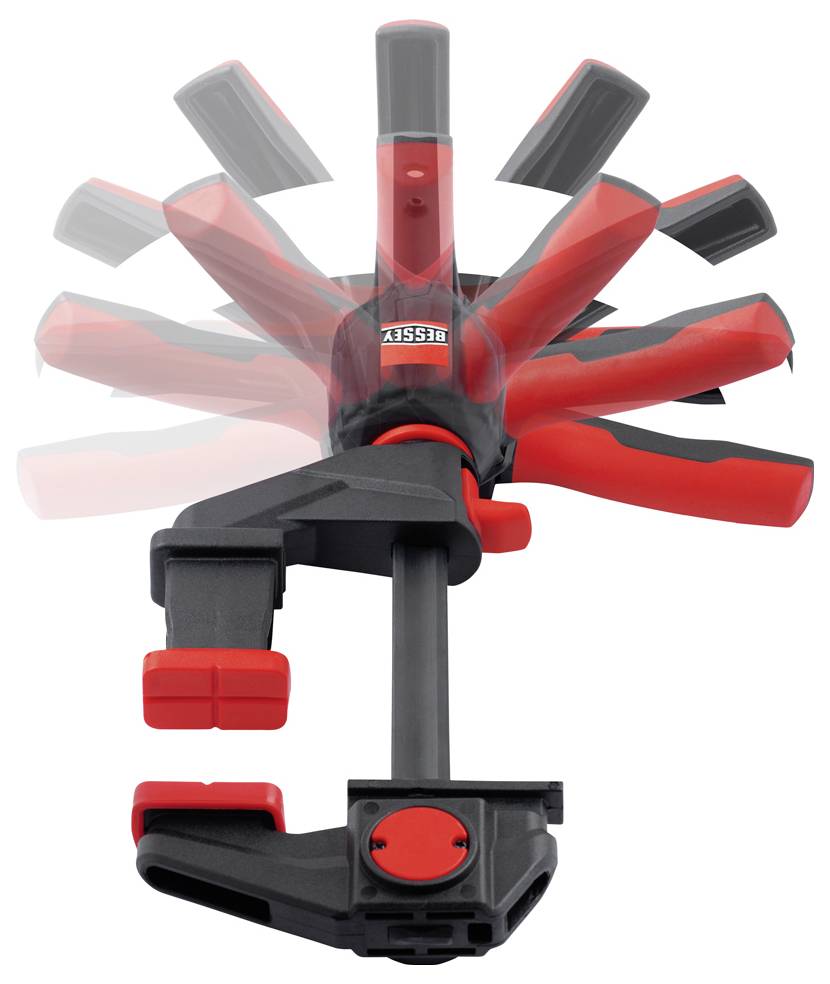

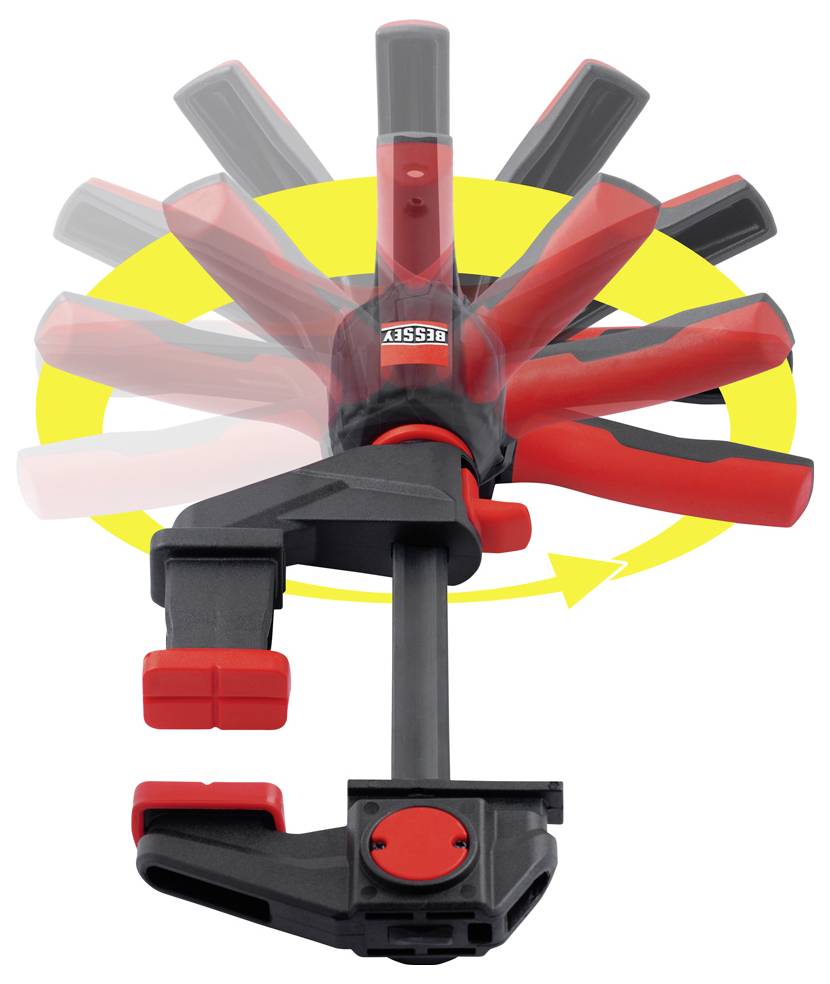

Can be used as a normal single-handed clamp for clamping – also covering all aspects – and spreading; innovative 360° rotation mechanism enables the positioning of the grip unit around the rail – even before and after the clamp is fixed

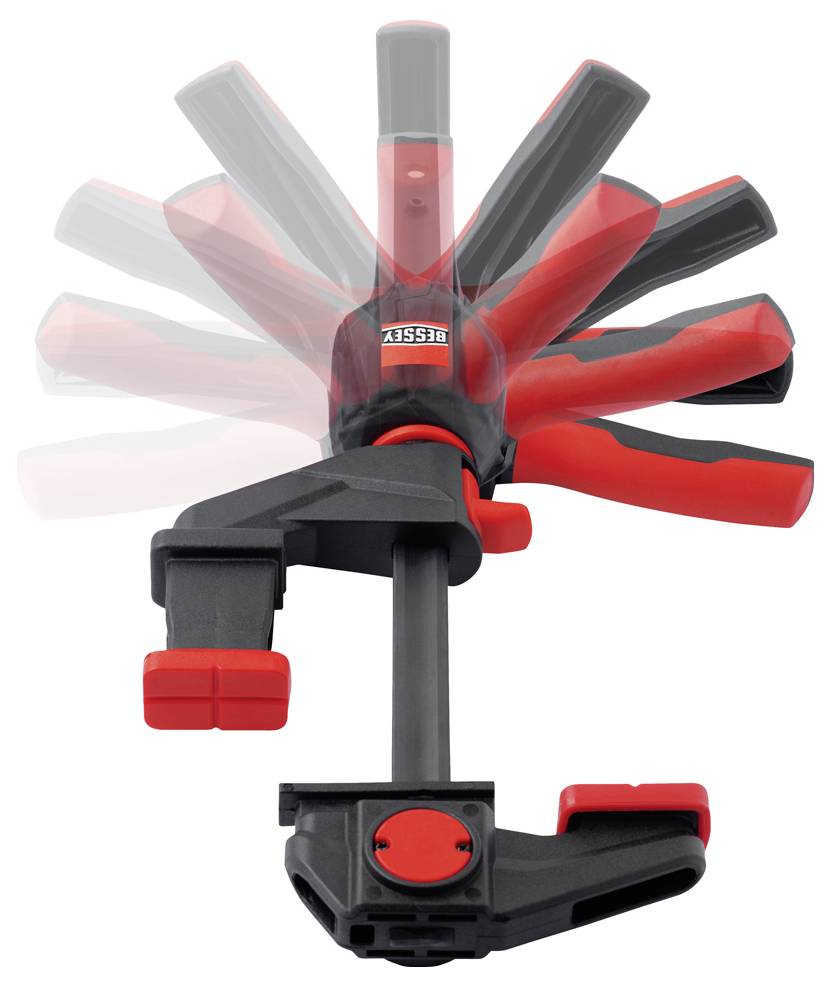

12-stage locking mechanism for a secure holding of the selected grip position
Tensioning force of up to 750 N / 75 kg / 165 lbs

Technical specifications

Product type: F clamp

Span width (max.): 150 mm

Nosing: 60 mm

Weight: 0.961 kg

Content: 1 Set

Spreading range: 150–335 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3760784 Bessey EZR360-15SET F clamp Span width (max.):150 mm Nosing length:60 mm

Description

Versatile use

These clamps offer a wide range of usage possibilities – as table clamp as well as one-handed clamp:

With attachment on lower section and upside down for secure fixing of Festool, Shaper, Hilti, Milwaukee, Makita guide rails, Metabo, hikoki, Einhell, Dewalt, etc. and for clamping in profiles as well as on working tables
With additional adapter on the upper part also for fixing the guide rails of the brands Bosch, Flex, Mafelt
With top or bottom attachment for comprehensive clamping
For flexible clamping or spreading, thanks to innovative 360° rotation mechanism

Extremely comfortable to use
On the one hand, the handle can be positioned in such a way that an optimum pump position and thus better application of force is achieved. On the other hand, the grip can be swiveled from the working area also after the clamping process and thus enables the placing of several clamps in the tightest of spaces when used as a single-handed clamp:

Through the high-quality 2-component plastic handle with pump lever, which rotates completely around the rail and can be locked in 12 positions securely
By the release lever at the sliding bar for a quick adjustment of the clamping span and release of the clamp
The cross prism integrated in the plastic protective caps for secure fixing of round, pointed and edged parts

Rugged design
Modern look meets long life:

By using high-quality materials such as glass-fiber reinforced polyamide for the upper and lower sections as well as tempered and browned steel for the hollow profile rail
The handle mechanism is protected against dust and chips by the plastic housing

This text is machine translated.

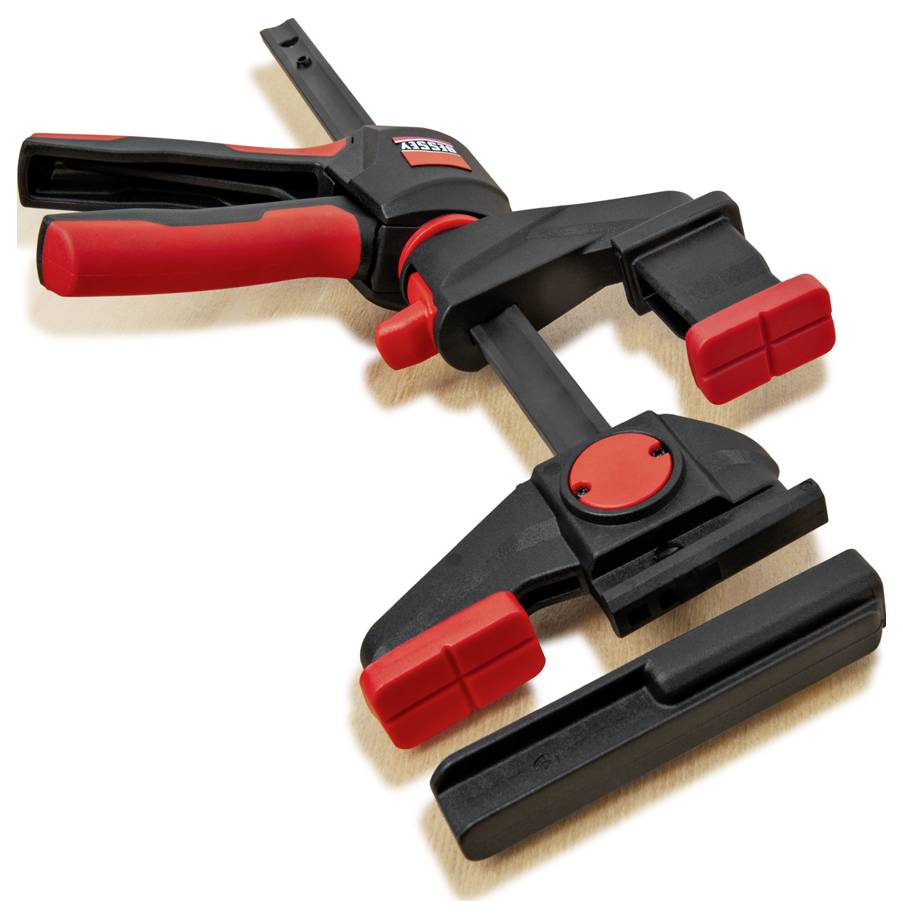

Scope of delivery

2 x clamp EZR360-15
2 x adaptors
