1/7
Bessey GM30Z-2K Clamp Span width (max.):300 mm Product size (length): 400 mm Nosing length:140 mm
EAN:
Part number:
Item no:
Highlights & Details
OMEGA 5117 GMT-2K 300/140
- Clamping force up to 5,000 N
- High-quality 2-component plastic handle

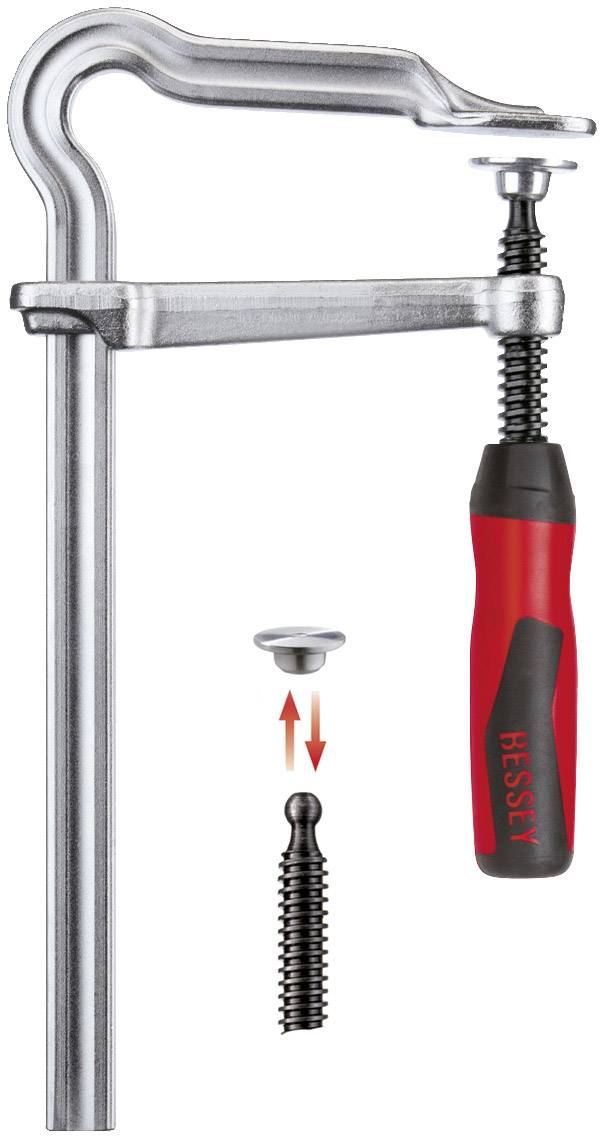

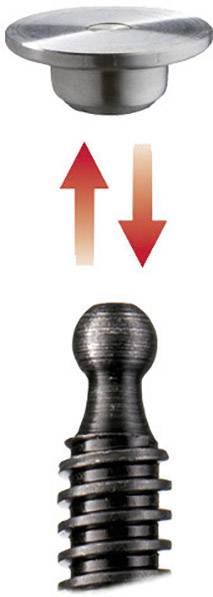

- Pressure plates can be replaced with no need for tools
- Fixed jaw and sliding arm are constructed of tempered steel for resilient clamping
- Universally applicable within the fields of wood
Technical specifications
- Rail Profile width: 25 mm
- rail profile thickness: 12 mm
- Product type
Clamp
- Span width (max.)
300 mm
- Nosing
140 mm
- Length
400 mm
- Weight
1910 g
- Content
1 pc(s)
- Width
200 mm
- Tension
5000 N
- Height
40 mm
- Clamping range
300 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 814865 Bessey GM30Z-2K Clamp Span width (max.):300 mm Product size (length): 400 mm Nosing length:140 mm
Description
The clamping force of up to 5000 N. high-quality 2-component plastic handle. Manually changeable pressure discs. Tempered sliding and fixed bracket for elastic and elastic tension Universal application in wood and metal processing.
