Bessey GZ30K L clamp Span width (max.):300 mm Nosing length:140 mm
EAN:
Part number:
Item no:
Highlights & Details
All steel screw clamp GZ-K 300/140
- 20 % more clamping force per spindle rotation with optimised rail profile
- Maximum security with linear transfer of force at the sliding arm
- Clamping force up to 6,000 N
- Fixed jaw and sliding arm are constructed of tempered steel for resilient clamping
- Tom
Technical specifications
- Product type
L clamp
- Span width (max.)
300 mm
- Nosing
140 mm
- Weight
1.891 kg
- Content
1 pc(s)
- Clamping range
300 mm mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 647117 Bessey GZ30K L clamp Span width (max.):300 mm Nosing length:140 mm
Description
Features
- 20% more clamping force per spindle revolution by optimized rail profile
- Highest safety by direct transmission of power at pantograph
- Tempered sliding and fixed bracket for elastic and elastic tension
- T-handle with rounded ends for easy transmission of power when hooking up

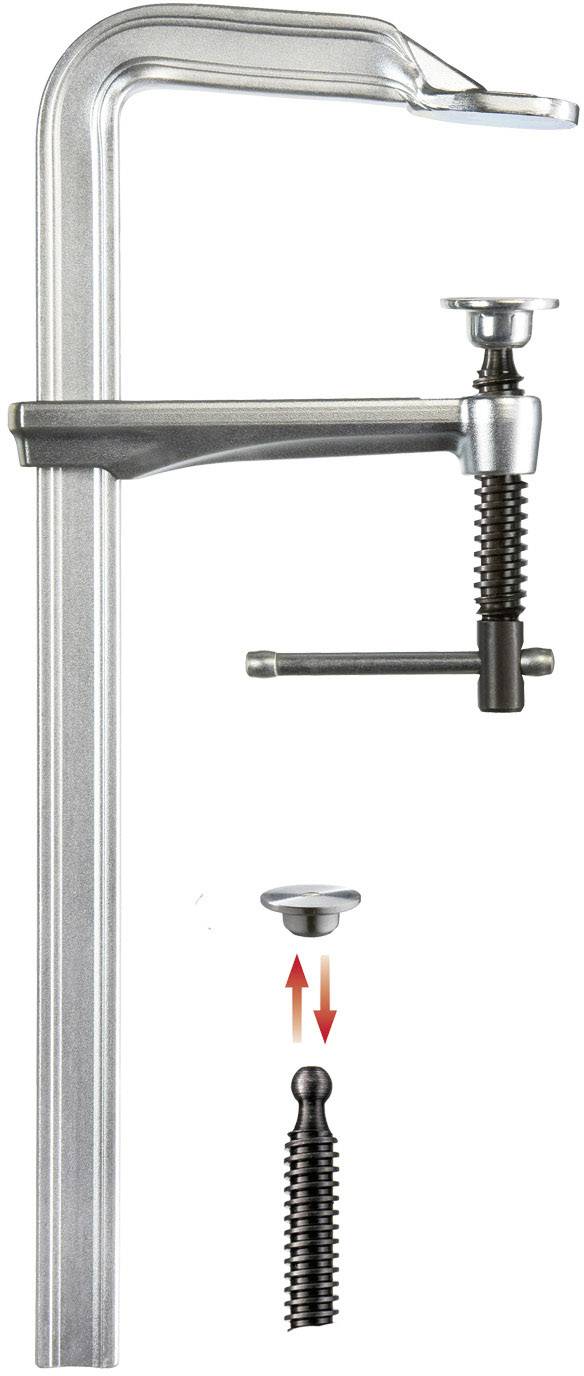

- Manually changeable pressure discs
Hints
This text is machine translated.
