1/8

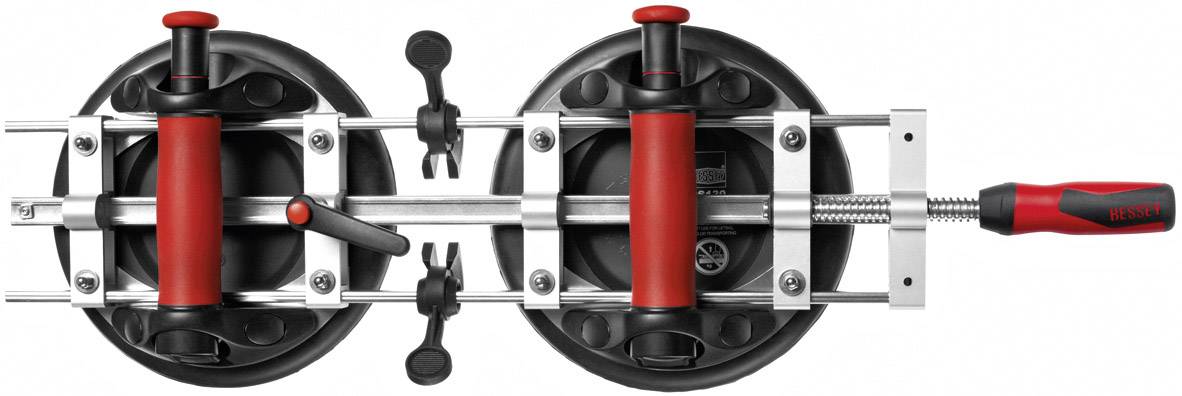

Bessey PS130 L clamp Span width (max.):130 mm Product size (length): 770 mm
EAN:
Part number:
Item no:
Highlights & Details
Drive tightener, big and strong PS 130

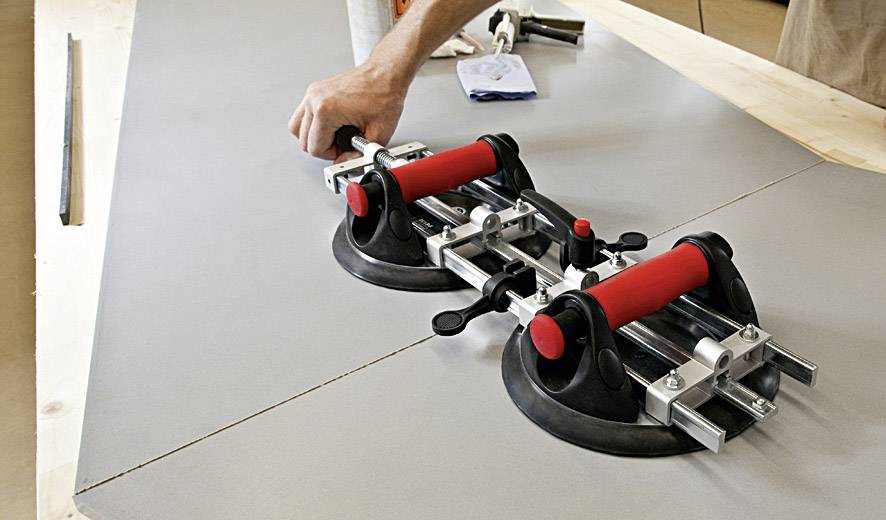

- For clamping and positioning large and potentially heavy components with a smooth surface, such as artificial stone, ceramic, granite, Corian®, plastic, sheet metal and glass
- Manual vacuum pumps for maximum suction power, and therefore a maximum level of
Technical specifications
- Product type
L clamp
- Span width (max.)
130 mm
- Length
770 mm
- Weight
4.08 kg
- Content
1 pc(s)
- Width
215 mm
- Clamping range
5 - 130 mm mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 647271 Bessey PS130 L clamp Span width (max.):130 mm Product size (length): 770 mm
Description
Features
- The brace and positioning of large-scale, even heavier components with a smooth surface, such as Artificial stone, ceramic, granite, Corian®, plastic, sheet metal and glass

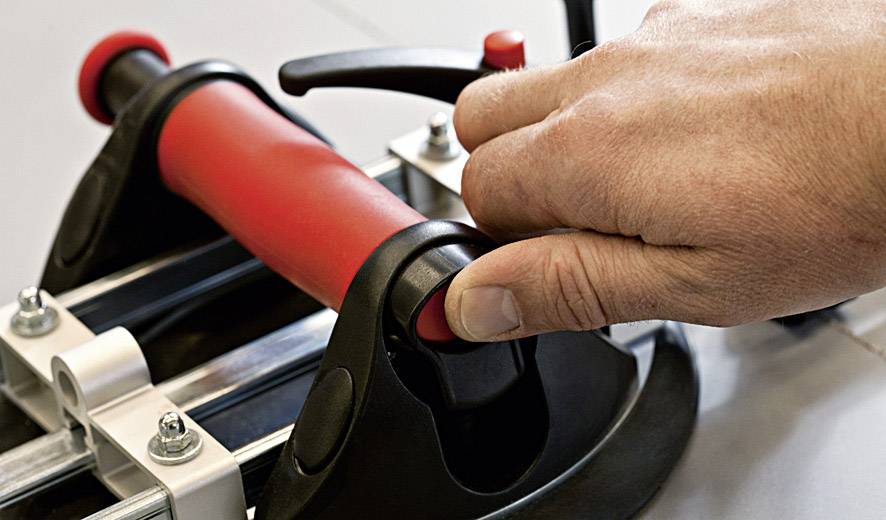

- Manual Vacuum Pumps for maximum suction power and thus the highest horizontal clamping force with up to 1,200 N

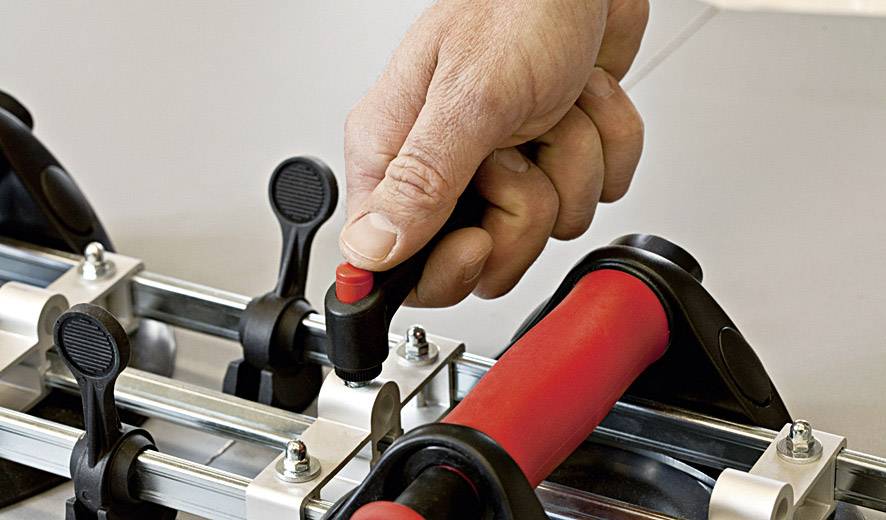

- Marking ring on the pump plunger for permanent monitoring of safe vacuum

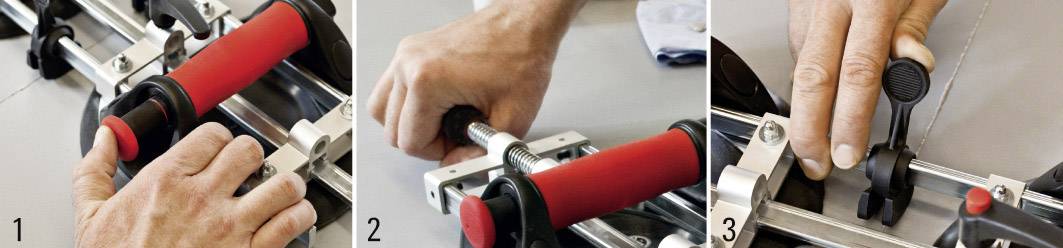

- Practical quick adjustment function for fast distance setting the two vacuum suction
Hints
This text is machine translated.
