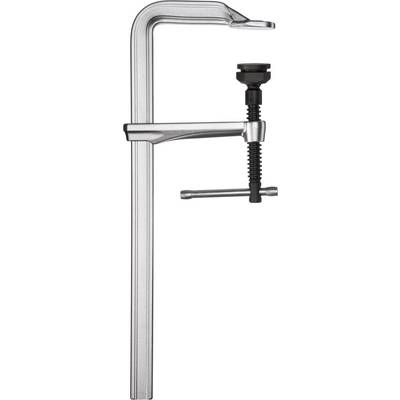

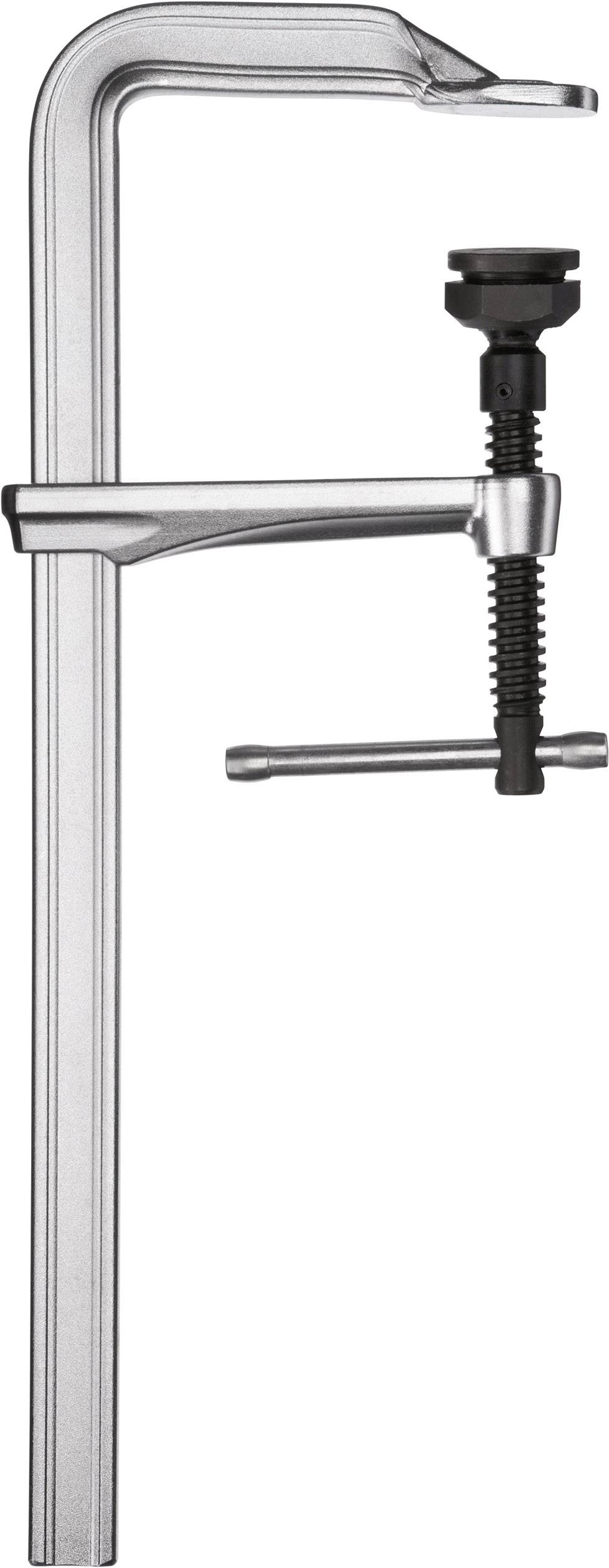

Bessey SG100M L clamp Span width (max.):1000 mm Product size (length): 1150 mm Nosing length:140 mm
EAN:
Part number:
Item no:
Highlights & Details
High-power clamp SGM 1000/140
- Clamping force up to 12,000 N at tightening torque of 40 Nm
- 20 % more clamping force per spindle rotation with optimised rail profile
- Maximum safety due to the better linear transfer of force of the sliding arm
- Long life due to heat-resistant pressure pla
Technical specifications
- Product type
L clamp
- Span width (max.)
1000 mm
- Nosing
140 mm
- Length
1150 mm
- Weight
4.95 kg
- Content
1 pc(s)
- Width
205 mm
- Height
40 mm
- Material
Steel
- Clamping range
1000 mm mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 647152 Bessey SG100M L clamp Span width (max.):1000 mm Product size (length): 1150 mm Nosing length:140 mm
Description
Features
- The clamping force of up to 12,000 N at a tightening torque of 40 Nm
- 20% more clamping force per spindle revolution by optimized rail profile
- Highest safety by direct transmission of power at pantograph
- Long life thanks to the special heat-resistant pressure plate with sintered steel insert, can be tilted up to 35°
Hints
