High-power clamp STBM 600/175 Bessey STB60M Span width (max.):600 mm Product size (length): 750 mm Nosing length:175 mm
EAN:
Part number:
Item no:
Highlights & Details

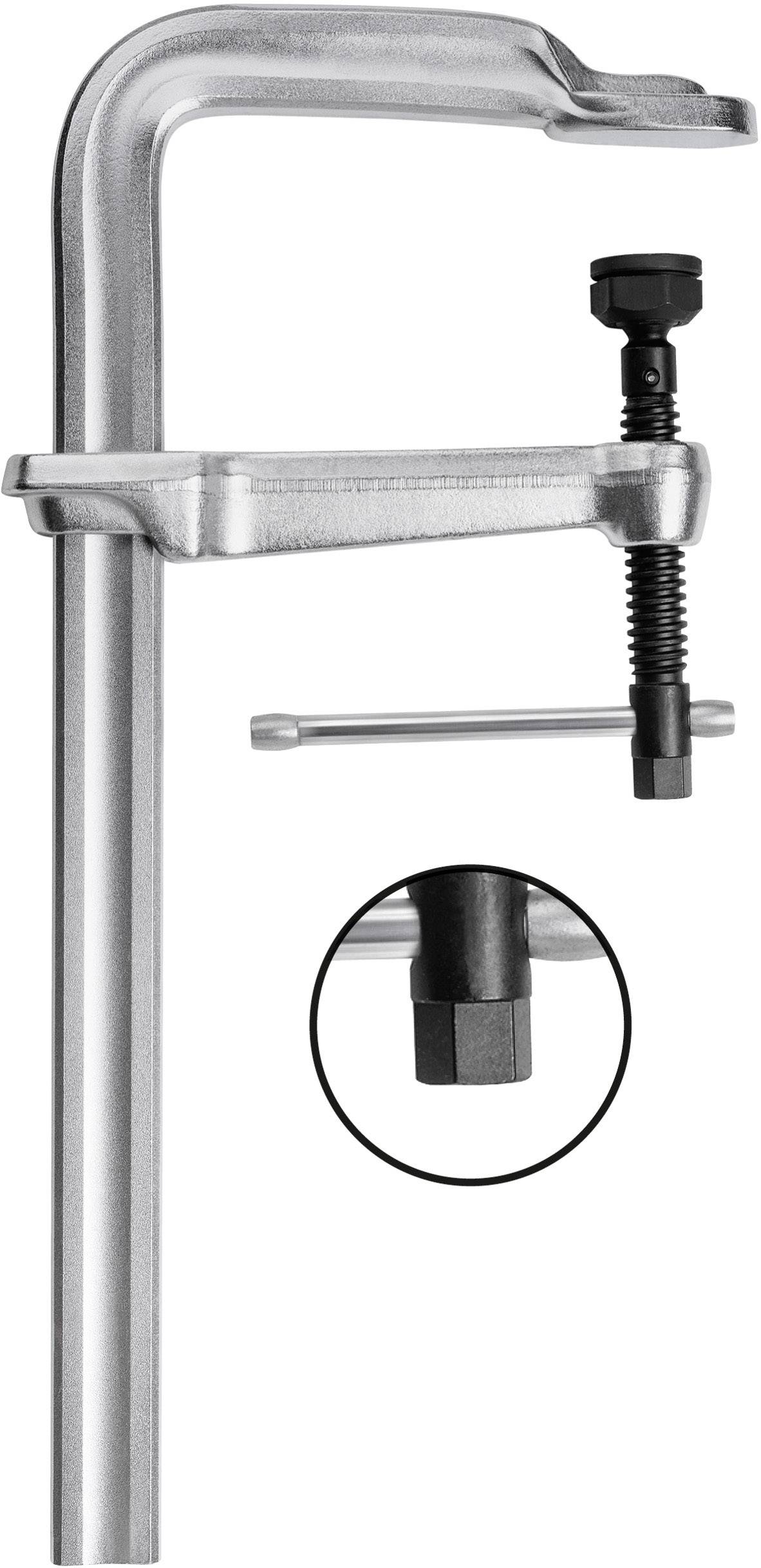

High-power clamp STBM 600/175
- Clamping force up to 22,000 N at tightening torque of 70 Nm
- Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35°
- With 19 mm hexagonal bolt on the end of the spindle
Technical specifications
- Product type
L clamp
- Span width (max.)
600 mm
- Nosing
175 mm
- Length
750 mm
- Weight
7.23 kg
- Content
1 pc(s)
- Width
270 mm
- Height
50 mm
- Clamping range
600 mm mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 647160 High-power clamp STBM 600/175 Bessey STB60M Span width (max.):600 mm Product size (length): 750 mm Nosing length:175 mm
Description
Features
- The clamping force of up to 22,000 N at a tightening torque of 70 Nm
- Long life thanks to the special heat-resistant pressure plate with sintered steel insert, can be tilted up to 35°
- With hexagonal 19 mm at the locker woes
Hints
This text is machine translated.
