Bessey STB80M L clamp Span width (max.):800 mm Product size (length): 955 mm Nosing length:175 mm
EAN:
Part number:
Item no:
Highlights & Details
High-power clamp STBM 800/175
- Clamping force up to 22,000 N at tightening torque of 70 Nm
- Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35°

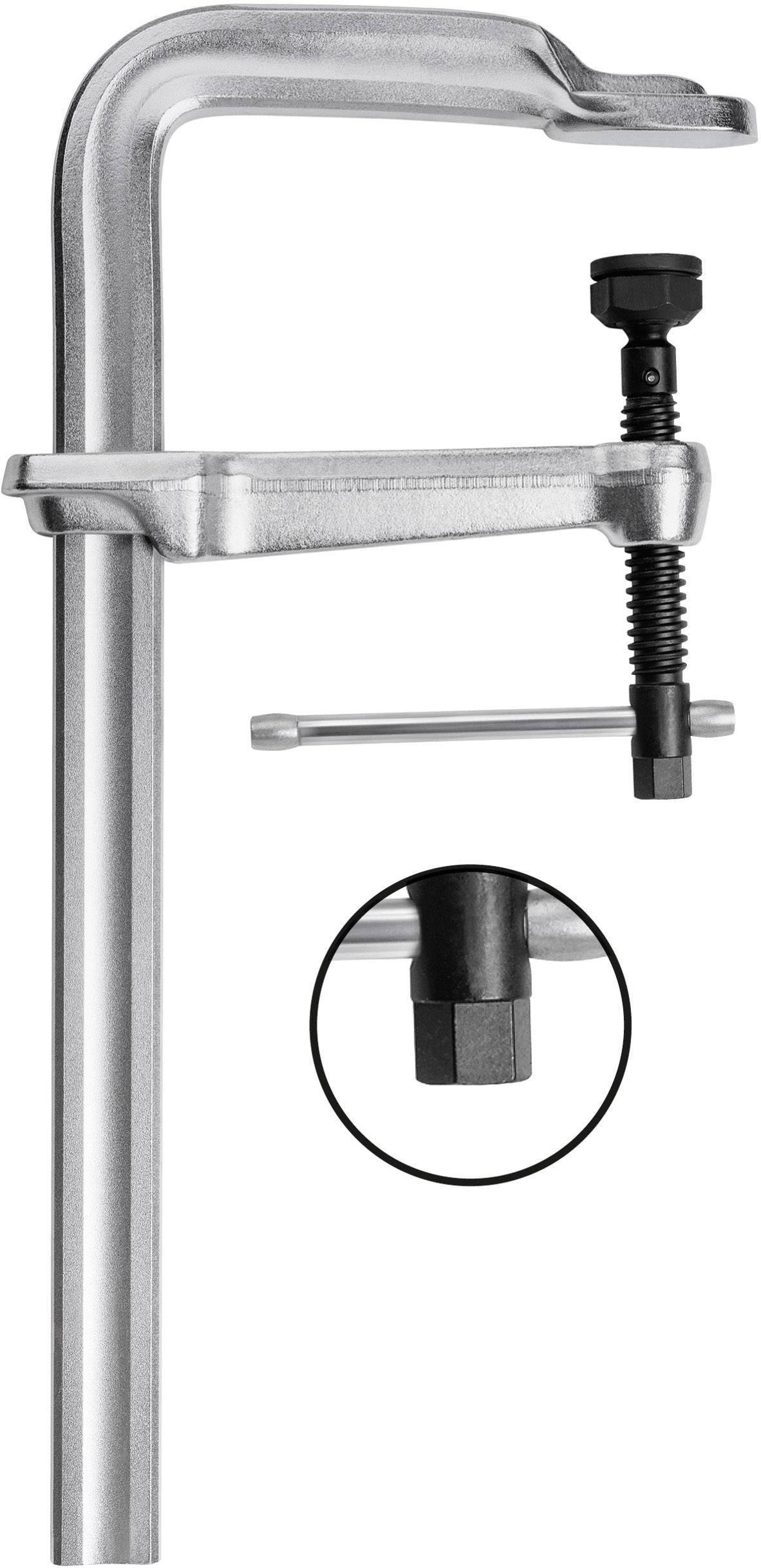

- With 19 mm hexagonal bolt on the end of the spindle
Technical specifications
- Product type
L clamp
- Span width (max.)
800 mm
- Nosing
175 mm
- Length
955 mm
- Weight
8.35 kg
- Content
1 pc(s)
- Width
260 mm
- Height
50 mm
- Clamping range
800 mm mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 647161 Bessey STB80M L clamp Span width (max.):800 mm Product size (length): 955 mm Nosing length:175 mm
Description
Features
- The clamping force of up to 22,000 N at a tightening torque of 70 Nm
- Long life thanks to the special heat-resistant pressure plate with sintered steel insert, can be tilted up to 35°
- With hexagonal 19 mm at the locker woes
