Bessey TG12 L clamp Span width (max.):120 mm Product size (length): 180 mm Nosing length:60 mm
EAN:
Part number:
Item no:
Highlights & Details
Malleable screw clamp TG 120/60
- Clamping force up to 6,000 N
- Ergonomically shaped wood handle

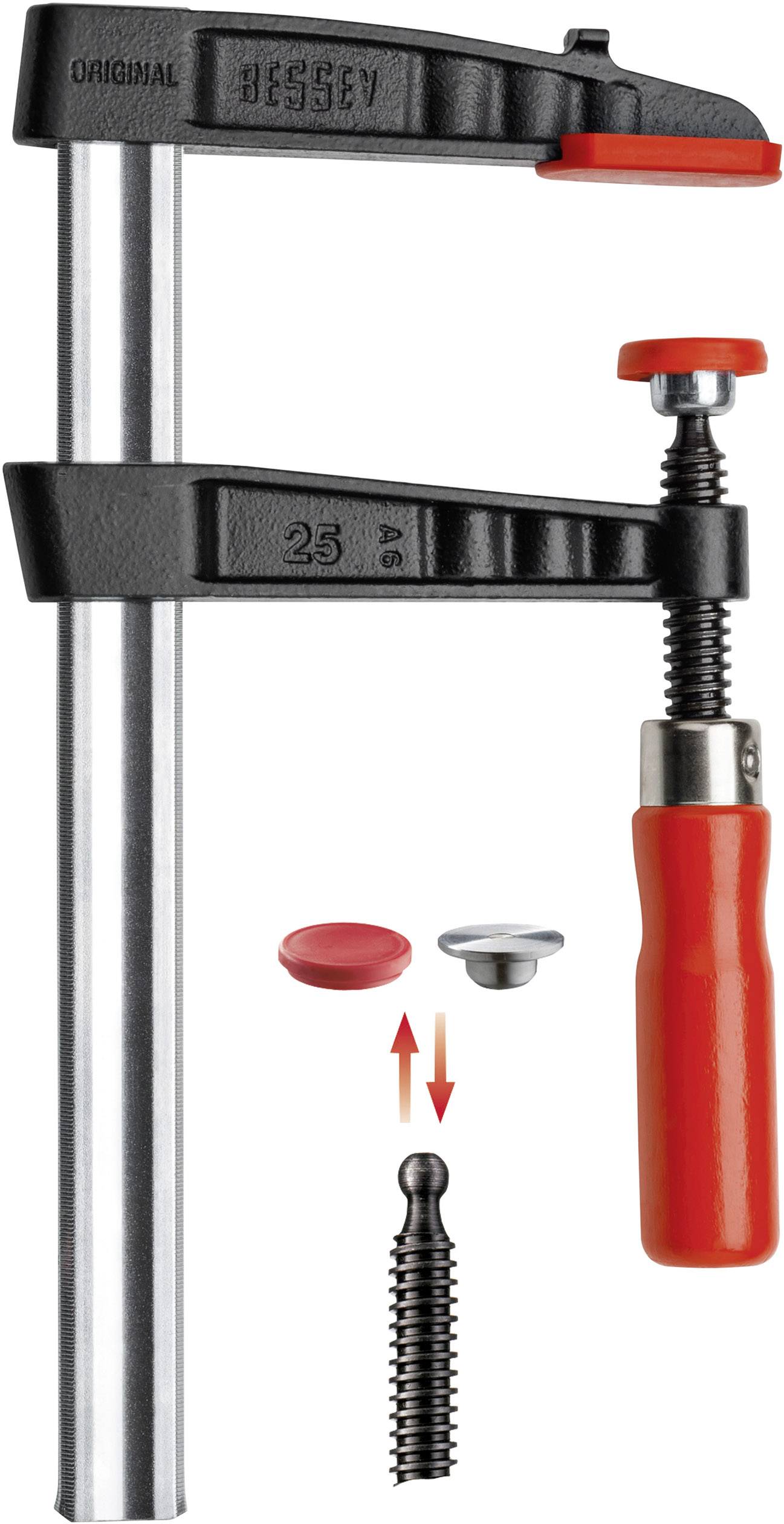

- Pressure plates can be replaced by hand – no tools required (from 80 mm throat depth)
- With protective caps on the clamping surfaces
- Stable profiled rail with serration
- BESSEY anti-slip system (
Technical specifications
- Product type
L clamp
- Span width (max.)
120 mm
- Nosing
60 mm
- Length
180 mm
- Weight
0.423 kg
- Content
1 pc(s)
- Width
100 mm
- Height
22 mm
- Clamping range
120 mm mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 646899 Bessey TG12 L clamp Span width (max.):120 mm Product size (length): 180 mm Nosing length:60 mm
Description
Features
- Ergonomically designed wooden handle
- With protective caps on the clamping surfaces
- Sturdy hollow profile rails with fluting
