Name: Bessey TG16 Clamp Span width (max.):160 mm Product size (length): 235 mm Nosing length:80 mm
Brand: Bessey
SKU: 576991

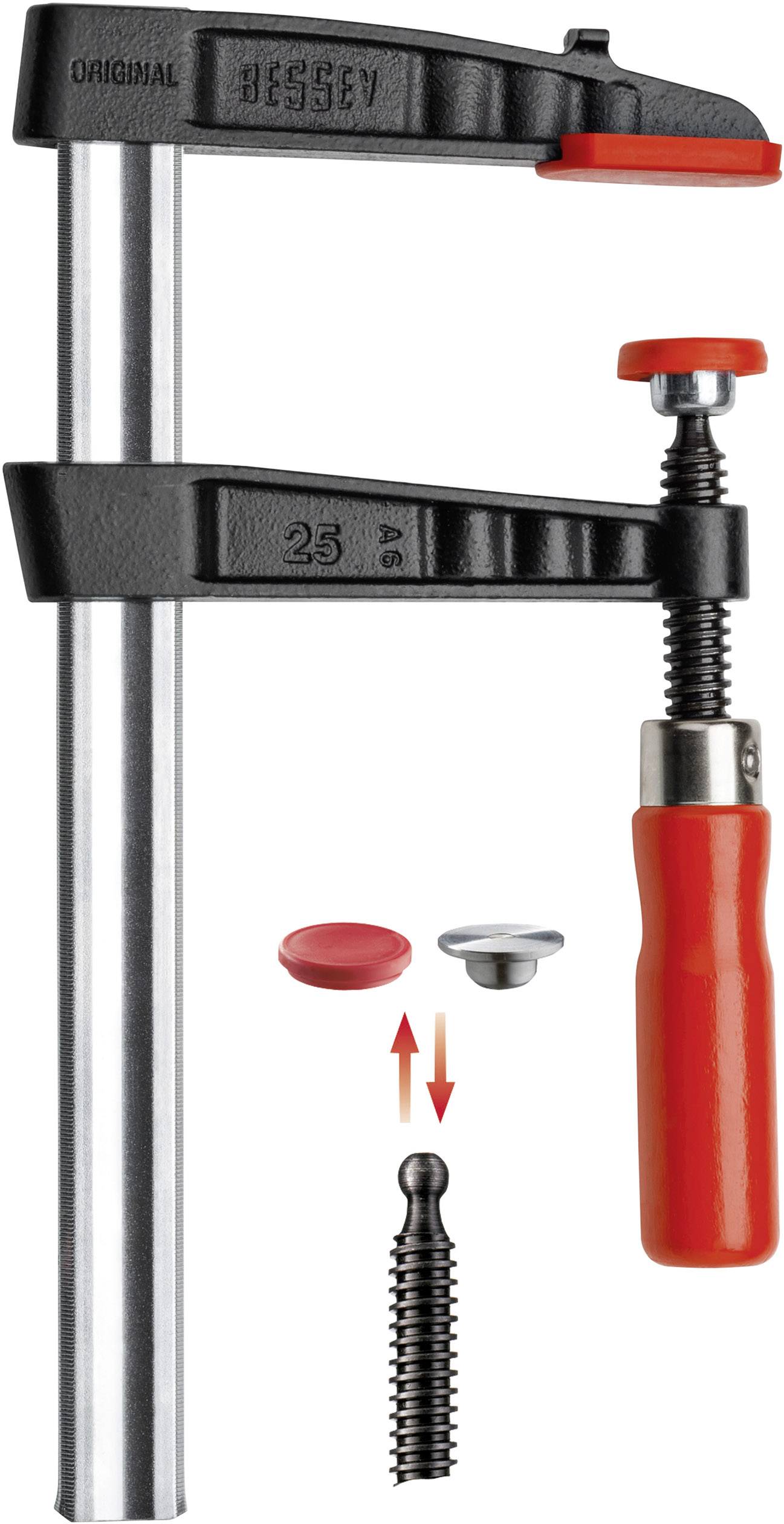

'G-clamp' with red handle and metal bar. Spare parts illustrated. Adaptable and versatile.

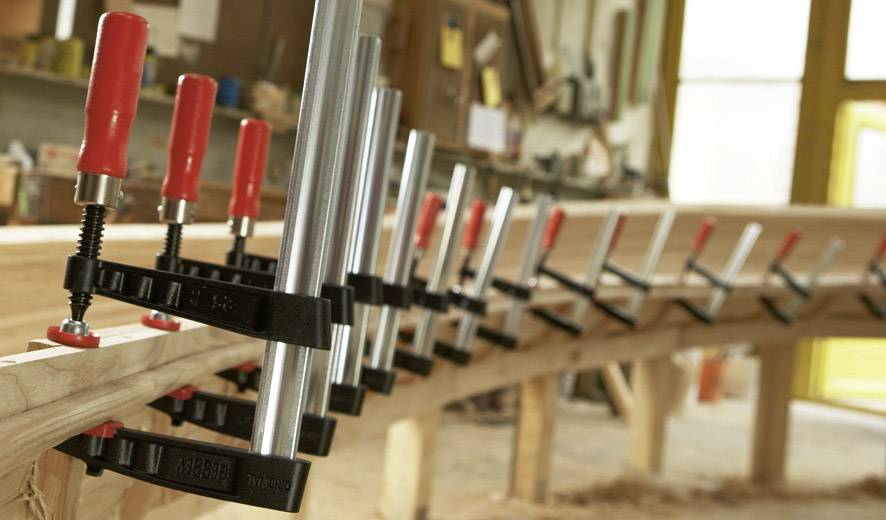

Woodworking: Several G-clamps hold a curved piece of wood firmly in a workshop.

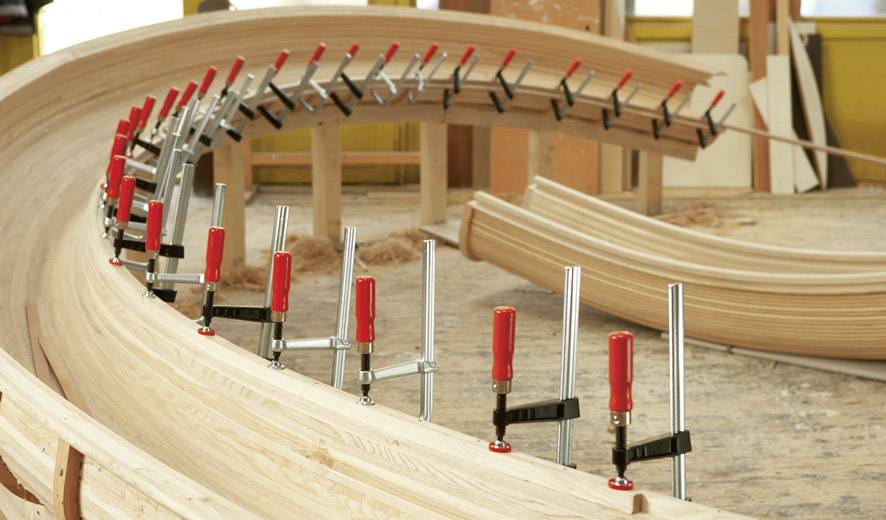

Wood Bending Process: Several pieces of wood are secured with red clamps in a curved pattern to form uniform curves.

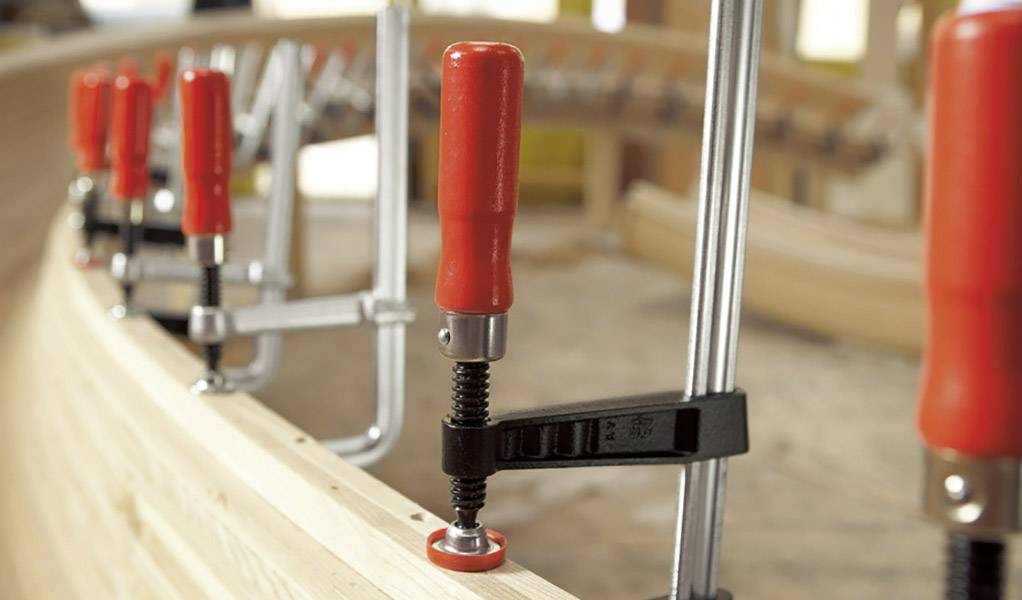

Several red G-clamps are holding pieces of wood together in a workshop. The focus is on the clamps, which provide stability.

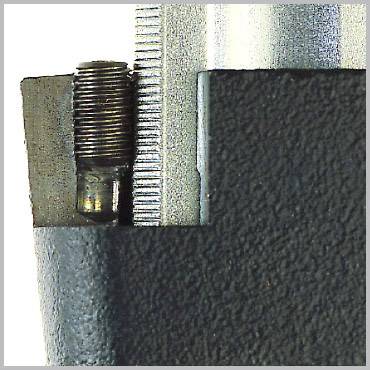

Close-up of a metallic component with a screw and a ridged surface.

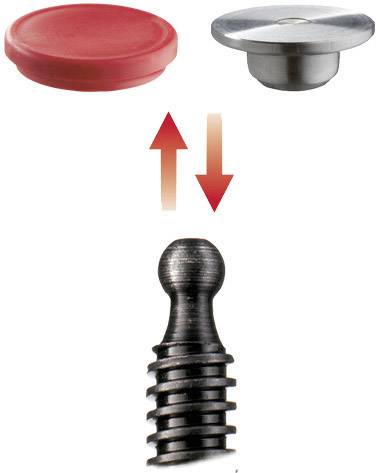

A red stopper and a metal button are shown with double arrows above a spring, illustrating a mechanical connection.

1/6

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Malleable cast iron collar, max. span width mm: 160

Clamping force up to 6,000 N
Ergonomically shaped wood handle
Pressure plates can be replaced by hand – no tools required (from 80 mm throat depth)
With protective caps on the clamping surfaces
Stable profiled rail with serration
BESSEY anti-slip system (

Technical specifications

Product type: Clamp

Span width (max.): 160 mm

Nosing: 80 mm

Length: 235 mm

Weight: 655 kg

Content: 1 pc(s)

Width: 135 mm

Tension: 6000 N

Height: 30 mm

Clamping range: 160 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 576991 Bessey TG16 Clamp Span width (max.):160 mm Product size (length): 235 mm Nosing length:80 mm

Description

Through waves reinforced cast iron, from 80 mm depth with anti-slip device, and plastic protection caps. Quality hollow profile rails, burnished spindle with movable mounted, cold flow pressed pressure plate and ergonomically designed wooden handle. The clamping force of up to 6000 N.
