1/4
Bessey TG30 L clamp Span width (max.):300 mm Product size (length): 400 mm Nosing length:140 mm
EAN:
Part number:
Item no:
Highlights & Details
Malleable screw clamp TG 300/140
- Clamping force up to 6,000 N
- Ergonomically shaped wood handle

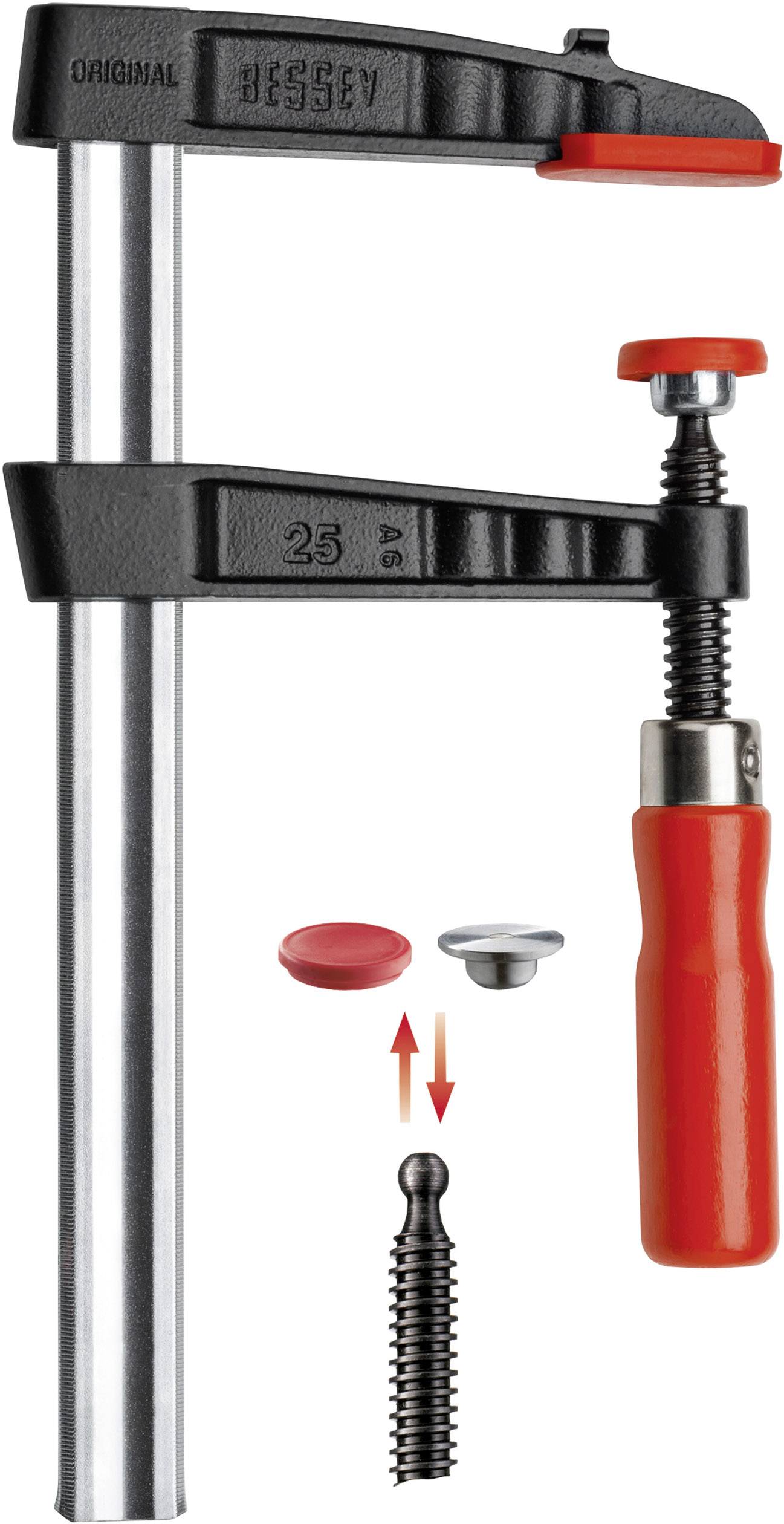

- Pressure plates can be replaced by hand – no tools required (from 80 mm throat depth)
- With protective caps on the clamping surfaces
- Stable profiled rail with serration
- BESSEY anti-slip system (
Technical specifications
- Product type
L clamp
- Span width (max.)
300 mm
- Nosing
140 mm
- Length
400 mm
- Weight
2.195 kg
- Content
1 pc(s)
- Width
205 mm
- Height
40 mm
- Clamping range
300 mm mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 646917 Bessey TG30 L clamp Span width (max.):300 mm Product size (length): 400 mm Nosing length:140 mm
Description
Features
- Ergonomically designed wooden handle
- Manually changeable pressure discs
- With protective caps on the clamping surfaces
- Sturdy hollow profile rails with fluting
- BESSEY anti-slip protection
Hints
This text is machine translated.
