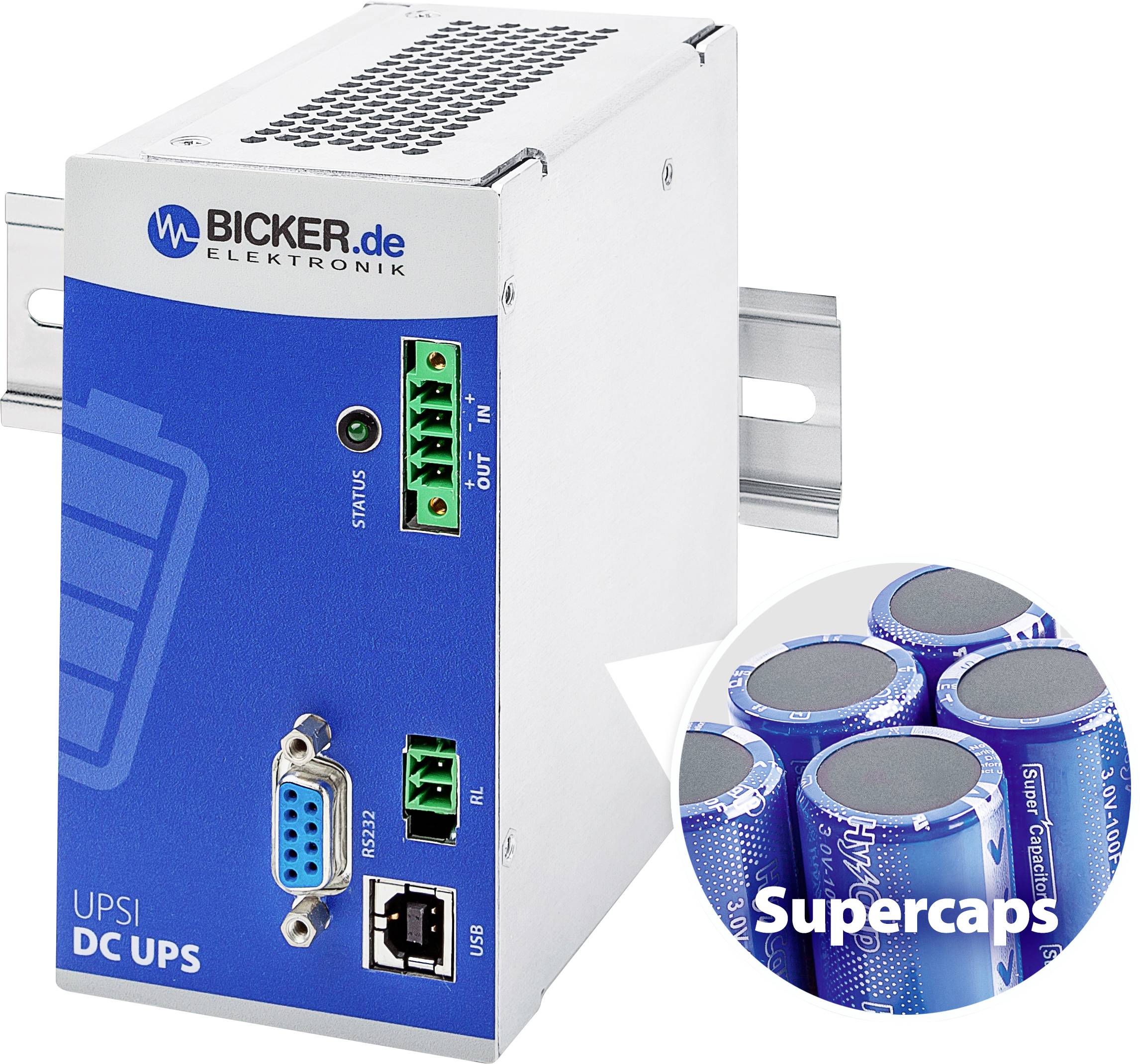

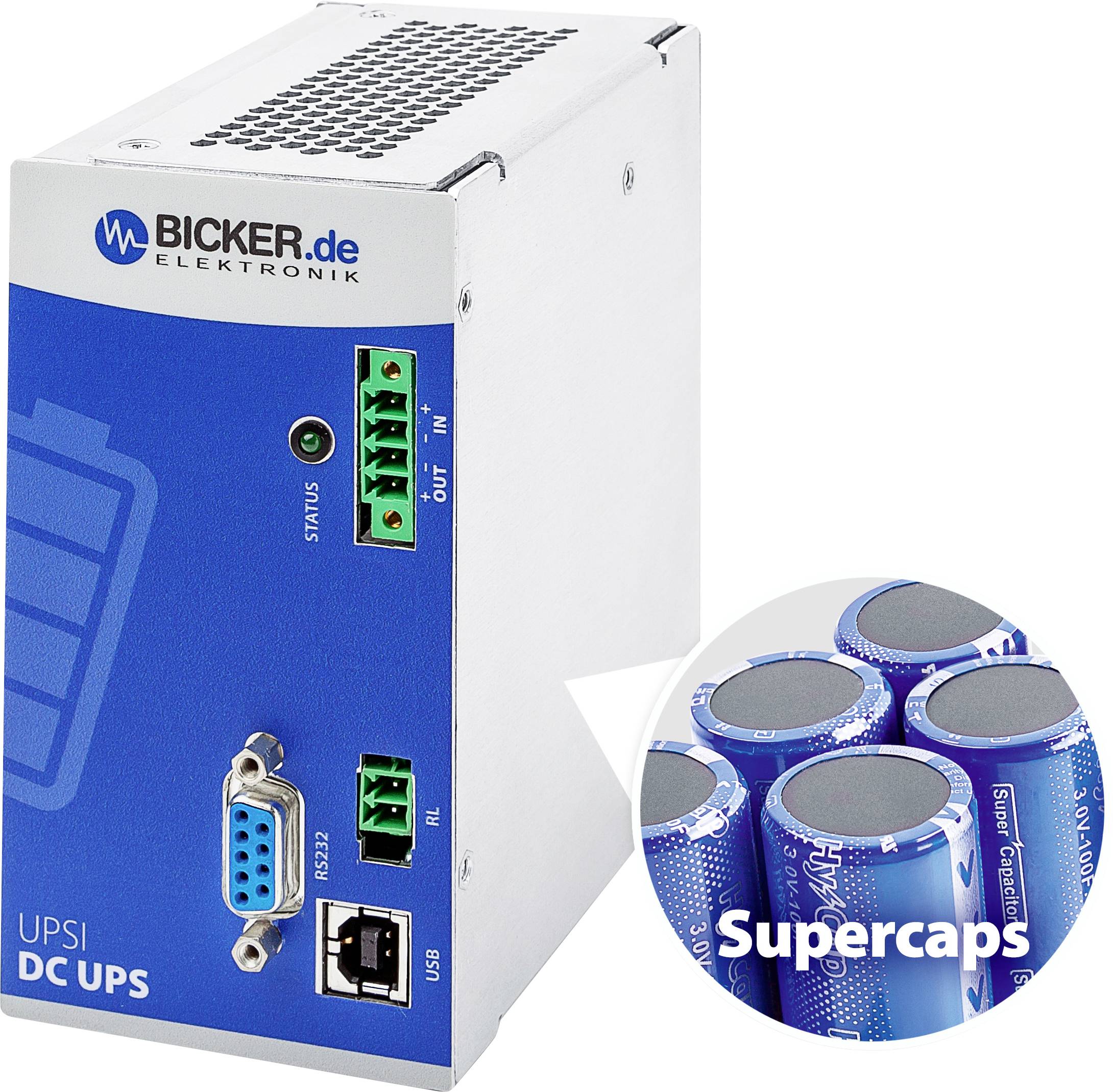

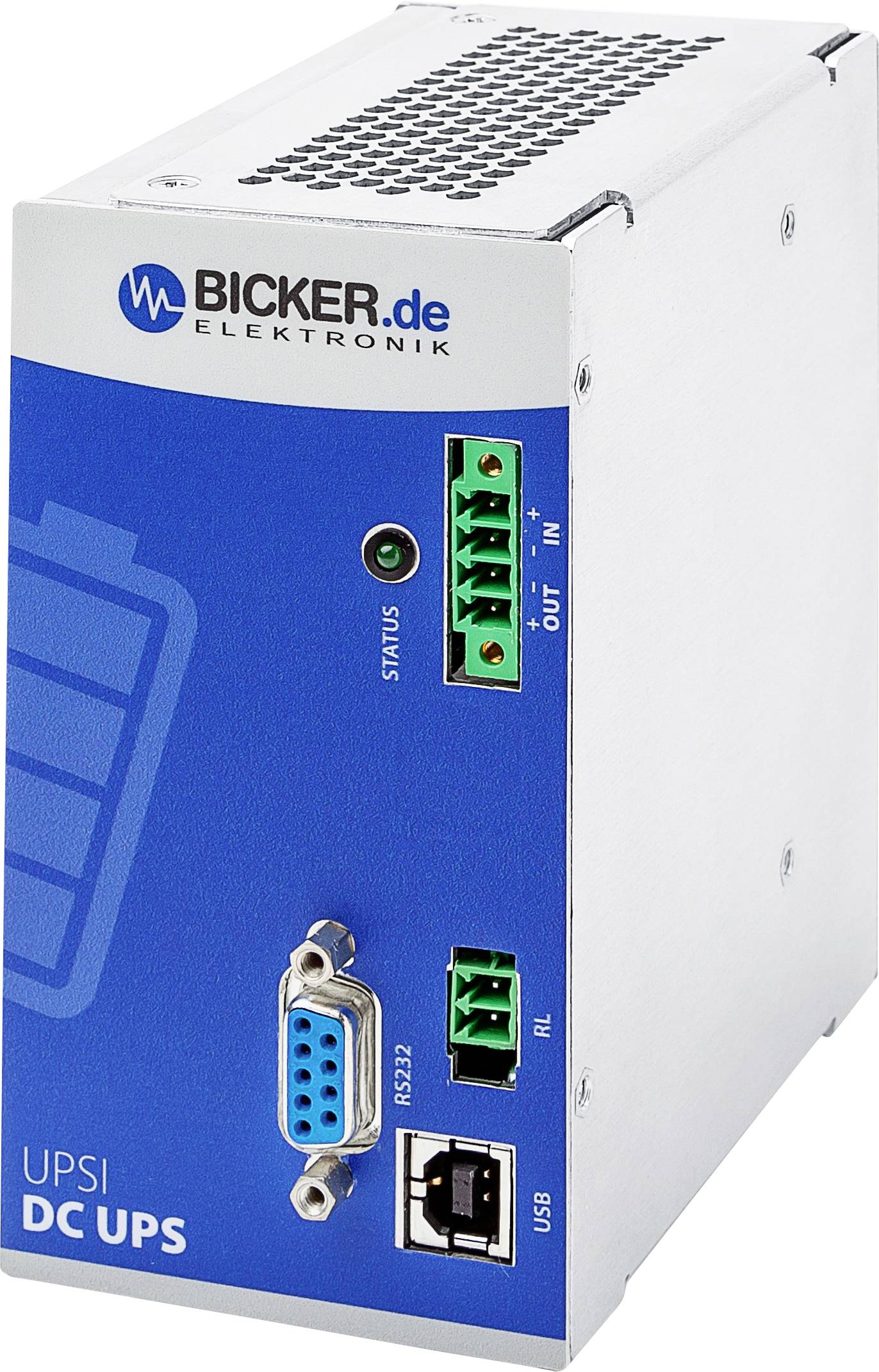

Bicker Elektronik UPSI-2406DP2 UPSI-2406DP2 Rail-mount UPS (DIN)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Rail-mount UPS (DIN)
- Nominal power
96 W
- No. of outputs
1 x
- Output
USB
- Input voltage (max.)
30 V DC
- Min. input voltage
22.50 V DC
- Output voltage (max.)
24 V DC
- Output voltage (min.)
-0.50 V
- Dim
(W x H x D) 63 x 120 x 100 mm
- Output current (details)
4.25 A
- Width
63 mm
- Height
120 mm
- Depth
100 mm
- Interfaces
USB 2.0
RS232
- Type
UPSI-2406DP2
- Features
Capacitive energy storage
- Bridging time, max load
30 s
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2348291 Bicker Elektronik UPSI-2406DP2 UPSI-2406DP2 Rail-mount UPS (DIN)
Description
Safe protection against power failure & faults!
Uninterruptible power supply with Supercap energy storage
Avoid costly plant downtimes and data loss! The new DC-UPS UPSI-2406DP2 with integrated Supercap energy storage reliably bridges power failures and faults, so that the uninterruptible 24VDC power supply is guaranteed at all times at the output. By optimizing the power electronics, DC loads of up to 100 watts can be safely bridged.
Power failures, voltage drops, fluctuations and flicker of the 24VDC supply network can quickly become a problem in production plants, safety systems and embedded industrial PCs, and can cause costly failures or even data loss. The intelligent emergency power supply UPSI-2406DP2 with integrated Li-Ion battery ensures the fail-safe supply of the connected DC load. Equipped with numerous additional functions, our DC-UPS solutions convince in the most varied applications worldwide!
The compact DC-UPS UPSI-2406DP2 in a robust DIN rail housing is ideal for long-term use in control cabinet applications and decentralized solutions for the protection of embedded IPCs, controllers, motor drives, sensors, measurement, control and safety technology, etc.
This text is machine translated.
Uninterruptible power supply with Supercap energy storage
Avoid costly plant downtimes and data loss! The new DC-UPS UPSI-2406DP2 with integrated Supercap energy storage reliably bridges power failures and faults, so that the uninterruptible 24VDC power supply is guaranteed at all times at the output. By optimizing the power electronics, DC loads of up to 100 watts can be safely bridged.
Power failures, voltage drops, fluctuations and flicker of the 24VDC supply network can quickly become a problem in production plants, safety systems and embedded industrial PCs, and can cause costly failures or even data loss. The intelligent emergency power supply UPSI-2406DP2 with integrated Li-Ion battery ensures the fail-safe supply of the connected DC load. Equipped with numerous additional functions, our DC-UPS solutions convince in the most varied applications worldwide!
The compact DC-UPS UPSI-2406DP2 in a robust DIN rail housing is ideal for long-term use in control cabinet applications and decentralized solutions for the protection of embedded IPCs, controllers, motor drives, sensors, measurement, control and safety technology, etc.
This text is machine translated.
Features
- Backup time for 96W load approx. 30 seconds
- Ambient temperature range -20...+65°C
- maintenance-free thanks to Supercaps
- Intelligent input current detection
- regulated output voltage in backup operation
- Minimum load detection
- Power-fail timer function
- Relay contact for Power-fail
- USB & RS232 interface
- HID control center
- Shutdown & Reboot function
- Charging status display
- tested according to IEC/EN/UL 61010-1 / -2-201
Scope of delivery
- incl. Software
