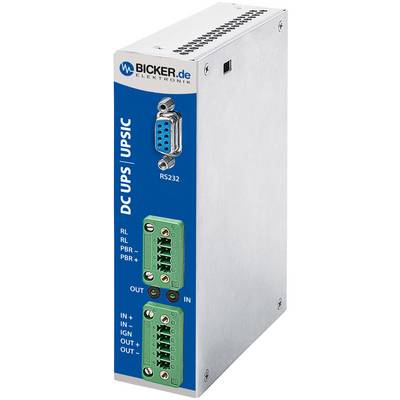

Silver DC UPS unit with RS232 port and green IN/OUT connection terminals, by Bicker Elektronik.

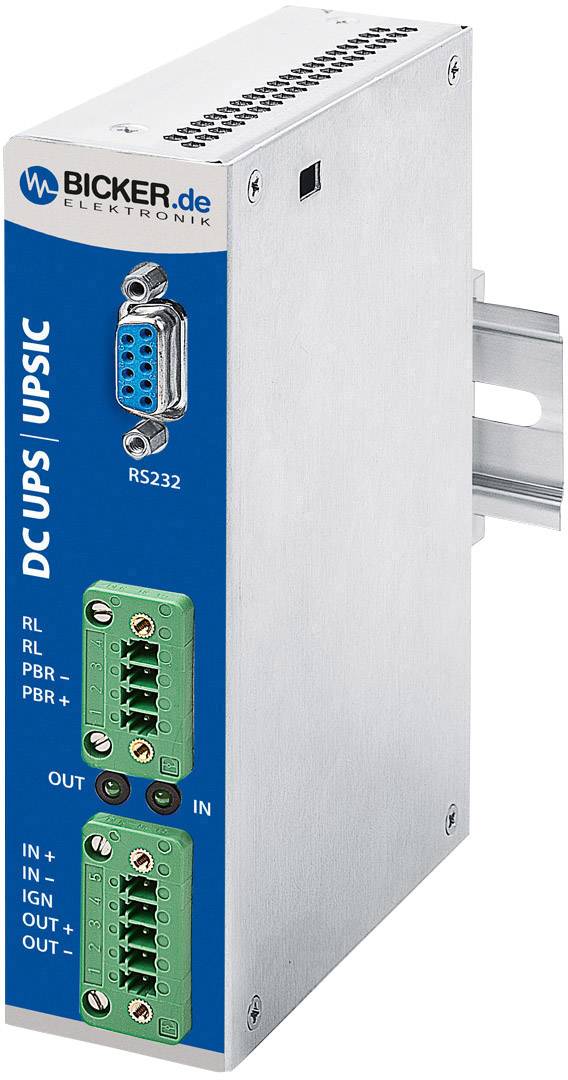

An industrial DC UPS module with a blue front panel and silver casing, equipped with an RS232 port and green terminal blocks.

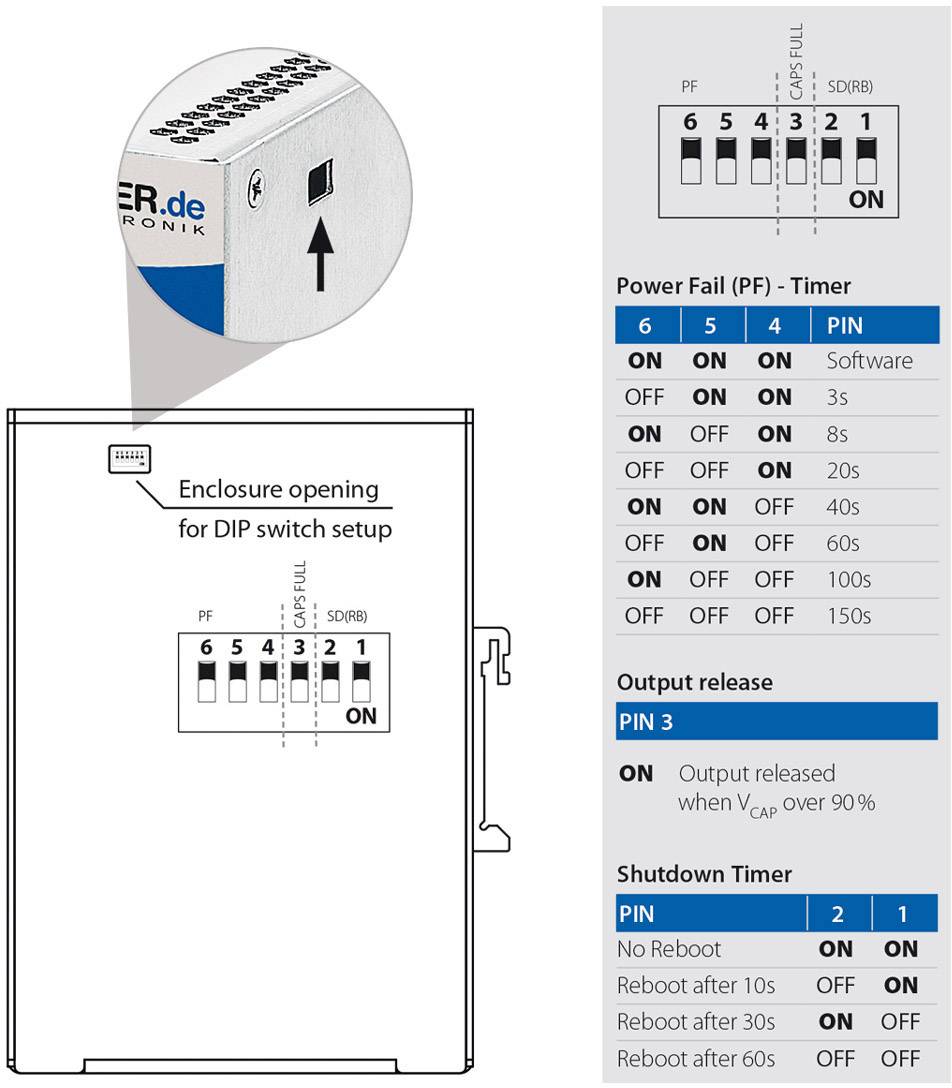

Figure of an electronic device with a detailed view of the DIP switches for configuration. Table shows settings for power fail, output release, and shutdown timer.

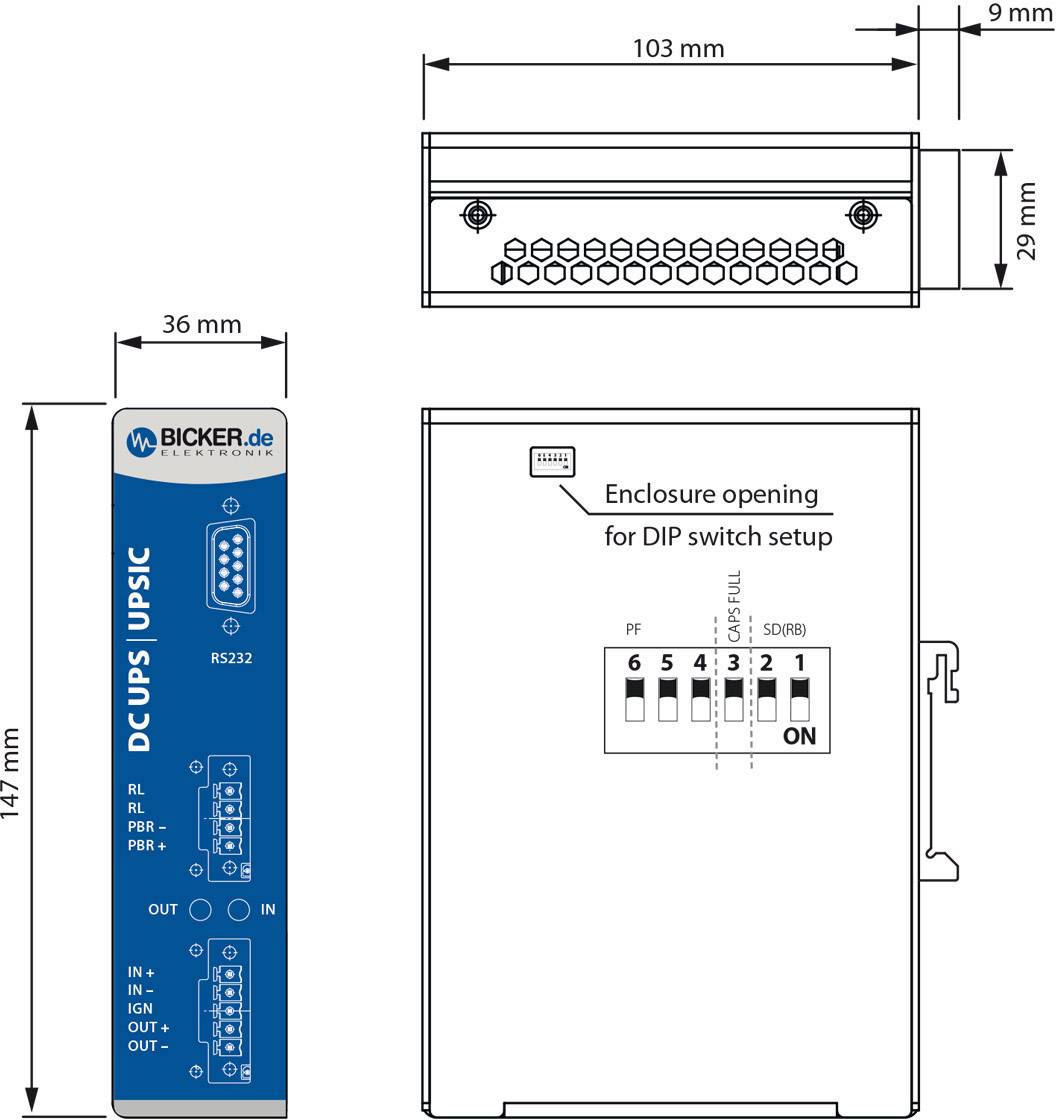

'Bicker.de DC UPS UPSIC' Device Drawing with Dimensions: Height 147 mm, Width 36 mm. Side View Shows Connection Layout and DIP Switches.

1/4

Datasheet (PDF)

1 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 264.71 / piece)

€ 344.54

-23 %

€

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

DC-UPS with maintenance-free SuperCaps (DIN-Rail)

Maintenance-free supercaps for energy storage
Intelligent load balancing
Operation of the UPS on the host is possible without software

Technical specifications

Output voltage Battery operated 24 VDC ±2 % controlled
Output voltage normal operation Vin-0.2 V at 100% load
Output ripple ≤40 mV
Efficiency 94% (VSupercap 9.5V, Iout 1.25 A)
Charging current up to 6.2 A CC (VSupercap) Depending on load
Charging method CC / CV
Bearing type Supercaps 4x 100 F.
Charging time 60 sec at maximum charging current @ 4x 100 F.
Protection over-current protection - Not LATCH
Active reverse polarity protection
Security / EMC CE
Operating temperature: -20...+70 °C / Storage: -20...+70 °C.
Operating humidity: 10...85 % RH, non-condensing / Storage: 10...90 % RH, non-condensing.

Product type: Rail-mount UPS (DIN)

Nominal power: 70 W

Input voltage (max.): 30

Min. input voltage: 22.5

Dim: (W x H x D) 36 x 147 x 103 mm

Output current (details): 3 A

Input current: 3.5 A

Width: 36 mm

Height: 147 mm

Depth: 103 mm

Type: UPSIC-2403D

Documents & Downloads

Datasheet

Datasheet 1986076 Bicker Elektronik UPSIC-2403D UPSIC-2403D Rail-mount UPS (DIN)

User & Safety Instructions

User & Safety Instructions 1986076 Bicker Elektronik UPSIC-2403D UPSIC-2403D Rail-mount UPS (DIN)

Description

The UPSIC-2403D in a compact DIN rail housing protects connected consumers against fluctuations and interruptions in the supply voltage. Maintenance-free supercaps provide for an extremely high cycle stability and short charging time. Intelligent power sharing does not require the source to be overdimensioned to load the supercaps. In addition, the UPSIC-2403D offers an active reverse polarity protection, a power fail signal via a relay contact and a free software with timer function. The built-in reboot function allows the system to restart if the input voltage returns during shutdown or at any other time. The BIOS can be used to enable the boot function when the input voltage is present. In addition, it can be set via a dip switch that the output of the UPS is only enabled when the capacitors have reached over 90% of their charge. Operation of the UPS on the host is also possible without software.

This text is machine translated.
