binder 08 3109 000 000 Bullet connector protective cap Plug, straight Series (round connectors): HEC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bullet connector protective cap
Connector type
Plug, straight
Content
1 pc(s)
Nominal current - rounded value
1 A
Nominal voltage
125 V
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
14-day return policy included

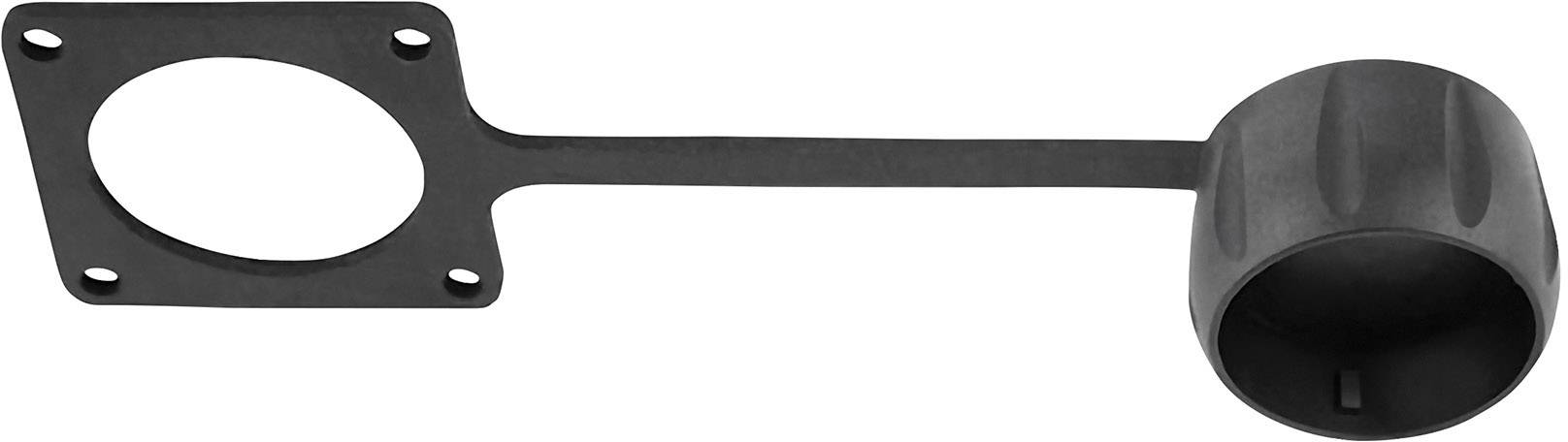

Protective cap for flange plug
Technical specifications
- Type
08 3109 000 000
- Product type
Bullet connector protective cap
- Connector type
Plug, straight
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+95 °C
- Nominal current
1 A
- Min. temperature
-40 °C
- Nominal current - rounded value
1 A
- Seal
Bayonet
- Nominal voltage
125 V
- Cable Ø (max.)
4 mm
- Cable Ø up to
3 mm
- Case material
PA (UL 94 V-0)
- Connection angle
180°
- Manufacturer part #
08 3109 000 000
- Cable Ø range
3 - 4 mm
- Length
100 mm
- max. cross section
0.14 mm²
- Cross-section range
0.14 mm² (max)
IP68
IP69K
- Series
HEC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1272871 binder 08 3109 000 000 Bullet connector protective cap Plug, straight Series (round connectors): HEC 1 pc(s)
Information
Information 1272871 binder 08 3109 000 000 Bullet connector protective cap Plug, straight Series (round connectors): HEC 1 pc(s)
Description
HEC stands for Harsh Environment Connector and means connectors for harsh environmental conditions. These are primarily applications in the agricultural technology, such as tractors, sowing and harvesting machines. Another essential outdoor area is the environmental and process engineering - representative clear and recycling systems. Equipment as well as traffic and signal systems are also typical fields of application for the HEC-plug.
