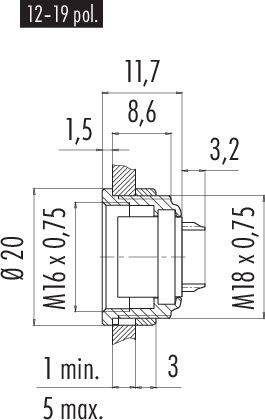

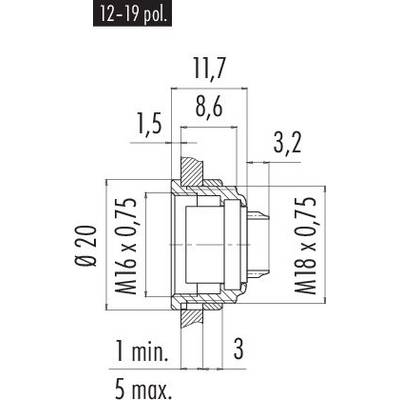

binder 09 0054 00 14-20 Flange box Socket, straight Total number of pins: 14 Series (round connectors): 680 1 pc(s)
EAN:
Part number:
Item no:
Product type
Flange box
Connector type
Socket, straight
Total no. of pins
14
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
09 0054 00 14 Series 680
- M16 IP40 flange socket
- Number of pins: 14
- unshielded
- Soldering
- IP40
Our service for you
Technical specifications
- EMC-suitability: Unshielded
- Insulation resistance: ≥ 10¹⁰ Ω
- Constant resistance: 3 mΩ
- Insulation class III
- Overvoltage category I
- Pollution level 1
- Material contact body PBT (UL94 V-0)
- Mounting type: Housing assembly
- Type
09 0054 00 14
- Product type
Flange box
- Connector type
Socket, straight
- Total no. of pins
14
- Connection
Soldering
- Content
1 pc(s)
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Seal
screws
- Nominal voltage
60 V
- Contact material
CuSn
- Case material
Diecast zinc (Ni-plated)
AWG 24
- Manufacturer part #
09 0054 00 14-20
- Number of pins
14
- max. cross section
0.25 mm²
- Cross-section range
0.25 mm² (max)
- RoHS-compliant
Yes
IP40
- Series
680
Documents & Downloads
Datasheet
Datasheet 3214464 binder 09 0054 00 14-20 Flange box Socket, straight Total number of pins: 14 Series (round connectors): 680 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3214464 binder 09 0054 00 14-20 Flange box Socket, straight Total number of pins: 14 Series (round connectors): 680 1 pc(s)
Description
These seven series miniature circular connectors are suitable for a wide range of applications, thanks to a wide range of locking systems, contact layouts, IP protection types and connectors. Customers can choose between push-pull, snap-in, bayonet and M16 locking. Depending on the series, connectors with 2 to 24 contacts are available in cable or flange versions. Connection types are crimp, dip solder, screw terminal and solder connections, stranded wire and molded cable. Like all Binder products, these miniature connectors are made of high quality materials for a long and reliable service life. Many are UL and VDE approved, some ASIG compliant.
Properties:
• Protection class IP40, IP67, IP67 shielded or IP68
• 2 to 24 pole
• Straight and angled cable versions
• Flange versions
• Gold-plated or silver-plated brass and bronze contacts
• 1000 mating cycles and more
• Several locking systems, including bayonet, snap-in and M16
