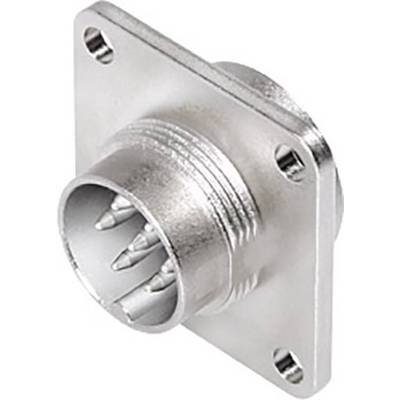

binder 09 0127 370 07 Mini DIN connector Sleeve plug Total number of pins: 7 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mini DIN connector
Connector type
Sleeve plug
Total no. of pins
7
Content
1 pc(s)
Nominal current - rounded value
5 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€ 10.08
-17 %
€ 8.39
plus VAT.
Technical specifications
- Type
09 0127 370 07
- Product type
Mini DIN connector
- Connector type
Sleeve plug
- Total no. of pins
7
- Content
1 pc(s)
- Max. temperature
+100 °C
- Nominal current
5 A
- Min. temperature
-40 °C
- Nominal current - rounded value
5 A
- Seal
Screws
- Leading contact (PE)
No
- Nominal voltage
60 V
- Case material
PBT, UL94V-0
- Connection angle
180°
- Manufacturer part #
09 0127 370 07
- Number of pins
7
IP67
Documents & Downloads
Datasheet
Datasheet 1663607 binder 09 0127 370 07 Mini DIN connector Sleeve plug Total number of pins: 7 1 pc(s)
Description
Hints
Crimp contacts must be ordered separately.
