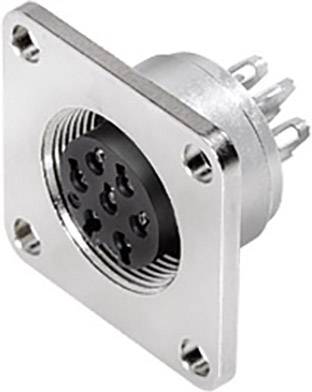

binder 09 0174 300 08 Mini DIN connector Sleeve socket Total number of pins: 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mini DIN connector
Connector type
Sleeve socket
Total no. of pins
8
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
5% = € 0.83
€ 15.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Type
09 0174 300 08
- Product type
Mini DIN connector
- Connector type
Sleeve socket
- Total no. of pins
8
- Connection
Soldering
- Content
1 pc(s)
- Max. temperature
+95 °C
- Nominal current
5 A
- Min. temperature
-40 °C
- Nominal current - rounded value
5 A
- Seal
Screws
- Leading contact (PE)
No
- Nominal voltage
60 V
- Contact material
CuSn
- Case material
PBT, UL94V-0
20
- Connection angle
180°
- Manufacturer part #
09 0174 300 08
- Number of pins
8
- max. cross section
0.75 mm²
- Cross-section range
0.75 mm² (max)
IP67
Documents & Downloads
Datasheet
Datasheet 1663636 binder 09 0174 300 08 Mini DIN connector Sleeve socket Total number of pins: 8 1 pc(s)
