binder 09 6504 000 08 Bullet connector Connector, straight Total number of pins: 8 Series (round connectors): HEC 1 pc(s
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Connector, straight
Total no. of pins
8
Connection
Crimp
Content
1 pc(s)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.

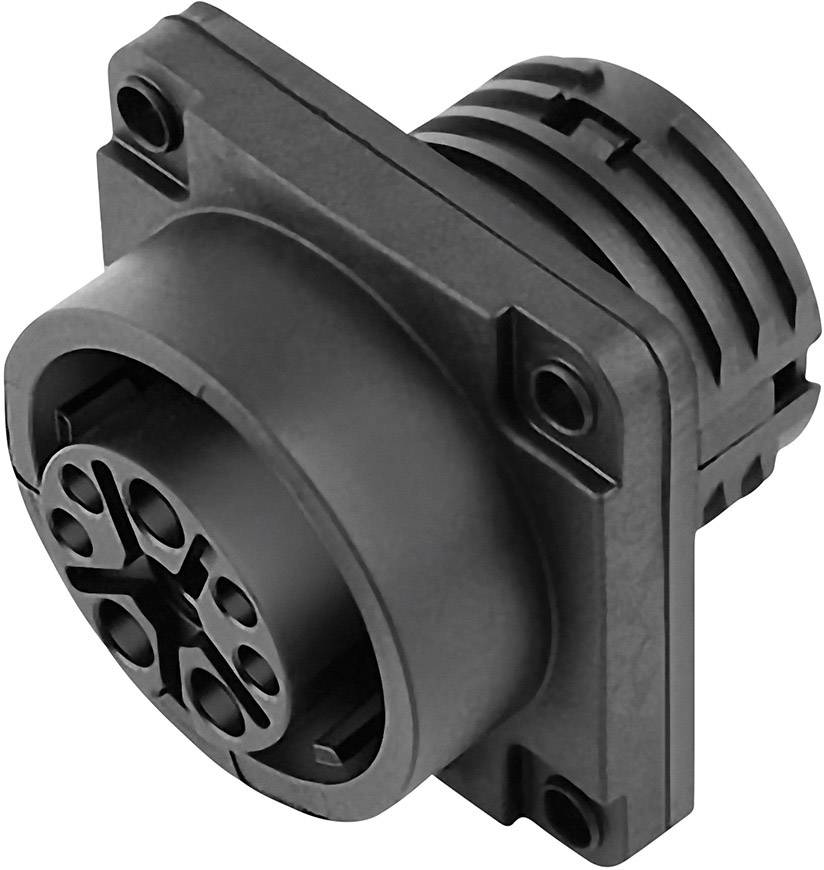

Flange socket with bayonet lock
Technical specifications
- Type
09 6504 000 08
- Product type
Bullet connector
- Connector type
Connector, straight
- Total no. of pins
8
- Connection
Crimp
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+95 °C
- Nominal current
4 A
- Min. temperature
-40 °C
- Nominal current - rounded value
4 A
- Seal
Bayonet
- Nominal voltage
125 V
- Cable Ø (max.)
4 mm
- Cable Ø up to
3 mm
- Case material
PA (UL 94 V-0)
- Connection angle
180°
- Manufacturer part #
09 6504 000 08
- Cable Ø range
3 - 4 mm
- Number of pins
8
- Length
38.5 mm
- max. cross section
0.25 mm²
- Cross-section range
0.25 mm² (max)
IP68
IP69K
- Series
HEC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1272869 binder 09 6504 000 08 Bullet connector Connector, straight Total number of pins: 8 Series (round connectors): HEC 1 pc(s
Information
Information 1272869 binder 09 6504 000 08 Bullet connector Connector, straight Total number of pins: 8 Series (round connectors): HEC 1 pc(s
Description
HEC stands for Harsh Environment Connector and means connectors for harsh environmental conditions. These are primarily applications in the agricultural technology, such as tractors, sowing and harvesting machines. Another essential outdoor area is the environmental and process engineering - representative clear and recycling systems. Equipment as well as traffic and signal systems are also typical fields of application for the HEC-plug.
