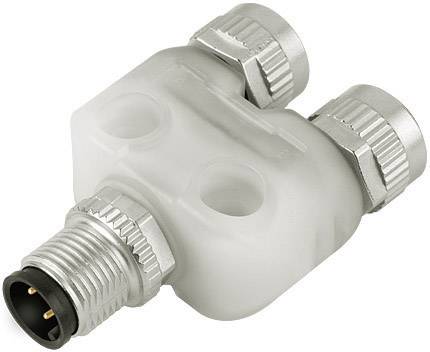

binder 79-5236-00-04
EAN:
Part number:
Item no:
Product type
Sensor/actuator splitter/adapter
Connector type
Adapter, Y-shaped
Connector standard
Sensor connector
Connection side A
M12 socket, straight
M12 socket, straight
Connection side B
M12 socket, straight
M12 socket, straight
Datasheet (PDF)
Number
Total (€ 32.76 / piece)
€ 32.76
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Type
79-5236-00-04
- Product type
Sensor/actuator splitter/adapter
- Connector type
Adapter, Y-shaped
- Connector standard
Sensor connector
- Connection side A
M12 socket, straight
M12 socket, straight
- Connection side B
M12 socket, straight
M12 socket, straight
- No. of pins
4
- Nominal voltage
30 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
Screw terminal
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Contact material
Au
IP68
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Manufacturer part #
79-5236-00-04
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 736778 binder 79-5236-00-04
User & Safety Instructions
User & Safety Instructions 736778 binder 79-5236-00-04
Information
Information 736778 binder 79-5236-00-04
Description
The two-way splitter are for the distribution of signals in confined spaces is ideally suitable. Mounting holes enable the fixation on site. Depending on the design of the internal wiring, two sensors/actuators can be queried or the two-way splitter allows the connection of active participants in the bus cable, for example, CAN or Device Net.
