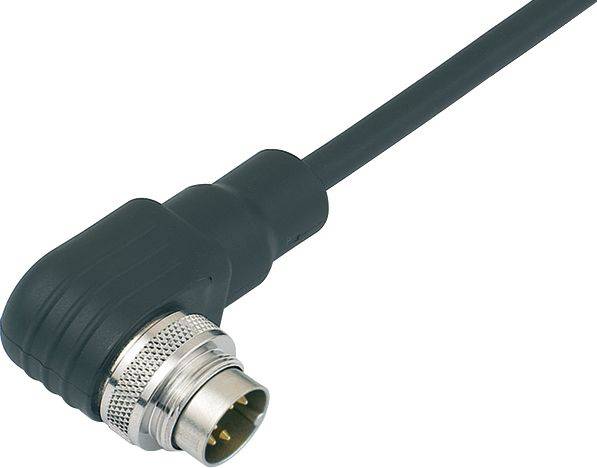

binder 79 6251 200 14-20 Bullet connector (pre-fab) Plug, right angle Total number of pins: 14 Series (round connectors)
EAN:
Part number:
Item no:
Product type
Bullet connector (pre-fab)
Connector type
Plug, right angle
Total no. of pins
14
Connection
Cable + connector
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
79 6251 200 14 Series 425

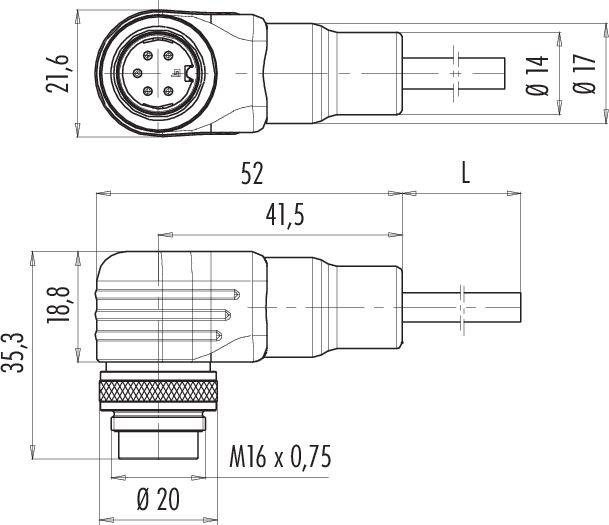

- M16 IP67 right-angle plug
- Number of pins: 14
- unshielded
- Moulded on the cable
- IP67
- PUR black

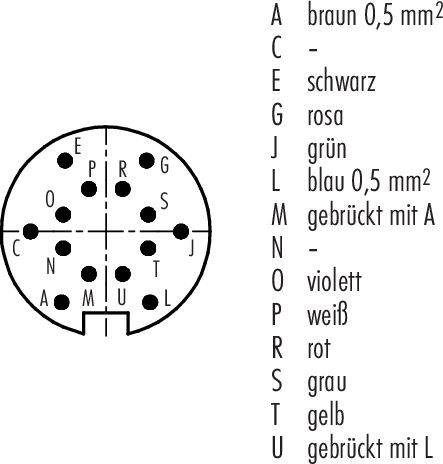

- 8 x 0.25 mm² / 2 x 0.50 mm²
Technical specifications
- EMC-suitability: Unshielded
- Insulation resistance: ≥ 10¹⁰ Ω
- Constant resistance: 3 mΩ
- Insulation class III
- Overvoltage category I
- Pollution level 1
- Material contact body PBT (UL94 V-0)
- Insulation PVC
- Cable cross-section: 8 x 0.25 mm² / 2 x 0.50 mm²
- Bending radius for cable moving: ≥ 15 x Ø
- Halogen-free: No.
- Mounting type: Cable mounting
- Type
79 6251 200 14
- Product type
Bullet connector (pre-fab)
- Connector type
Plug, right angle
- Total no. of pins
14
- Connection
Cable + connector
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
70 °C
- Nominal current
3 A
- Min. temperature
-30 °C
- Nominal current - rounded value
3 A
- Seal
screws
- Nominal voltage
60 V
- Contact material
CuZn
- Case material
PUR
8x AWG 24 / 2x AWG 20
- Manufacturer part #
79 6251 200 14-20
- Number of pins
14
- max. cross section
0.50 mm²
- Cross-section range
0.50 mm² (max)
- RoHS-compliant
Yes
IP67
- Series
425
Documents & Downloads
Datasheet
Datasheet 3215505 binder 79 6251 200 14-20 Bullet connector (pre-fab) Plug, right angle Total number of pins: 14 Series (round connectors)
User & Safety Instructions
User & Safety Instructions 3215505 binder 79 6251 200 14-20 Bullet connector (pre-fab) Plug, right angle Total number of pins: 14 Series (round connectors)
Description
These seven series miniature circular connectors are suitable for a wide range of applications, thanks to a wide range of locking systems, contact layouts, IP protection types and connectors. Customers can choose between push-pull, snap-in, bayonet and M16 locking. Depending on the series, connectors with 2 to 24 contacts are available in cable or flange versions. Connection types are crimp, dip solder, screw terminal and solder connections, stranded wire and molded cable. Like all Binder products, these miniature connectors are made of high quality materials for a long and reliable service life. Many are UL and VDE approved, some ASIG compliant.
Properties:
• Protection class IP40, IP67, IP67 shielded or IP68
• 2 to 24 pole
• Straight and angled cable versions
• Flange versions
• Gold-plated or silver-plated brass and bronze contacts
• 1000 mating cycles and more
• Several locking systems, including bayonet, snap-in and M16
This text is machine translated.
Properties:
• Protection class IP40, IP67, IP67 shielded or IP68
• 2 to 24 pole
• Straight and angled cable versions
• Flange versions
• Gold-plated or silver-plated brass and bronze contacts
• 1000 mating cycles and more
• Several locking systems, including bayonet, snap-in and M16
