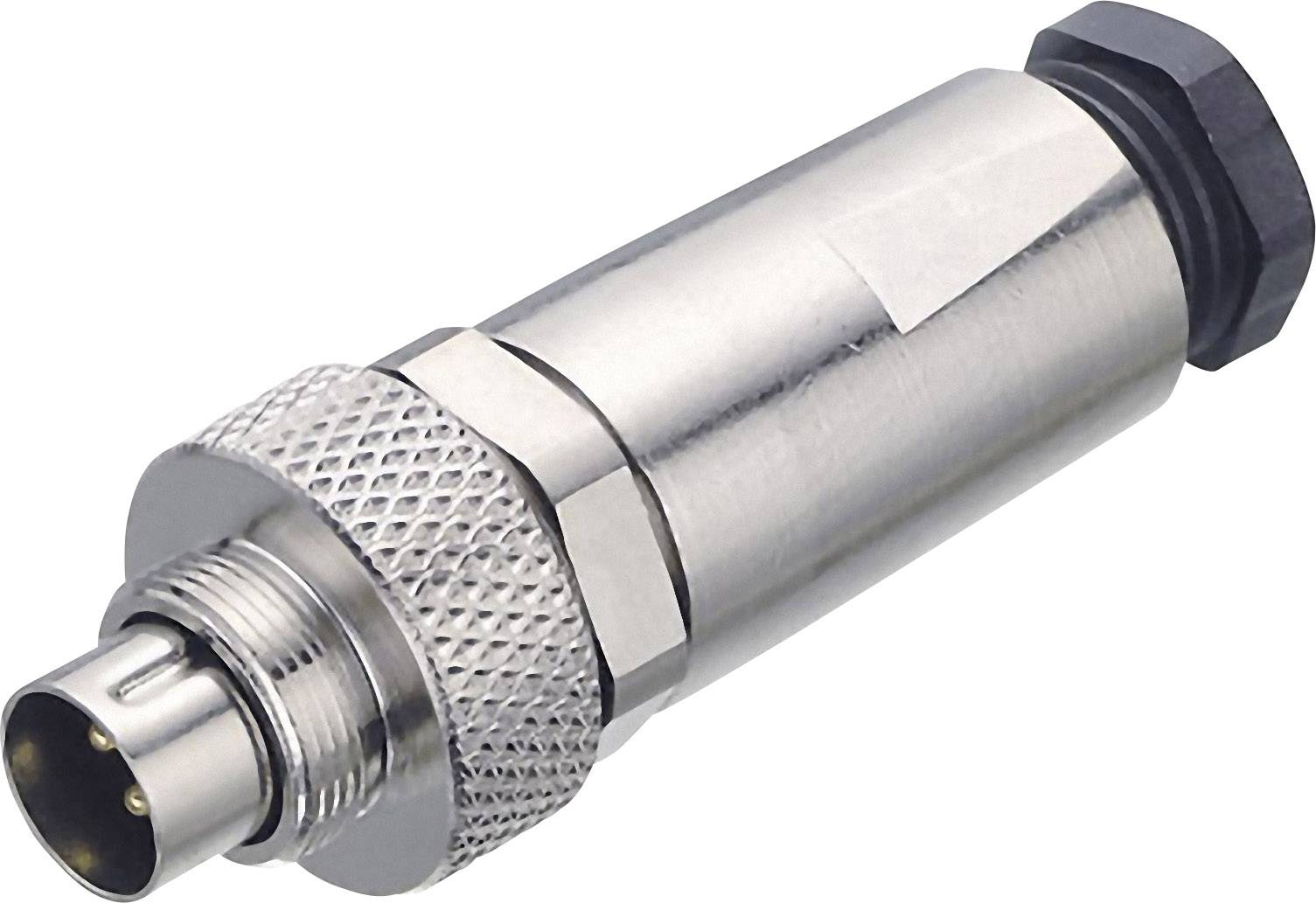

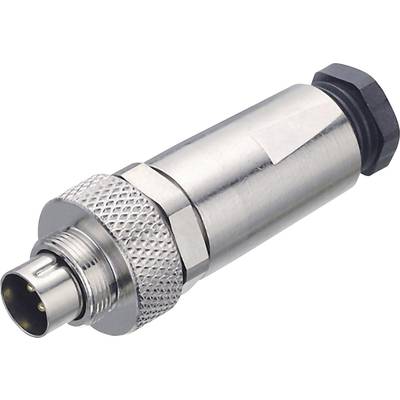

binder 99-0413-10-05 Bullet connector Plug, straight Total number of pins: 5 Series (round connectors): 712 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
51 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€
Technical specifications
- Connector type
Plug, straight
- Total no. of pins
5
- Connection
Soldering
- Factory colour
Silver
- Content
1 pc(s)
- Max. temperature
+105 °C
- Nominal current
3 A
- Min. temperature
-40 °C
- Nominal current - rounded value
3 A
- Seal
Screw
- Nominal voltage
175 V
- Contact material
Brass
- Cable Ø (max.)
5 mm
- Cable Ø up to
3.5 mm
- Case material
CuZn
- Cable Ø range
3.5 - 5 mm
- Cross-section range
0.14 mm² (max)
IP67
- Series
712
- Manufacturer part #
99-0413-10-05
- Type
99-0413-10-05
- max. cross section
0.14 mm²
- Number of pins
5
- Connection angle
180°
- Product type
Bullet connector
