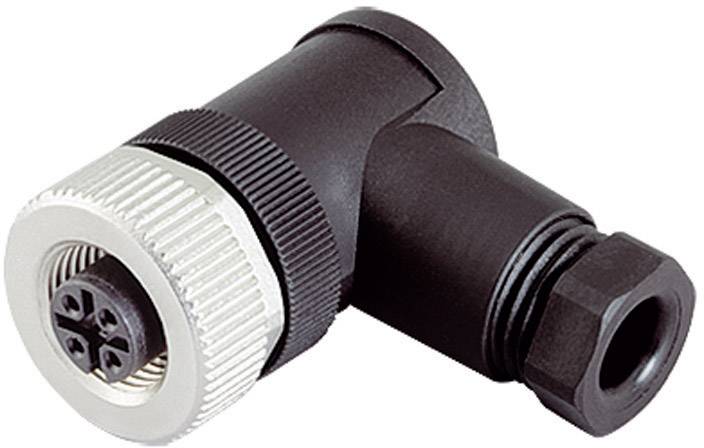

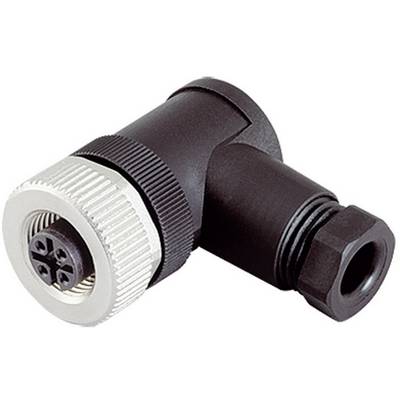

binder 99-0430-24-04 Sensor/actuator connector M12 Socket, right angle No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€
Technical specifications
- Connector type
Socket, right angle
- Connector standard
Sensor connector
- Connection side A
M12 socket, right angle
- Connection side B
Customisable
- No. of pins
4
- Nominal voltage
250 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.75 mm²
- Connection
Spring-loaded
- Thread type connection side
M12
- Contact material
CuZn
- Contact surface
Gold plated
IP67
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Content
1 pc(s)
- Cable Ø range
- Manufacturer part #
99-0430-24-04
- Type
99-0430-24-04
- Type
Angled socket M12 x 1, metal lock
- Nominal voltage (details)
250 V
- Nominal current (details)
4 A
- Thread type
M12
- Contamination level
3
- Connector cross section
0.75 mm²
- Pins
4
- Connection
Screw
- Cable diameter (details)
4 mm
- Temperature range
-25 - +85 °C
- RoHS-compliant
- Product type
Sensor/actuator connector
Documents & Downloads
Datasheet
Datasheet 734370 binder 99-0430-24-04 Sensor/actuator connector M12 Socket, right angle No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 734370 binder 99-0430-24-04 Sensor/actuator connector M12 Socket, right angle No. of pins (RJ): 4 1 pc(s)
Description
Largely insensitive to vibration thanks to the constant spring clamping. Advantages of this connector include the short assembly time and uniform pressure of the lead on the contact. Durable quality from Binder®.
