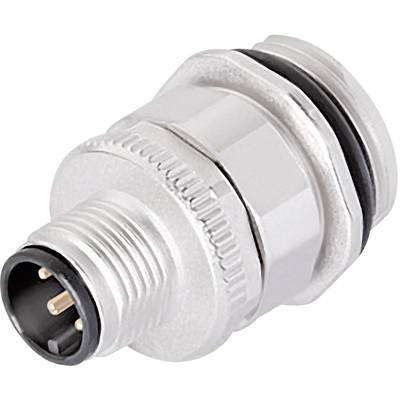

binder 99-0431-500-04 Bullet connector Plug, mount Total number of pins: 4 Series (round connectors): 713 20 pc(s)

In different applications, the mounting of the connection connector only after the electrical wiring. This means that the cable or the wires are in the device already wired and protrude through the front panel. The connector adapter is connected with nut on the customer housing or in the M20 x 1.5 thread screwed. Then, the braids in the screw clamp contacts of the connector clamped and the plug insert with the adapter screwed. The 4- and 5-pin connector head can be positioned in 4 x 90° can be installed. Thus, it is possible to wire the cable outlet direction of a wink leagues. But even when connecting different cables or wires allow the screw clamp contacts a simple assembly in the field. Due to the big possible cross-section of 1.5 mm² can 4- and 5-pole version currents up to 8 A can be transferred. Thus, these flange connector can be used also for the A-coded power versions.

This text is machine translated.
