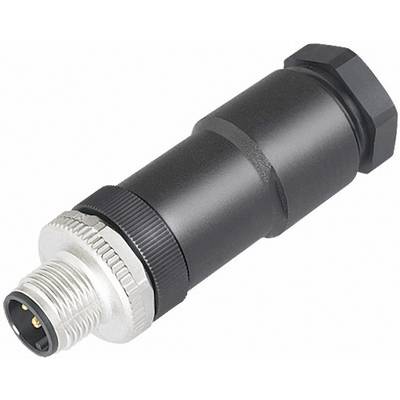

binder 99-0437-19-05
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Plug, straight
Total no. of pins
5
Connection
Screw terminal
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
14-day return policy included
Technical specifications
- Type
99-0437-19-05
- Product type
Bullet connector
- Connector type
Plug, straight
- Total no. of pins
5
- Connection
Screw terminal
- Content
1 pc(s)
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Nominal voltage
250 V
- Contact material
Au
- Cable Ø (max.)
10 mm
- Cable Ø up to
8 mm
18
- Connection angle
180°
- Manufacturer part #
99-0437-19-05
- Cable Ø range
8 - 10 mm
- Number of pins
5
- max. cross section
1.5 mm²
- Cross-section range
1.5 mm² (max)
IP67
- Series
763
Documents & Downloads
Datasheet
Datasheet 567779 binder 99-0437-19-05
User & Safety Instructions
User & Safety Instructions 567779 binder 99-0437-19-05
Description
Until now, it was not possible to connect power cable to assemble process M12 connector, because the terminals only up to 0.75 mm² were designed for and the cable outlet at 8 mm ended. The new versions, with wire-end sleeves to 1.5 mm² clamped and the cable diameter up to 10 mm sealed. Thus it is possible at 40°C ambient temperature 8 A per contact. To reduce the contact resistance and the loss of heat are the contacts with Au-Oberflache. The connectors are compatible with all 4- and 5-pin versions in a coding according to DIN EN 61076 - 2-101.
