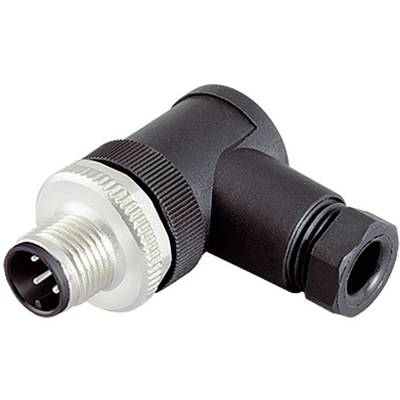

Black plastic and metal right-angle connector with threading, suitable for industrial electrical connections.

Image similar

Product type

Sensor/actuator connector

Connector type

Plug, right angle

Connector standard

Sensor connector

Connection side A

M12 plug, right angle

Connection side B

Customisable

Datasheet (PDF)

Dispatches on Mon, 20 Jul

33 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 20.16 / piece)

€ 20.16

plus VAT.

Report legal concerns

Technical specifications

Type: 99-0437-24-05

Product type: Sensor/actuator connector

Connector type: Plug, right angle

Connector standard: Sensor connector

Connection side A: M12 plug, right angle

Connection side B: Customisable

No. of pins: 5

Nominal voltage: 60 V

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.75 mm²

Connection: Spring-loaded

Thread type connection side: M12

Contact material: CuSn6

Contact surface: Gold plated

: IP67

Min. temperature: -25 °C

Max. temperature: +85 °C

Seal type: Screw-on

Manufacturer part #: 99-0437-24-05

Content: 1 pc(s)

Type: Angle plug M12 x 1, metal lock

Nominal voltage (details): 125 V

Nominal current (details): 4 A

Thread type: M12

Contamination level: 3

Connector cross section: 0.75 mm²

Pins: 5

Connection: Screw

Cable diameter (details): 4 mm

Temperature range: -25 - +85 °C

Variants(All information is without VAT, plus shipping costs)

Type

Nominal current - rounded value

Connection side A

Connector type

No. of pins

Nominal voltage

binder 09-3431-77-04 Sensor/actuator built-in connector M12 Plug, straight No. of pins (RJ): 4 20 pc(s)

Item no:1657018

09-3431-77-04

4 A

M12 plug, straight

Plug, straight

250 V

binder 09-0431-81-04 Sensor/actuator built-in connector M12 Plug, straight No. of pins (RJ): 4 20 pc(s)

Item no:1657114

09-0431-81-04

4 A

M12 plug, straight

Plug, straight

250 V

binder 09-0433-81-05 Sensor/actuator built-in connector M12 Plug, straight No. of pins (RJ): 5 20 pc(s)

Item no:1657115

09-0433-81-05

4 A

M12 plug, straight

Plug, straight

60 V

binder 09-0431-87-04 Sensor/actuator built-in connector M12 Plug, straight No. of pins (RJ): 3 20 pc(s)

Item no:1657116

09-0431-87-04

4 A

M12 plug, straight

Plug, straight

250 V

binder 09-0431-387-04 Sensor/actuator built-in connector M12 Plug, straight No. of pins (RJ): 4 20 pc(s)

Item no:1657119

09-0431-387-04

4 A

M12 plug, straight

Plug, straight

250 V

binder 09-0433-387-05 Sensor/actuator built-in connector M12 Plug, straight No. of pins (RJ): 5 20 pc(s)

Item no:1657121

09-0433-387-05

4 A

M12 plug, straight

Plug, straight

125 V

binder 09-0431-16-04-20 Sensor/actuator built-in connector M12 Plug, straight No. of pins (RJ): 4 1 pc(s)

Item no:3216565

09-0431-16-04-20

4 A

M12 plug, straight

Plug, straight

250 V

binder 09-0433-16-05-20 Sensor/actuator built-in connector M12 Plug, straight No. of pins (RJ): 5 1 pc(s)

Item no:3216568

09-0433-16-05-20

4 A

M12 plug, straight

Plug, straight

60 V

binder 09-0433-87-05-20 Sensor/actuator built-in connector M12 Plug, straight No. of pins (RJ): 5 1 pc(s)

Item no:3216572

09-0433-87-05-20

4 A

M12 plug, straight

Plug, straight

125 V

binder 09-3431-578-04-20 Sensor/actuator built-in connector M12 Plug, straight No. of pins (RJ): 4 1 pc(s)

Item no:3216578

09-3431-578-04-20

4 A

M12 plug, straight

Plug, straight

250 V

Documents & Downloads

Datasheet

Datasheet 734154 binder 99-0437-24-05 Series 713, M12 Sensor / Actuator Connector, Screw Cap, Angled

User & Safety Instructions

User & Safety Instructions 734154 binder 99-0437-24-05 Series 713, M12 Sensor / Actuator Connector, Screw Cap, Angled

Description

Largely insensitive to vibration thanks to the constant spring clamping. Advantages of this connector include the short assembly time and uniform pressure of the lead on the contact. Durable quality from Binder®.
