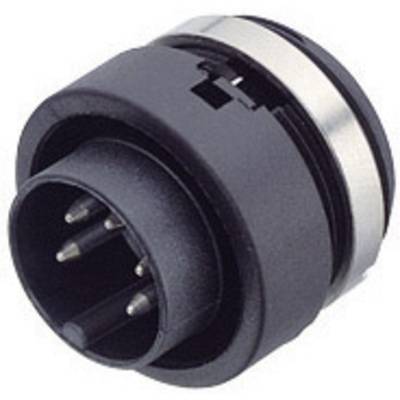

binder 99-0623-00-07 Series 678 Miniature Circular Connector Nominal current (details): 5 A
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Sleeve plug
Total no. of pins
7
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
5
6% = € 0.38
€ 5.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.29 / piece)
€ 9.24
-32 %
€ 6.29
plus VAT.
Only 9 Piece(s) available
Highlights & Details
binder 99-0623-00-07 Series 678 Miniature Circular Connector Nominal current (details): 5 A
- IP40
Technical specifications
- Type
99-0623-00-07
- Product type
Bullet connector
- Connector type
Sleeve plug
- Total no. of pins
7
- Connection
Soldering
- Content
1 pc(s)
- Max. temperature
+55 °C
- Nominal current
5 A
- Min. temperature
-20 °C
- Nominal current - rounded value
5 A
- Seal
bayonet
- Nominal voltage
125 V
- Contact material
Ag (Silver)
20
- Connection angle
180°
- Mounting hole diameter
M18 x 0.75
- Manufacturer part #
99-0623-00-07
- Number of pins
7
- max. cross section
0.75 mm²
- Cross-section range
0.75 mm² (max)
IP40
- Series
678
- Type
Flange socket
- Nominal voltage (details)
125 V
- Nominal current (details)
5 A
- Contamination level
1
- Cross section
0.75 mm²
- Connection
Soldering
- Temperature range
-40 - +85 °C
Documents & Downloads
Datasheet
Datasheet 738717 binder 99-0623-00-07 Series 678 Miniature Circular Connector Nominal current (details): 5 A
User & Safety Instructions
User & Safety Instructions 738717 binder 99-0623-00-07 Series 678 Miniature Circular Connector Nominal current (details): 5 A
Information
Information 738717 binder 99-0623-00-07 Series 678 Miniature Circular Connector Nominal current (details): 5 A
Description
· Connector is inserted into the panel cutout from the front and screwed from behind.
