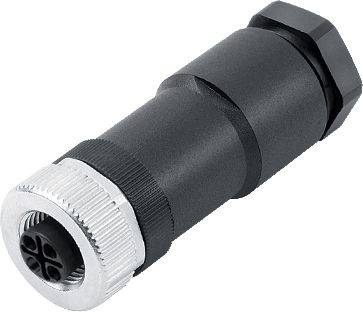

binder 99 0690 19 04-20 DIN connector Socket, straight Total number of pins: 4 + PE Series (round connectors): 814 1 pc(
EAN:
Part number:
Item no:
Product type
DIN connector
Connector type
Socket, straight
Total no. of pins
4 + PE
Connection
Screw terminal
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details

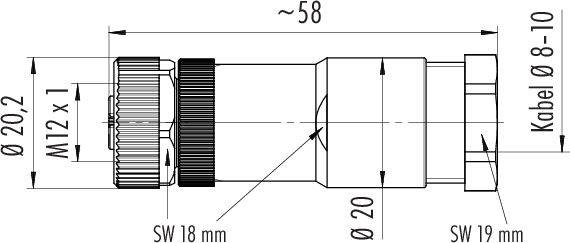

99 0690 19 04 Series 814
- M12-S cable socket
- Number of pins 3+PE
- 8.0 - 10.0 mm
- unshielded
- screw terminal
- IP67
- UL
- VDE
Technical specifications
- EMC-suitability: Unshielded
- Continuous resistance ≤ 5 mΩ
- Insulation class III
- Over voltage category III
- Pollution level 3
- Material of contact body: PA
- Cable diameter 8.0 - 10.0 mm
- Mounting type: Cable mounting
- Type
99 0690 19 04
- Product type
DIN connector
- Connector type
Socket, straight
- Total no. of pins
4 + PE
- Connection
Screw terminal
- Content
1 pc(s)
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Seal
screws
- Leading contact (PE)
Yes
- Nominal voltage
630 V
- Contact material
CuZn
- Case material
PA
AWG 16 / AWG 14
- Manufacturer part #
99 0690 19 04-20
- Number of pins
4
- max. cross section
1.50 mm²
- Cross-section range
1.50 mm² (max)
- RoHS-compliant
Yes
IP67
- Series
814
Documents & Downloads
Datasheet
Datasheet 3215846 binder 99 0690 19 04-20 DIN connector Socket, straight Total number of pins: 4 + PE Series (round connectors): 814 1 pc(
User & Safety Instructions
User & Safety Instructions 3215846 binder 99 0690 19 04-20 DIN connector Socket, straight Total number of pins: 4 + PE Series (round connectors): 814 1 pc(
